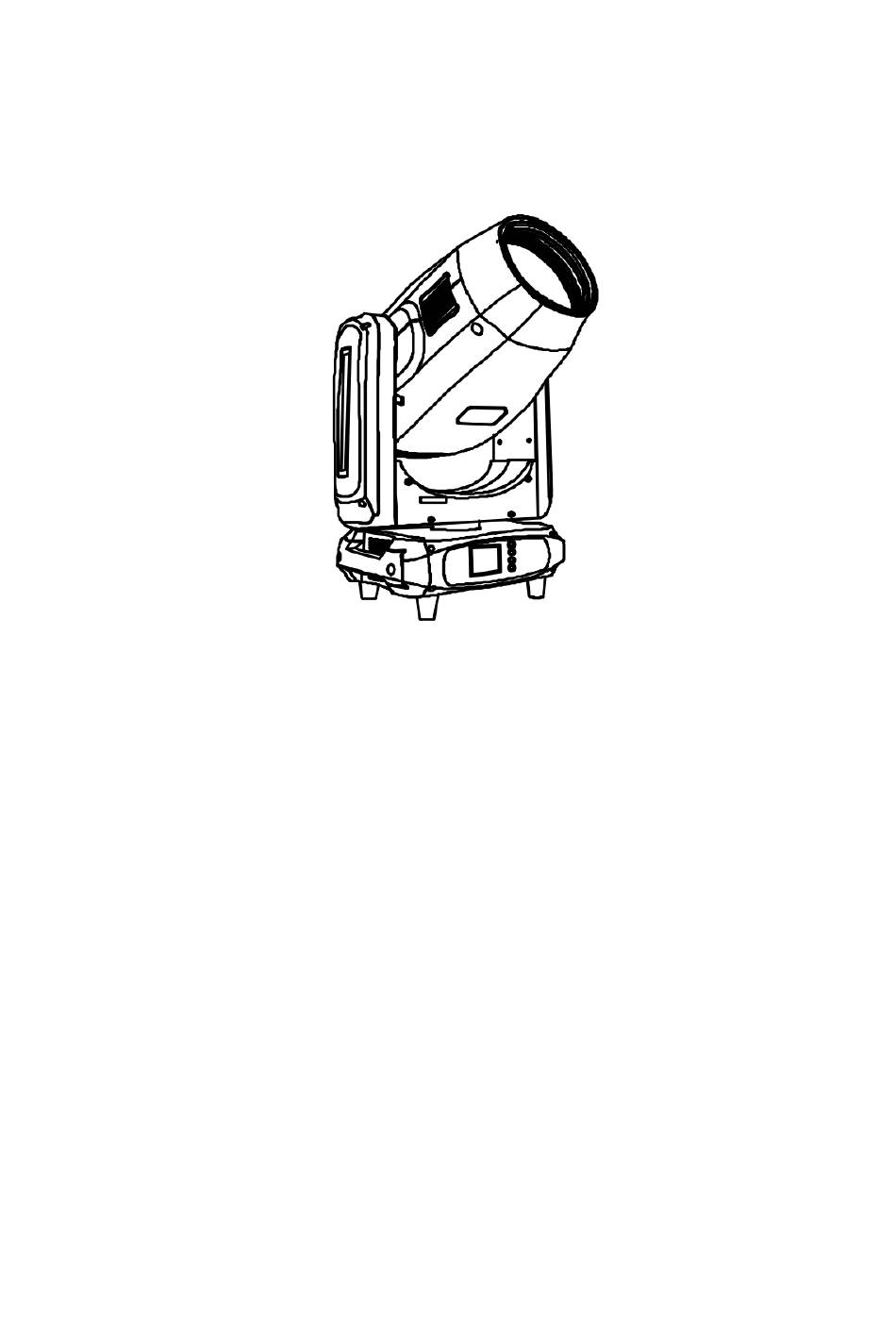

- Page 1 Matrix Hybrid CMY 350W LED CMY Hybrid Moving Head with CMY color mixing , Beam 4 degrees, 4-36 degrees zoom for Spot , C M Y For Wash,Beam/Spot/Wash, 3 in 1...
-
Page 2: Table Of Contents
Contents Instruction ---------------------------------------------------------------------------------------------2 ----------------------------------------------------------------------2 Application According to Purpose ---------------------------------------------------------------------------- ------------2 Indoor use only ----------------------------------------------------------------------------------------2 Safety operation 2 Lamp --------------------------------------------------------------------------------------------------3 3 Supply Voltages, Mains Cord and Connection to Mains ------------------------------3 Housing -------------------------------------------------------------------------------------------------4 Operating Environment ---------------------------------------------------------------------------4 Installation -------------------------------------------------------------------------------------------- 5 7 Operation ------------------------------------------------------------------------------------------- 6 -------------------------------------------------------------------------------------------- 6 Controls ---------------------------------------------------------------------------------------- 6... -
Page 3: Instruction
To be on the safe side and under the terms of the security, do not allow to restructure and modify this product. Please note that because of man-made damage caused by improper use, is beyond the scope of our warranty. This equipment pass strict inspection before shipment, please comply with the instruction manual operation requirements, to ensure the safe operation of the product under normal conditions. -
Page 4: Safety Operation
⚫ Make sure the equipment load-bearing structures can withstand the weight of more than 10 times when above ground installation ⚫ Disconnect with power supply before replacing lamp, fuse or other accessories ⚫ Only operation under electrical standards with leakage protection device A/C ⚫... -
Page 5: Housing
connect the product exclusively to 230 V, 50 Hz A/C! ⚫ Always ensure during installation, operation, transport and when storing the product that the mains cord is not exposed to possible mechanical damage, or damage caused by humidity, fluids, heat or cold! ⚫... -
Page 6: Installation
electric shocks! The product must be operated at altitudes ranging between 20m below and 3000m above sea level only! The product must not be operated during thunder storms; risk of destruction from surge voltages! The product must be operated at a minimum distance of 12 m to lit objects only! 6.Installation ATTENTION：... - Page 7 7.2Menu ⚫ Display LED BSW Moving Signal: NG Channel:24CH Mode: DMX Temp:25 System error reporting an error ◼ Signal：Show there is signal or not ◼ Channel：Show current channel ◼ Mode：Show current run mode ◼ Temp：Show current temperature ⚫ First page of menu R eturn 中...
-
Page 8: Menu Structure
◼ Return：back to display ◼ 中/EN：Press or ENTER to change the language ◼ Invert：For display invert ◼ Setup：Into menu ⚫ Menu structure Main menu Sub menu Parameter 001 - 512 Run mode DMX/Auto 1/Auto 2/Sound Channel mode 23CH Fixture ID 0-255 Pan Def Pos 0-255... -
Page 9: Channel
Backlighting time 15S/30S/60S/OFF Screen brightness 20%-100% Load default YES/NO Adjust Inset password Light correct Corresponding current Test 0-255 channel Return YES/NO Reset Head YES/NO Reset Reset XY YES/NO Reset All YES/NO Error message Error message Info DMX data Channel value Software version 01-01-01 Usage time... - Page 10 24CH 22CH Function DMX Value Function 0～255 X movement 0～540 degree Pan fine X fine 16bit 0～255 Tilt 0～255 Y movement 0～240 degree Tilt fine Y fine 16bit 0～255 XY speed From fast to slow 0～255 Dimmer From dark to bright 0～255 Strobe 0～3...
- Page 11 Gobo 3 shake from slow to fast 85～94 Gobo 4 shake from slow to fast 95～104 Gobo 5 shake from slow to fast 105～114 Gobo 6 shake from slow to fast 115～124 Gobo 7 shake from slow to fast 125～134 Gobo 8 shake from slow to fast 135～144 Gobo 9 shake from slow to fast...
- Page 12 fast Frost Frost out 0～127 Frost in 128～255 Focus Linear focus 0-100% from far to near 0～255 Zoom Linear zoom 0-100% from small to big 0～255 Reserved Reserved function 0～255 Function 100-150 Reset the effect motor over 6 seconds 151-200 Reset the effect motor over 6 seconds 201-255 Reset all over 6 seconds...
- Page 13 • Modular design for easy servicing and GOBO replacement Effects: • Zoom Range: 4 ~ 36-degrees • CTO: 3200k-8500k • Focus: Motorized • Frost effect for wash • Prism 1: Rotating 3-facet Circular • Prism 2: Rotating 6-facet Linear Rotating •...
- Page 14 • Full color display menu • Pan / Tilt Correction: Automatic • Pan / Tilt Lock • Pan / Tilt Range: 540˚ / 270˚ • Fine Tilt • Pan/Tilt Speed: Fast to Slow • Dimming & Fine Dimming: Electronic Electrical: •...
