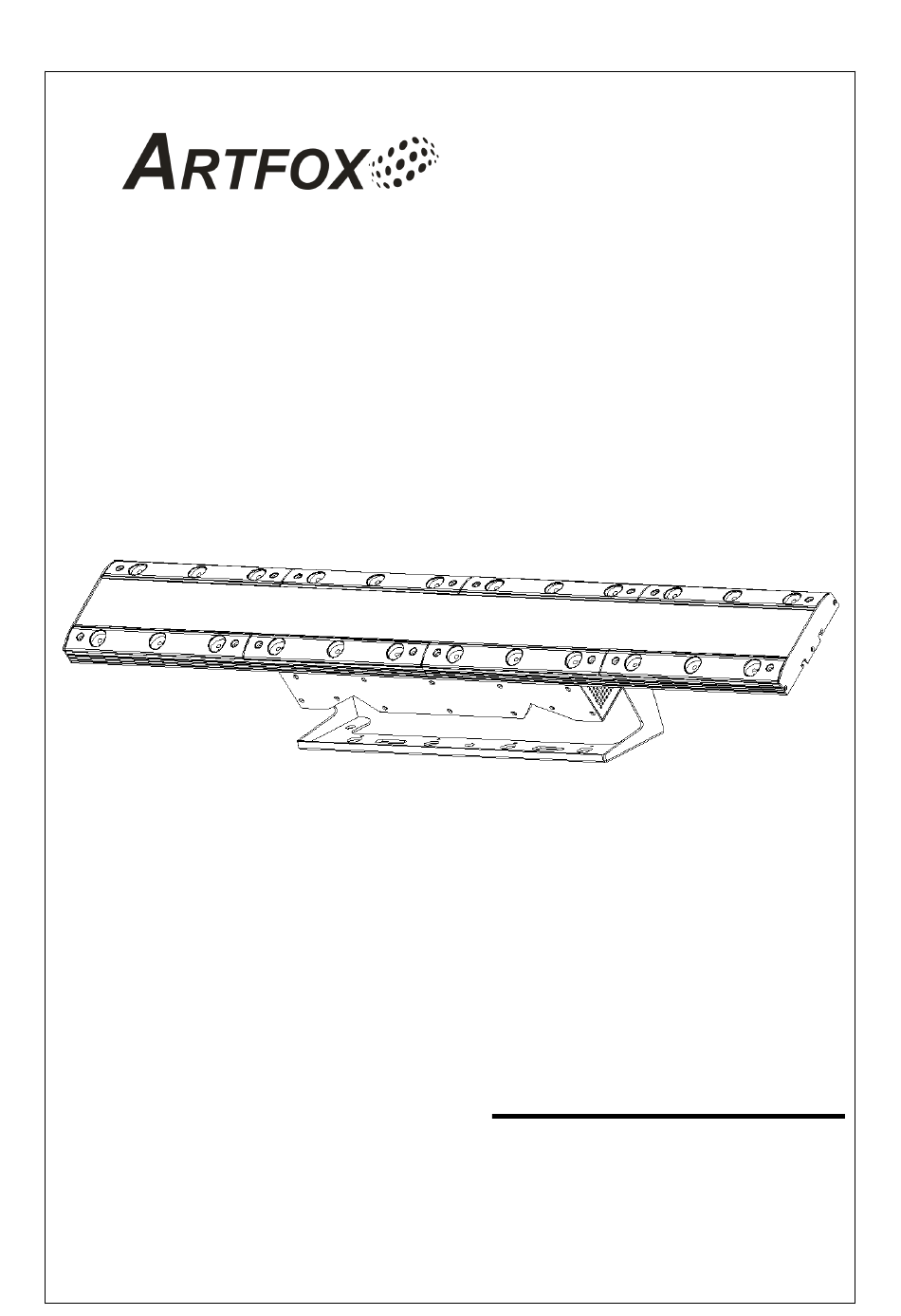

  • Page 1 Pixel Blinder Bar User Manual Please read the instructions carefully...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Safety Instructions ......................2 2. Technical Specifications ....................3 3. Accessories ........................4 4. Installation ........................4 5. How to set the unit ......................5 5.1 Control Panel ........................ 5 5.2 Main Functions ......................6 6. How to control the unit ....................6 6.1 Master/Slave Built-in Functions ..................
  • Page 3 Safety Introductions Please read the instructions carefully which includes important information about the installation, operation and maintenance. WARNING Please keep this User Manual for future consultation. If you sell the fixture to another user, be sure that they also receive this instruction booklet. The equipment is in good condition when leaving the factory.

  • Page 4: Technical Specifications

     In the event of serious operating problem, stop using the fixture immediately.  Do not open the lamp twice.  There are no user serviceable parts inside the fixture. Do not open the housing or attempt any repairs by yourself. ...

  • Page 5: Accessories

    3. Accessories Standard Accessories: 1. 1.5m POWERCON Power Cable x 1pc 2. 1.5m CAT5e Ethernet cable x 1pc Selectable Accessories 1. 1.5m POWERCON Power Connection Cable 4. Installation Assemble the units as the below picture:...

  • Page 6: How To Set The Unit

    5. How to set the unit 5.1 Control Panel 1. Display Panel：Display menu of various functions; 2. Buttons: MENU Go to menu selection DOWN Go to the next option Go back to the previous option ENTER Confirm the selected function 3.

  • Page 7: Main Functions

    5.2 Main Functions To select any functions, press MENU button until the required one is shown on the display. Select the function by ENTER button and the display will blink. Use DOWN and UP button to change the mode. Once the required mode has been selected, press ENTER button to setup or it will automatically return to the main functions without any change after idling 1 minute.
  • Page 8 DMX Address Press the MENU button up to when the DMX Address is shown on the display. Pressing the ENTER button and the display will blink. Use the DOWN and UP button to change the DMX 512 address. Once the address has been selected, press the ENTER button to setup or automatically exit menu mode without any change after 1minute.

  • Page 9: How To Control The Unit

    6. How to Control the Unit You can operate the unit in three ways: 1. By master/slave built-in preprogram function 2. By DMX controller 3. By ARTNET 6.1 Master/Slave Built In Preprogrammed Function By linking the units in master/slave connection, the first unit will control the other units to give an automatic, sound activated, synchronized light show.

  • Page 10: Artnet

    6.3 ArtNet Using multimedia software to control lamps through ArtNet, you must first select the 384 channel mode in the menu.Then confirm that the Eth-Net address is consistent with the multimedia server.If MAC addresses conflict, use random addresses. 6.4 DMX Channel Channel Mode:...

  • Page 13: Trouble Shooting

    7. Trouble shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The fixture does not work, no light Check the connection of power and main fuse. Measure the mains voltage on the main connector. Not responding to DMX controller DMX LED should be on.

  • Page 14: Fixture Cleaning

    8. Fixture Cleaning The cleaning of internal must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the fixture’ s optics Clean with soft cloth using normal glass cleaning fluid.
