Page 1: User Manual

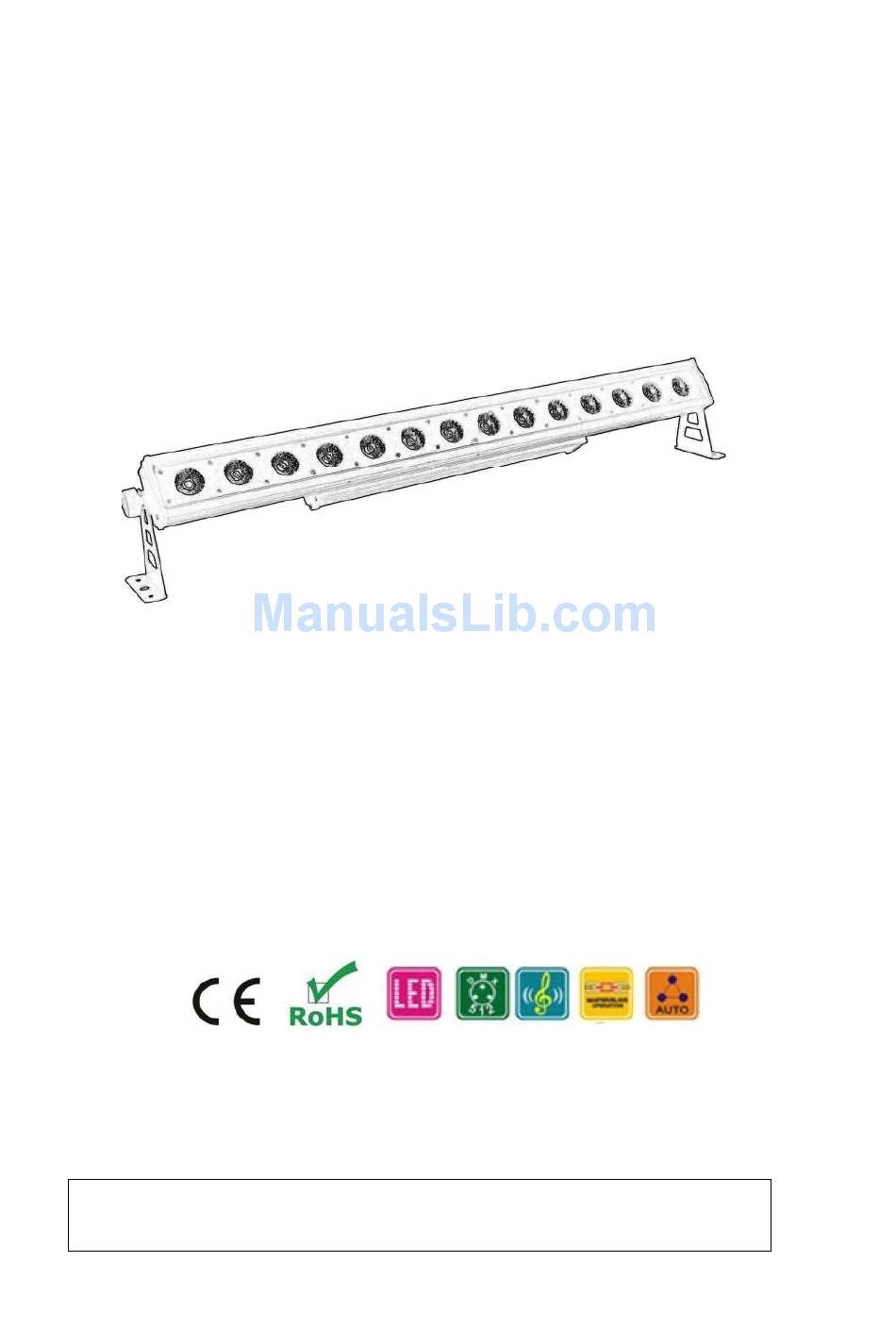

User Manual POWER SHINE 14QX 14x30W RGB This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. -
Page 2: Table Of Contents
CONTENTS 1. INSTRUCTION Unpacking Introduction AC Power Safety Instruction Cleaning 2. FEATURE 3. SET UP 3-Pin to 5-Pin Conversion Chart Setting up a DMX Serial Data Link Master/Slave Fixture Linking 4. OPERATING INSTRUCTIONS Operating modes Product overview Program Mode & Sound Mode Master-Slave Operation Master-Slave Connections and Settings DMX Mode... -
Page 3: Unpacking
LED WALL WASH LIGHT Introduction Unpacking: Thank you for purchasing our products. Every unit has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for any damage and be sure all accessories necessary to operate the unit has arrived intact. -
Page 4: Cleaning
C. The appliance has been exposed to rain or water. D. The appliance does not appear to operate normally or exhibits a marked change in performance. Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself, doing so will void your manufacturer warranty. -
Page 5: 3-Pin To 5-Pin Conversion Chart
Figure 3 XLR Pin Configuration Pin 1 = Ground Pin 2 = Data Compliment(negative) Pin 3 = Data True(positive) 3-Pin to 5-Pin Conversion Chart: Note! If you use a controller with a 5 pin DMX output connector, you will need to use a 5 pin to 3 pin adapter. The chart below details a proper cable conversion: 3-Pin to 5-Pin Conversion Conductor... -
Page 6: Product Overview
You can also have the unit strobe in this mode. • Master/Slave Mode- Using the Master unit, choose your desired mode or program and connect the “Slave” unit or units, All slaves will now follow the“Master” unit. But only one master. •... - Page 7 2. KEY AND DISPLAY FUNCTIONS 2.1. Key instruction MENU： Table1 function loops add； UP： function value add； DOWN： function value decrease； ENTER： save the setting； 2.2. Display instruction Show Function CH6/CH9/CH3 4 modes 3/CH61 d001 DMX Address，Press twice Enter to confirm r255 Red Dimming, From dark to light G255...
- Page 8 Channel DMX Value Function 000-255 RGB Total Dimming, From dark to light 000-255 Strobe , from slow to fast 0-25 Open 26-35 Built-in programe 1 36-45 Built-in programe 2 46-55 Built-in programe 3 56-65 Built-in programe 3 66-75 Built-in programe 4 76-85 Built-in programe 5 86-95...
- Page 9 1# Green Dimming, From dark to light 000-255 000-255 1# Blue Dimming, From dark to light 2# Red Dimming, From dark to light 000-255 000-255 2# Green Dimming, From dark to light 000-255 2# Blue Dimming, From dark to light 000-255 3# Red Dimming, From dark to light 000-255...
