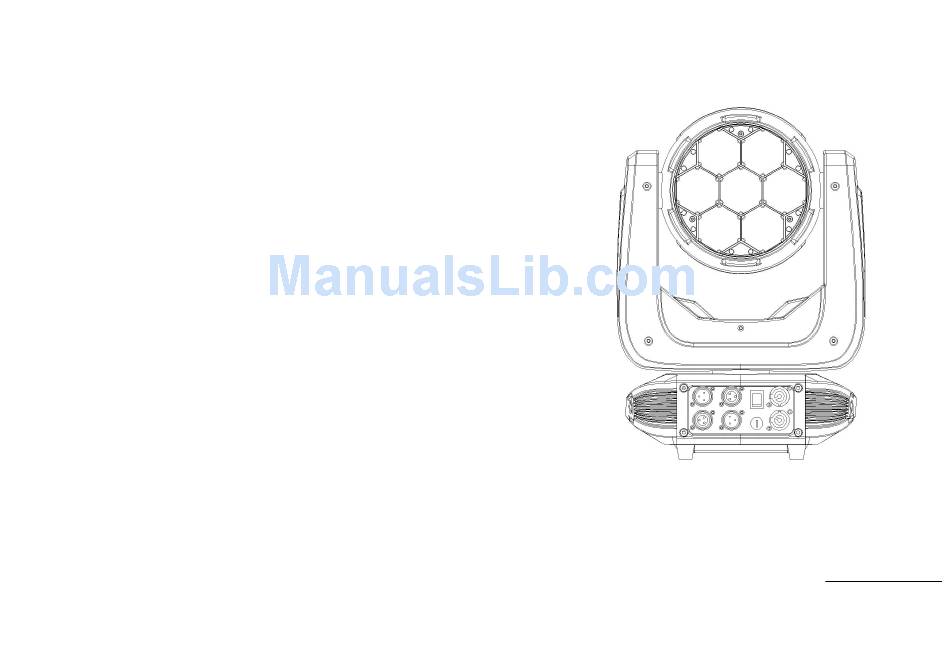

- Page 1 KingWash 7QX 7x40w,Zoom 5-60degree User manual Please read the instructions carefully before use TABLE OF CONTENTS...
- Page 2 1. Safety Instructions..................... 2 2. Technical Specifications...................4 3. How To Control The Unit..................5 4. shape.......................... 9 5. Trouble shooting......................12 6. Fixture Cleaning...................... 13 statement product well capability intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included guarantee,...
- Page 3 blocked. Disconnect main power before replacement or servicing. Make sure there are no flammable materials close to the unit while operating as it is fire hazard. Use safety cable when fixes this unit. DO NOT handle the unit by taking its head only, but always by taking its base.
- Page 4 2. Technical Specifications Clean the external optics at least every 20 days. Clean the internal optics at The ARTFOX KingWash 7QX features 7x40W RGBW Quad Osram LEDs,It least every 30/60 days. features most power mutil-chip quad-color, Whats more, It features advanced zoom optical system, which range from 5-60 degrees .
- Page 5 DMX:19/27 chs 5. Trouble shooting CONTROL / CONNECTIONS Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: DMX Channel Modes ( 17chs) Stand-alone mode and Master/Slave modes A. The unit does not work, no light and the fan does not work 4 Button Touch Control Panel 1.
- Page 6 3 pin XLR connectors: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal Display: MENU To select the programming functions DOWN To go backward in the selected functions To go forward in the selected functions ENTER To confirm the selected functions Set DM X Address Code Press "Menu"...
- Page 7 Run Mode 3.Sound 1.Master 2.Alone 1.Pan 1.Yes Pan forward or 2.No reversed setting 2.Tilt 1.Yes Reverse Tilt forward or 2.No reversed setting 3.Display 1.Yes Display forward or 2.No reversed setting Channel 17 channels 17 channel mode Pan angle 540°/360° Pan Degree Rotation Mic sense 001-100...
- Page 8 Every 16 dmx value each 3.Focus Zoom fine control 17----255 color No function 0----49 DMX channel´s functions and values (17 DMX channels): Ch 15 Moving color Skip change 50----99 Gradual change 100----255 17 channel mode： Speed of Ch 16 from fast to slow 0----255 Channel Function Description...
