Advantech B+B SmartWorx 485DRCI-PH Quick Start Manual

6
Troubleshooting
Connecting a Signal Ground
(common, reference) on the RS-422/485 side.
The specifications for most RS-422 and RS-485
devices indicate that the device can withstand a
maximum VCM of -7 Volts to +12Volts. The function of
the GND connection is to tie the signal grounds of all
nodes on a network to one common ground potential.
This ensures that the common mode voltage cannot
exceed the specified value.
A signal ground is required on Model 485DRCI-PH
because it is an optically isolated device. If you do not
have a signal ground (common, reference) on your
RS-422/485 device, you can connect to the DC power
ground of your RS422/485 device.
Caution: Make sure that this is connected correctly.
Note: Do Not use the shield drain wire as the signal
ground between RS-422/485 devices.
7
UL Class 1/Div. 2 Information
SUITABLE FOR USE IN CLASS I, DIVISION 2, GROUPS
A, B, C AND D HAZARDOUS LOCATIONS, OR
NONHAZARDOUS LOCATIONS ONLY.
CONVENANT À L'EMPLOI DANS LES SITES DANGEREUX
DE CLASSE I, DIVISION 2, GROUPES A, B, C ET D, OU
DANS LES SITES NON HASARDEUX SEULEMENT.
WARNING - EXPLOSION HAZARD - SUBSTITUTION OF
ANY COMPONENT MAY IMPAIR SUITABILITY FOR CLASS
I, DIVISION 2.
ATTENTION - DANGER D'EXPLOSION - LA
SUBSTITUTION DE COMPOSANTS PEUT ENTRAÎNER
UNE ADÉQUATION À LA CLASSE I, DIVISION 2.
WARNING - EXPLOSION HAZARD - DO NOT
DISCONNECT EQUIPMENT WHILE THE CIRCUIT IS
LIVE OR UNLESS THE AREA IS KNOW TO BE FREE OF
IGNITABLE CONCENTRATIONS.
Document Number – 710-10773-00_r2_485DRCI-PH_2118qsg
ATTENTION - DANGER D'EXPLOSION - LA SUBSTITUTION DE
COMPOSANTS PEUT ENTRAÎNER UNE ADÉQUATION À LA
CLASSE I, DIVISION 2.
Field wiring connections must be made using 105 °C minimum
copper supply wires.
Les connexions de câblage sur site doivent être réalisées en
utilisant des câbles d'alimentation en cuivre de 105 °C minimum.
To be installed in accordance with control drawing 8512r001.
Pour être installé conformément au dessin de contrôle 8512r001.

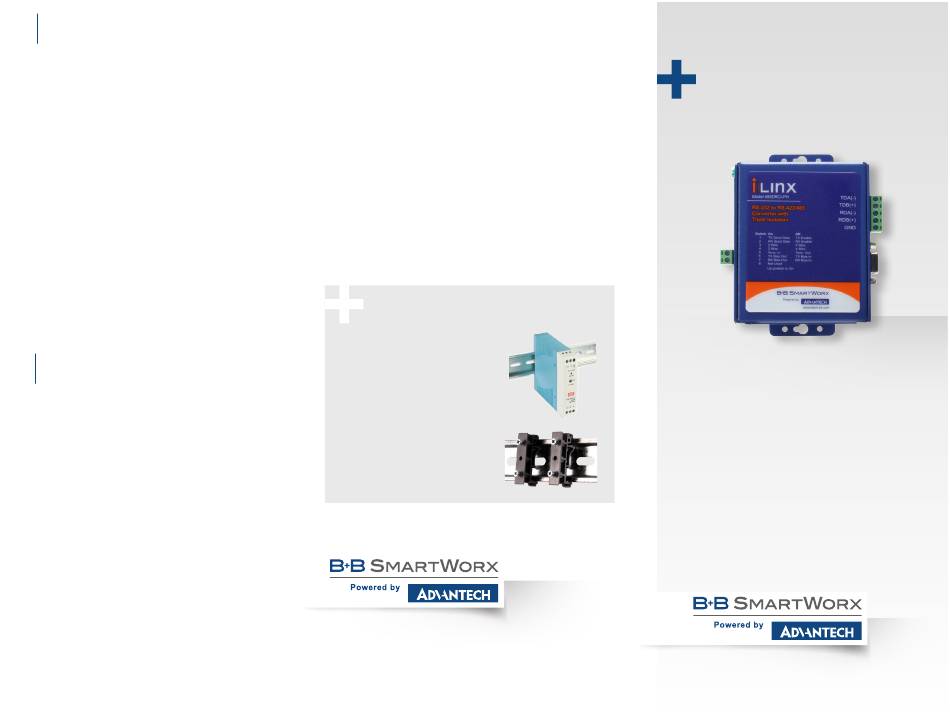

Recommended Accessories
Power Supply
Model# MDR-20-24
DIN RAIL ADAPTER
Model# DRAD35
1 (888) 948-2248 | Europe: +353 91 792444
advantech-bb.com
707 Dayton Road | PO Box 1040 | Ottawa, IL 61350
Phone: (815) 433-5100 | Fax: (815) 433-5109
www.advantech-bb.com | E-mail: support@advantech-bb.com
QUICK START
GUIDE

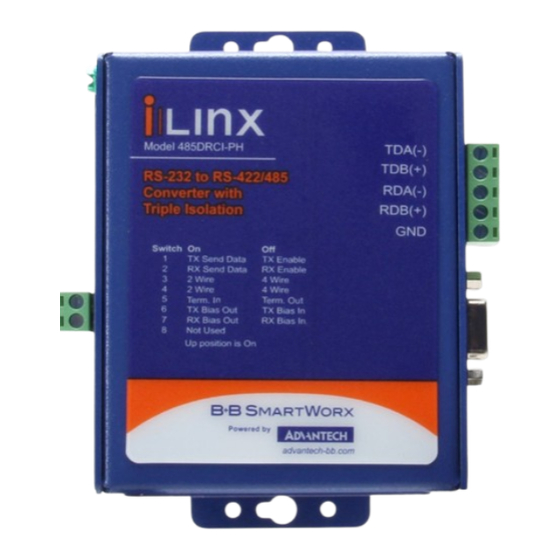

Model 485DRCI-PH
3-Way Isolated RS-232 to
RS-422/485 Converter
Before you begin, be
sure you have the following:
+ 485DRCI-PH Converter
+ 10 to 48VDC Power Supply
www.advantech-bb.com
Fast and easy on the web:
