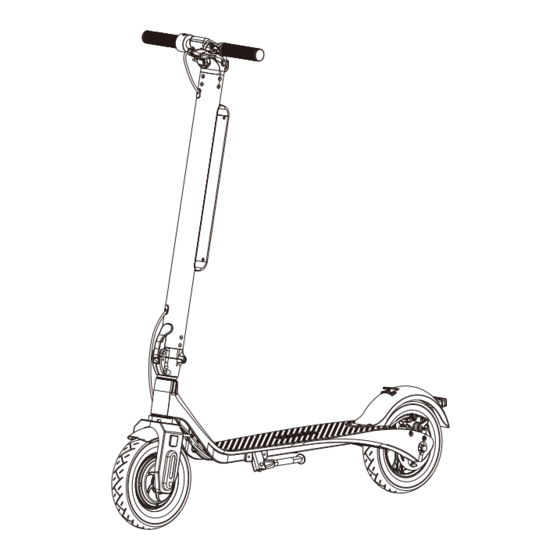

TurboAnt X7 Max User Manual

Folding electric scooter
Hide thumbs Also See for X7 Max:
Table of Contents

Advertisement

Quick Links

Email: support@turboant.com
Website: www.turboant.com
Made in China

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X7 Max and is the answer not in the manual?

Questions and answers

Related Manuals for TurboAnt X7 Max

Summary of Contents for TurboAnt X7 Max

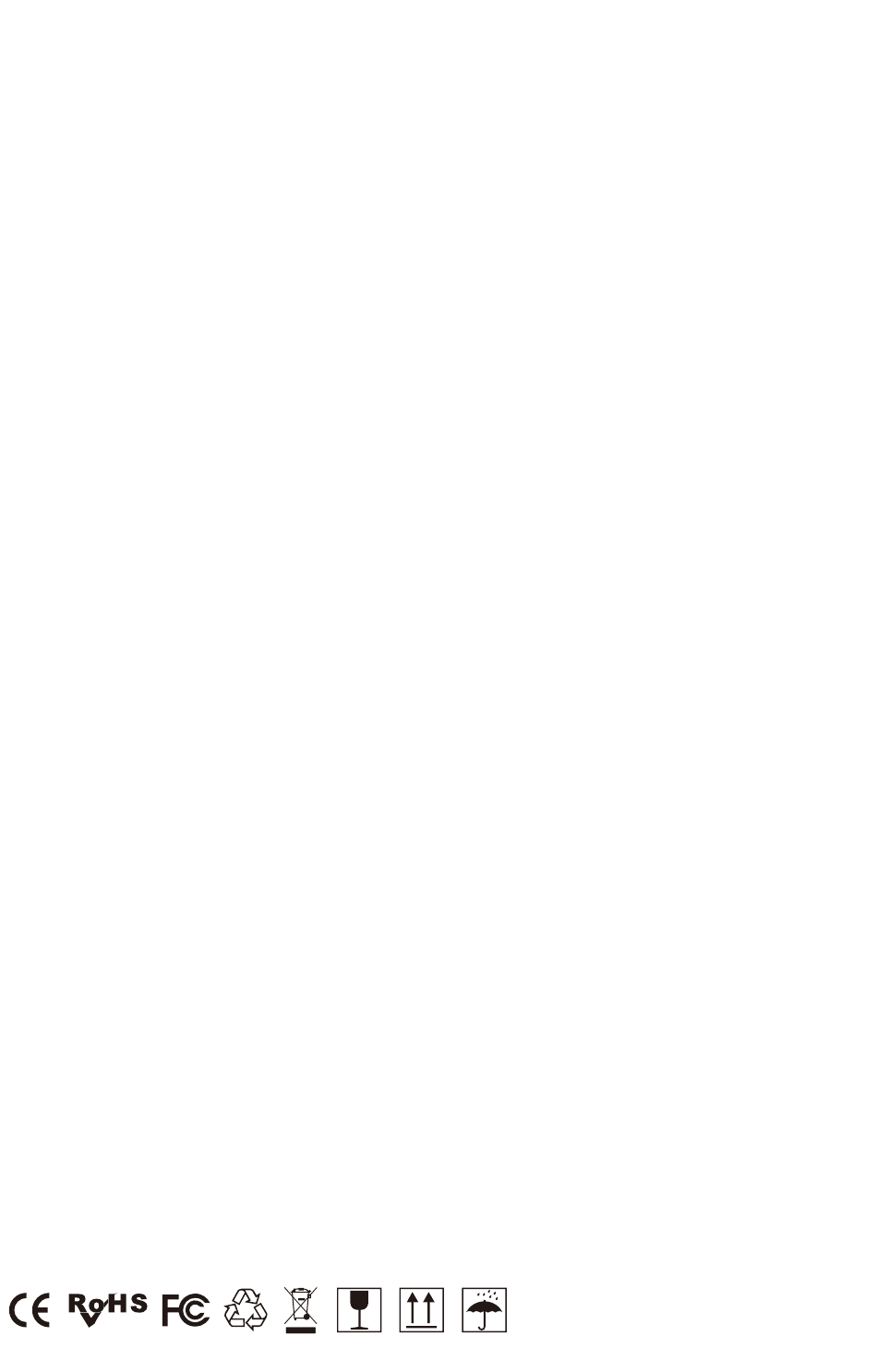

  • Page 1 Email: support@turboant.com Website: www.turboant.com Made in China...
  • Page 2 Folding Electric Scooter X7 Max User Manual...

  • Page 3: Important Safety Instructions And Guidelines

    Thank you for purchasing this product. To avoid injury to the user and others, be sure to observe the following safety instructions and guidelines. Keep this information for future reference. Introduction Featuring 10'' tubed pneumatic tires, this scooter gives you a smooth riding experience. Its powerful 350 watt motor and 36 V battery enable a speed of up to 20 mph with a range of up to 32 miles.

  • Page 4: Package Contents

    The scooter is only suitable for riding by a single person. Do not ride under the influence of drugs or alcohol. The maximum load is 275 lb (125 kg). Do not use a cell phone or listen to music when riding the e-scooter.

  • Page 5: Technical Specifications

    Technical Specifications 45.3 x 16.5 x 49.2 in Unfolded Size (1150 x 420 x 1250 mm) 45.3 x 16.5 x 20.1 in Folded Size (1150 x 420 x 510 mm) Product Information Ground Clearance 5.3 in (135 mm) Product Weight 34.2 lb (15.5 kg) Adapter Input Voltage 100-240 V AC, 50/60 Hz...

  • Page 6: Battery Specifications

    Battery Specifications Type Li-ion Charging Time Approx. 6 hours Voltage 36 V Capacity 10 Ah, 360 Wh Operating Temperature 32 to 113 °F (0 to 45 °C) Charging Temperature 32 to 113 °F (0 to 45 °C) Max Charging Voltage/Current 42 V, 2 A Storage Temperature -4 to 104 °F (-20 to 40 °C)

  • Page 7: Product Overview

    Product Overview Throttle LED Display Brake Lever Handlebar Hook LED Headlight Battery Lock Battery Pack Stem Stem Folding Spanner Anti-skid Deck Mudguard Motor Taillight Kickstand Disc Brake Controls Overview Hall Cable (Black) Brake Cable (Red) Function Button Brake Lever Power Button Bell Throttle LED Display...

  • Page 8: Controls Description

    Current Speed Cruise Mode Icon Speed Unit Battery Status Km/h Speed Level Icon Light Icon LED Display Note: If there is no operation within 10 minutes, the scooter will automatically turn off with a "beep" sound. Controls Description Control Operation Press and hold on the power button for 1 second or longer to turn Power On/Off on/off the scooter.
  • Page 9 Operating Instructions Assembly 1. Press down the mudguard and slide the stem out of the mudguard hook. 2. Lift the stem up completely and then lift up the stem folding spanner to secure the stem. 3. Install the brake lever in place on the left side of the LED display with the provided tool.
  • Page 10 Stem Folding 1. Pull up the safety lock while pressing down the folding spanner. 2. Lower down the stem, press down the mudguard, and slide the stem into the mudguard lock.
  • Page 11 Battery Removal 1. Insert the key into the key hole on the right side of the stem and rotate the key anti-clockwise. 2. Hold the upper part of the battery pack and pull it out while holding the key in the anti-clockwise position. 3.
  • Page 12 Battery Installation 1. Align the groove at the bottom of the battery pack with the raised part on the stem. 2. Push the upper part of the battery pack into the stem until you hear a "click" sound. Then pull out the key.

  • Page 13: Battery Maintenance

    (0 to 45 °C), and performs worse when below 32 °F (0 °C). For instance, when the temperature is below -4 °F (-20 °C), the actual mileage will only be half or less than listed. When the tempera- ture rises, the mileage will restore. Note: A fully charged TurboAnt Electric Scooter will last for 120-180 days.

  • Page 14: Battery Charging

    Battery Charging Charging the Installed Battery 1. Remove the charging port cover at the bottom of the stem. Make sure the charging port is dry and free of dust. 2. Connect the charging adapter. 3. The battery is fully charged when the indicator light of the charging adapter turns from red to green.

  • Page 15: Maintenance

    Maintenance 1. Make sure the scooter is turned off and the power adapter is disconnected. 2. Wipe clean the scooter with a damp cloth. Never use lubricating oil on the body and do not immerse it in water. Storage 1. Fully charge the scooter before storing, and charge it at least once a month to prevent premature decay of the battery capacity.
  • Page 16 After confirming that the charging adapter is functioning, connect the charging adapter to the AC power source and the charging port on the stem. 1. If the indicator light turns red, then charging The battery power is full is normal and the battery is in good working or the battery has failed.

  • Page 17: Frequently Asked Questions (Faqs)

    Frequently Asked Questions (FAQs) 1. What is the optimum tire pressure when riding this scooter? The recommended tire pressure is between 31.9-34.8 psi (220-240 kPa). Please pump up the tires to this pressure. 2. The headlight cannot be turned on. How can I solve this problem? If the headlight won’t turn on, please verify that the scooter is turned on.

  • Page 18: Environmental Protection

    9. Why can’t my mileage reach 32 miles? The max listed mileage is 32 miles, which is measured under the following conditions: the scooter is ridden with the second speed level, 41.8 V full power battery, a load of 165 lb (75 kg), temperature of 77 ℉...
