TurboAnt X7 Max Manual

Introduction

Featuring 10" inner honeycomb tires, this scooter gives you a smooth riding experience. ts powerful 350 watt motor and 36 V battery enable a speed of up to 20 mph with a range of up to 30 miles. The reinforced frame reliably supports a body weight of up to 275 lb.

Package Contents

1 x Folding Electric Scooter
1 x Charging Adapter
1 x M5 Hexagon Wrench
1 x User Manua
2 x Keys (including 1 spare key)

Technical Specifications

Notes

1. Max speed values stated in the user manual depend on the road conditions and the load. Values stated on the rating label are related to average conditions.
2. Mileage is tested under the following conditions: the scooter is driven with the second speed level, 41.8V full power battery, a load of 165 lb (75 kg),temperature of 77°F(25°C), humidity of 70%, gentle breeze, and flat, dry road conditions. Actual results may vary. If the load exceeds 275 lb (125 kg), the mileage and speed may be decreased, which can affect the riding experience.
3. Please ride safely within the maximum speed limit set by local traffic officials. Everyone should strictly abide by all traffic rules and regulations.

Battery Specifications

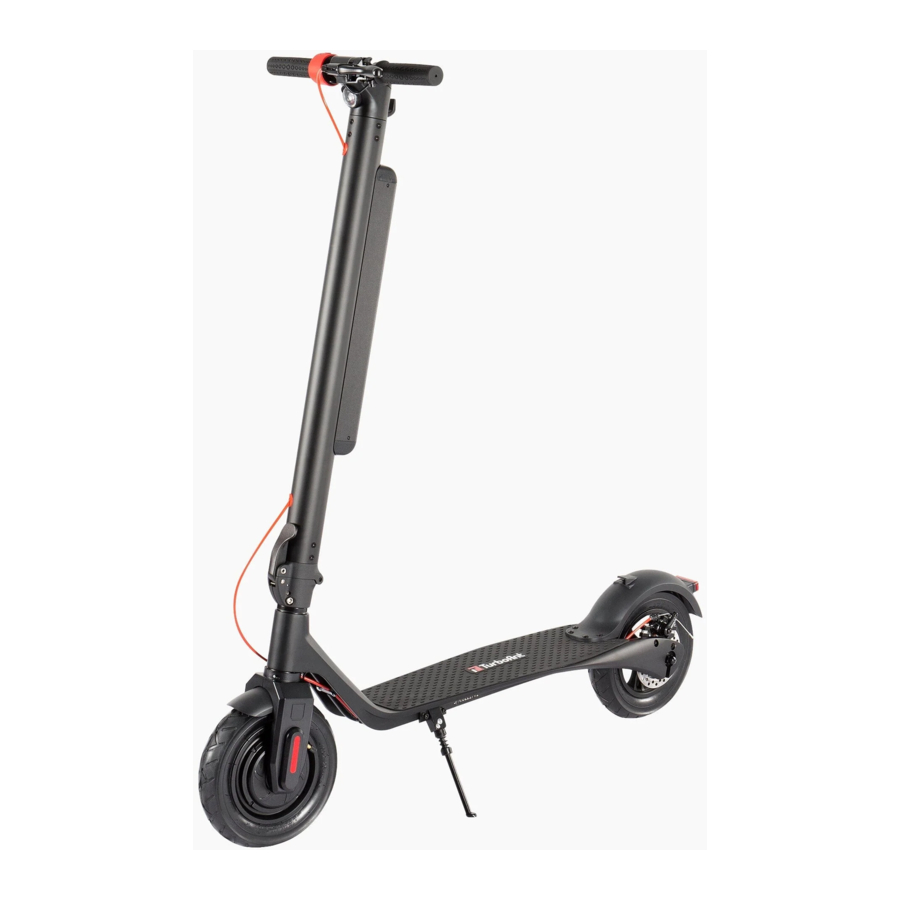

Product Overview

Controls Overview

Note: If there is no operation within 10 minutes, the scooter will automatically turn off with a "beep" sound.

Controls Description

Operating Instructions

Assembly

1. Press down the mudguard and slide the stem out of the mudguard hook.

2. Lift the stem up completely and then lift up the stem folding spanner to secure the stem.

3. Install the brake lever in place on the left side of the LED display with the provided tool.

4. Install both handlebars by turning inwards.


Stem Folding

1. Pull up the safety lock while pressing down the folding spanner.

2. Lower down the stem, press down the mudguard, and slide the stem into the mudguard lock.


Battery Removal

1. Insert the key into the key hole on the right side of the stem and rotate the key anti-clockwise.

2. Hold the upper part of the battery pack and pull it out while holding the key in the anti-clockwise position.

3. Lift up the battery pack and remove it off the stem.


Battery Installation

1. Align the groove at the bottom of the battery pack with the raised part on the stem.

2. Push the upper part of the battery pack into the stem until you hear a "click" sound. Then pull out the key.


Battery Maintenance

1. Only use the original battery pack. Misuse of other models or brands can cause safety issues.
2. Only use the original power adapter to avoid potential damage, electric shock, or fire.
3. Mishandling of used batteries can cause tremendous harm to the environment. To protect the natural environment, please fol ow local regulations to properly dispose of used batteries.
4. Do not place the battery in an environment where the ambient temperature is higher than 104°F(40°C) or lower than -4°F(-20°C) (e.g., do not leave the scooter or the battery pack in a car under direct sunlight for an extended time).
5. Do not leave the battery pack near a heat source, such as a stove, and do not throw the battery pack into fire. Doing so may result in overheating, explosion, or fire.
6. After every use, fully charge the battery to prolong its lifespan.
7. If the scooter is expected to be left unused for more than 30 days, please fully charge the battery and place it in a dry and cool place. Keep in mind to recharge the battery every 30 days to protect it from potential damage, which is beyond the coverage of our limited warranty. Always charge before exhausting the battery to prolong the battery s lifespan.
8. The battery pack performs better within the normal temperature range of 32 to 113°F (0 to 45°C), and performs worse when below 32°F(0°C). For instance, when the temperature is below -4°F(-20°C), the actual mileage will only be half or less than listed. When the temperature rises, the mileage will restore.
   Note: A fully charged TurboAnt Electric Scooter will last for 120-180 days.
9. The built-in intelligent chip will keep a log of its charging and discharging records. The damage caused by prolonged periods without charging is irreversible and is beyond the coverage of our limited warranty. Once the damage is done, the battery cannot be recharged.

Riding the Scooter

1. Wear protective gear such as a helmet.
2. Press and hold on the power button for 1 second or longer to turn on the scooter.
3. Place one foot on the middle of the deck and use the other foot to build up some momentum.
4. Gently press down the throttle to accelerate.
5. Squeeze the brake lever to brake.

Battery Charging

Charging the Installed Battery

1. Remove the charging port cover at the bottom of the stem. Make sure the charging port is dry and free of dust.
2. Connect the charging adapter.
3. The battery is fully charged when the indicator light of the charging adapter turns from red to green.
4. Close the charging port cover after charging the battery.

* The scooter cannot be turned on if it is connected to the charging cable, even if the cable is unpowered. When turning on the scooter, please completely remove the cable.

Charging the Removed Battery

1. Remove the battery (> Battery Removal).
2. Open the charging port cover at the bottom of the battery. Make sure the charging port is dry and free of dust.
3. Connect the charging adapter.
4. The battery is fully charged when the indicator light of the charging adapter turns from red to green.
5. Close the charging port cover after charging the battery.

Only use the original charging adapter to charge the scooter.

Maintenance

1. Make sure the scooter is turned off and the power adapter is disconnected.
2. Wipe clean the scooter with a damp cloth. Never use lubricating oil on the body and do not immerse it in water.

Storage

1. Fully charge the scooter before storing, and charge it at least once a month to prevent premature decay of the battery capacity.
2. Do not charge the battery if the temperature is below 32°F(0°C).
3. Keep the scooter in a dry, ventilated, and cool area awayfrom direct sunlight, rain, and high humidity, and cover the scooter to protect it from dust.
4. The kickstand is designed to provide structural support, so avoid standing on the scooter while the kickstand is down, as this can cause the kickstand to crack or break.

General Troubleshooting and Solution Guide

Frequently Asked Questions (FAQs)

1. The headlight cannot be turned on. How can I solve this problem?
   If the headlight won't turn on, please verify that the scooter is turned on. When the scooter is turned on, short press the function button to see whether the headlight functions. Also, check to ensure that the lamp holder is not clogged with dust. If the lamp holder is not clogged with dust, and the headlight still will not turn on, it may need to be replaced. Please contact our customer support center for help.
2. What should I do if the scooter's stem is swaying while riding the scooter?
   Immediately stop riding the scooter. Verify that the screws that connect to the folding spanner and other screws on the stem are wel tightened. If not, tighten the screws using the hexagona wrench. Periodically tightening the screws on the scooter may be necessary.
3. What should I do if the brakes are not functioning properly?
   1. Turn on the scooter. Don't stand on the deck. Tilt the scooter to lift the front wheel and manually rotate the wheel. Then, press down the throttle to accelerate, and the front wheel should start to rotate. Next, hold the brake lever. If the front wheel stops rotating, the EBS (Electronic Braking System) is functioning properly. If the front wheel does not stop rotating, the Electronic Braking System may be faulty. Please contact our customer support center for help.
   2. Turn off the scooter, tilt the scooter, and manually rotate the rear wheel. Then, hold the brake lever. If the rear wheel stops rotating and there is no grinding noise, the disc brake is functioning properly. If there is a grinding noise on the brake, the disc brake may be faulty. Please contact our customer support center for help.
4. Why does the battery life decrease over time?
   The lithium-ion battery capacity will naturally degrade after 500 charge/discharge cycles. The battery performs better when within the normal temperature range of 32 to 95°F(0 to 35°C) and performs worse when below 32°F(0°C). For instance, when the temperature is below -4°F (-20°C), the actual mi eage will only be half or less than listed.
5. Why has my motor suddenly stopped working?
   The reason may be that the controller has malfunctioned, and needs to be replaced. Please contact our customer support center for help and repair.
6. When I press down the throttle, why doesn't the motor function properly?
   It could be that there is a Hall wire malfunction with the Electronic Braking System. Please check to see if the wire terminals of the brake lever and the panel are loose, and whether the brake lever has been damaged.
7. Why can't my mileage reach 30 miles?
   The max listed mileage is 30 miles, which is measured under the following conditions: the scooter is ridden with the second speed level, 41.8 V full power battery, a load of 165 lb (75 kg), temperature of 77°F(25°C), humidity of 70%, gentle wind, and flat, dry road conditions. Actua mi eage may depend on a variety of factors including battery status, load, temperature, wind speed, road conditions, riding habits, and more.

Important Safety Instructions and Guidelines

Safety Checks

• Ensure the wiring and cables around the handlebar are not twisted, and that the throttle is on the right side while riding the electric scooter.
• Make sure that no parts are damaged or have been modified.
• Make sure that the stem has been secured properly.
• Make sure that Hall cable (black) and brake cable (red) under the brake lever are connected correctly and the brakes operate properly.
• Make sure the battery is fully charged (the indicator light turns green).
• Test whether the scooter can be turned on/off.
• Make sure that the front and rear lights function properly in the dark.
• Children under 14 years old should be supervised by an adult.

Safety Guidelines

	RISK OF BATTERY EXPLOSION! Do not use the battery if it is damaged or has been modified. Do not expose to heat exceeding 95°F(35°C). Only use the original charging adapter.
	Wear protective gear such as a helmet.
	Do not ride the scooter in wet conditions.
	The scooter is only suitable for riding by a single person.
	Do not ride under the influence of drugs or alcohol.
	The maximum load is 275 b (125 kg).
	Do not use a cel phone or listen to music when riding the e-scooter.
	Check your local traffic regulations whether riding an e-scooter in traffic is legal or not in your area.
	Turn on the lights in the dark.
