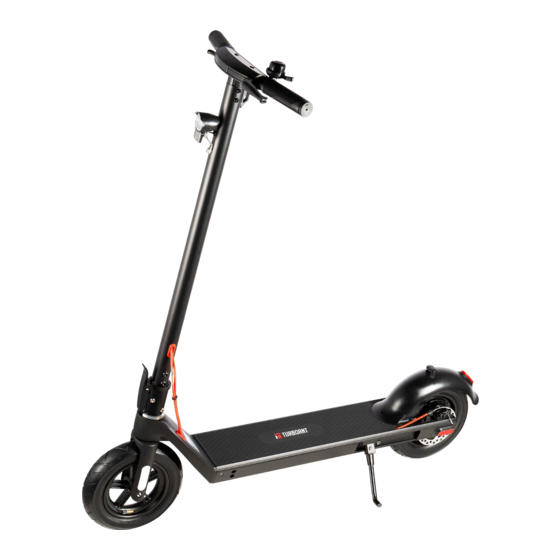

TurboAnt M10 Lite User Manual

Folding electric scooter
Hide thumbs Also See for M10 Lite:
Table of Contents

Advertisement

Quick Links

Download this manual
Email: support@turboant.com
Website: www.turboant.com
Made in China

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M10 Lite and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TurboAnt M10 Lite

Summary of Contents for TurboAnt M10 Lite

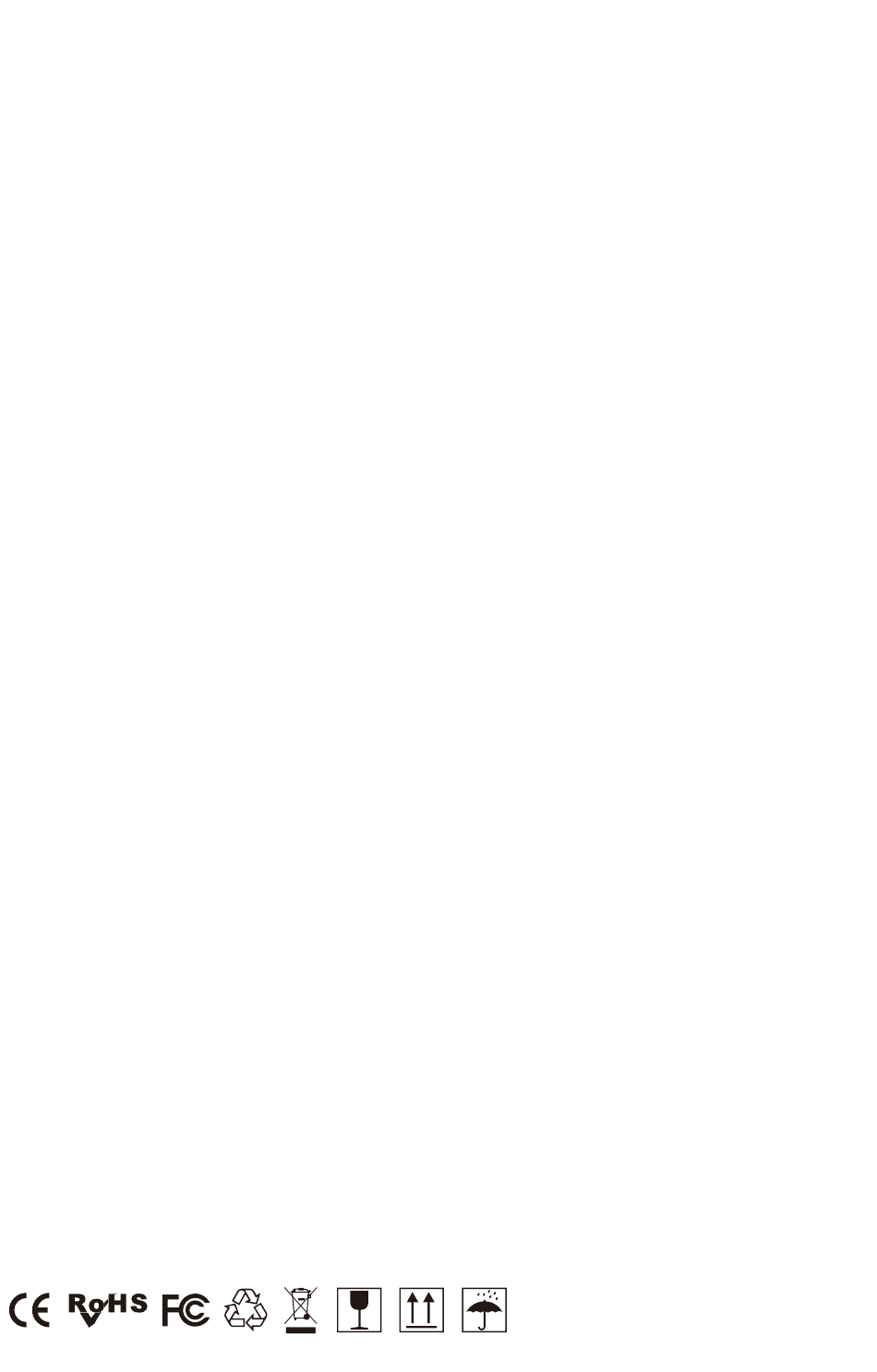

  • Page 1 Email: support@turboant.com Website: www.turboant.com Made in China...
  • Page 2 Folding Electric Scooter M10 Lite User Manual...

  • Page 3: Important Safety Instructions And Guidelines

    Thank you for purchasing this product. To avoid injury to the user and others, be sure to observe the following safety instructions and guidelines. Keep this information for future reference. Introduction Featuring 8.5'' tubed pneumatic tires, this scooter gives you a smooth riding experience. Its powerful 350 watt motor and 36 V battery enable a speed of up to 16 mph with a range of up to 15.5 miles.

  • Page 4: Package Contents

    The scooter is only suitable for riding by a single person. The maximum load is 220 lb (100 kg). Do not ride under the influence of drugs or alcohol. Do not use a cell phone or listen to music when riding the e-scooter.

  • Page 5: Technical Specifications

    Technical Specifications 44.49 x 19.69 x 45.87 in Unfolded Size (1130 x 500 x 1165 mm) 44.49 x 19.69 x 20.48 in Folded Size (1130 x 500 x 520 mm) Product Information Ground Clearance 3.15 in (80 mm) Product Weight 30.86 lb (14 kg) Adapter Input Voltage 100-240 V AC, 50/60 Hz...

  • Page 6: Battery Specifications

    humidity of 70%, gentle breeze, tire pressure of 45 psi (310 kPa), and flat, dry road conditions. Actual results may vary. If the load exceeds 220 lb (100 kg), the mileage and speed may be decreased, which can affect the riding experience. 3.

  • Page 7: Product Overview

    Product Overview LED Display Brake Lever Throttle Handlebar USB Charging Port (for Phone) Hook Stem Headlight Stem Folding Spanner Stem Safety Latch 8.5-Inch Pneumatic Tire Anti-skid Deck Motor Mudguard Hook Mudguard Charging Port (for Scooter) Kickstand Taillight Disc Brake Controls Overview Brake Cable (Red) Hall Cable (Black) LED Display...

  • Page 8: Controls Description

    Light Icon Battery Status Current Speed Speed Level Motor Icon LED Display Note: If there is no operation within 10 minutes, the scooter will automatically turn off with a "beep" sound. Controls Description Control Operation Press and hold on the power button for 1 second or longer to turn Power On/Off on/off the scooter.
  • Page 9 Operating Instructions Assembly Tools needed 1 x M4 Allen Wrench 2 x M2.5 Allen Wrenches 4 x M6*10 Screws 4 x M4*10 Screws 4 x Mudguard Plugs • Open the kickstand and keep the e-scooter steady on the ground. • Connect the head wire and stem wire. •...
  • Page 10 • Adjust the scooter head and align the screw holes. • Secure the head by installing and tightening the M6x10 screws. • Secure the mudguard by installing and tightening the M4x10 screws. • Cover the screws with the mudguard plugs. Make sure to align the mudguard plugs’ opening with the raised part next to each screw and push in to secure the plugs (use the shorter plugs for the front screws and longer plugs for the side screws).

  • Page 11: Battery Maintenance

    (0 to 45 °C), and performs worse when below 32 °F (0 °C). For instance, when the temperature is below -4 °F (-20 °C), the actual mileage will only be half or less than listed. When the tempera- ture rises, the mileage will restore. Note: A fully charged TurboAnt Electric Scooter will last for 120-180 days.

  • Page 12: Battery Charging

    Battery Charging Charging the Installed Battery 1. Remove the charging port cover under the deck. Make sure the charging port is dry and free of dust. 2. Connect the charging adapter. 3. The battery is fully charged when the indicator light of the charging adapter turns from red to green.

  • Page 13: Maintenance

    Maintenance 1. Make sure the scooter is turned off and the power adapter is disconnected. 2. Wipe clean the scooter with a damp cloth. Never use lubricating oil on the body and do not immerse it in water. Storage 1. Fully charge the scooter before storing, and charge it at least once a month to prevent premature decay of the battery capacity.
  • Page 14 After confirming that the charging adapter is functioning, connect the charging adapter to the AC power source and the charging port on the stem. 1. If the indicator light turns red, then charging The battery power is full is normal and the battery is in good working or the battery has failed.

  • Page 15: Frequently Asked Questions (Faqs)

    5. Can I replace the tires on my own? While this is in theory possible, we highly suggest that you contact us at support@turboant.com for assistance before doing this or go to a professional bike store to have them replace the tires for you.

  • Page 16: Environmental Protection

    8. What are the affecting factors of the maximum range? The max listed mileage is 15.5 miles, which is measured under the following conditions: the scooter is ridden with the second speed level, 41.8 V full power battery, a load of 165 lb (75 kg), temperature of 77 ℉...
