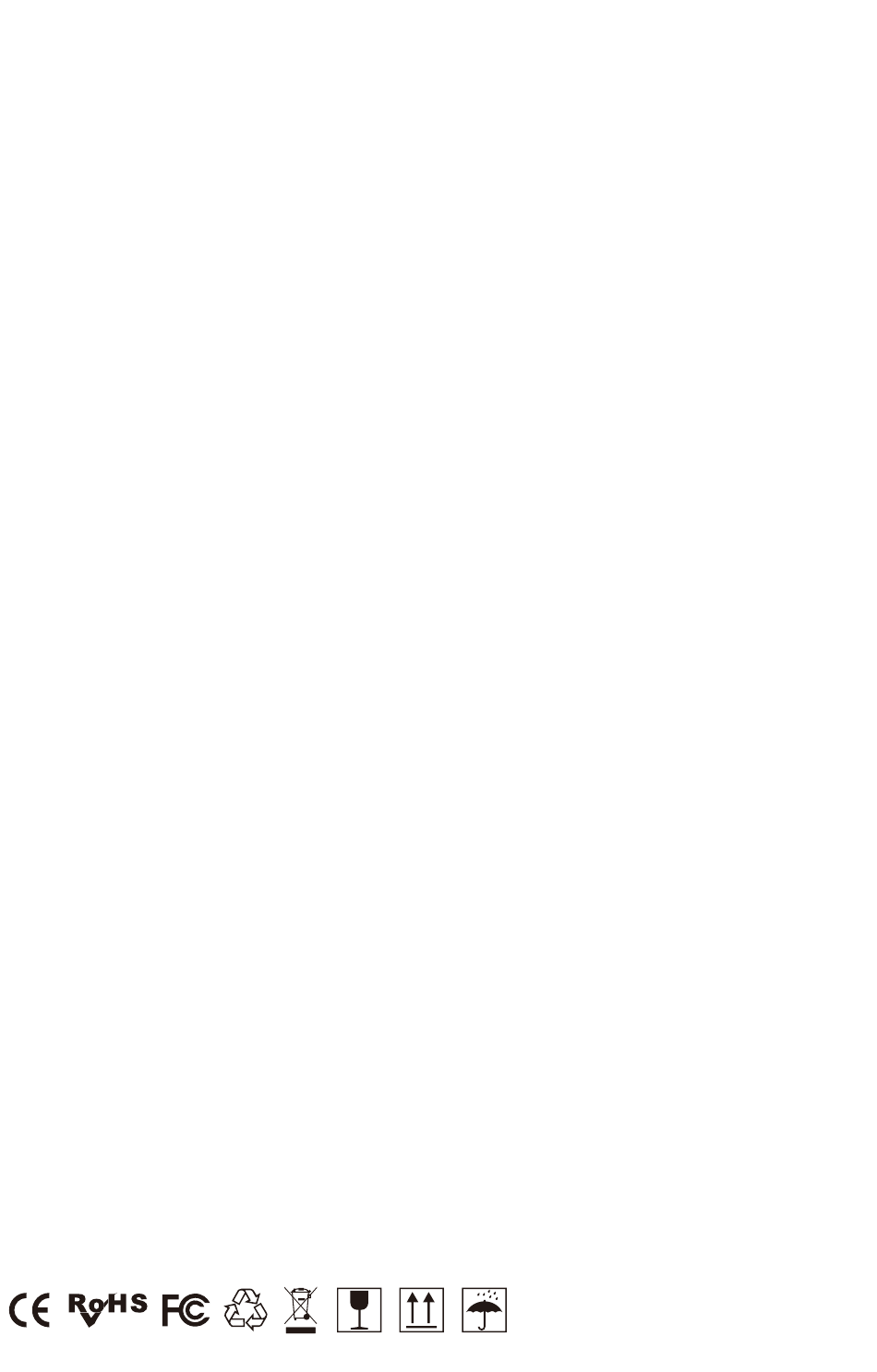

- Page 1 Email: support@turboant.com Website: www.turboant.com Made in China...
- Page 2 Folding Electric Scooter User Manual...
-
Page 3: Important Safety Instructions And Guidelines

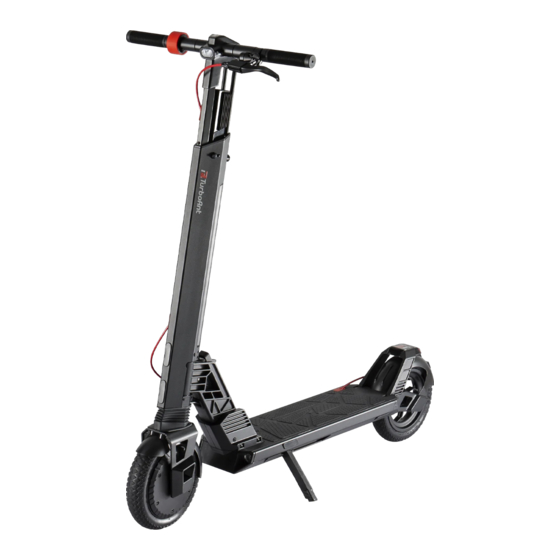

Thank you for purchasing this product. To avoid injury to the user and others, be sure to observe the following safety instructions and guidelines. Keep this information for future reference. Introduction Featuring 9.3" tubed pneumatic tires, this scooter gives you a smooth riding experience. Its powerful 450 W motor and 36 V batteries enable a speed of up to 20 mph with a range of up to 50 miles. -
Page 4: Package Contents
The scooter is only suitable for riding by a single person. The maximum load is 275 lb (125 kg). Do not ride under the influence of drugs or alcohol. Do not use a cell phone or listen to music when riding the e-scooter. -
Page 5: Technical Specifications
Technical Specifications 45.7 X 19.9 X 45.5 in Unfolded Size (1160 x 505 x 1155 mm) 45.7 X 19.9 X 18.1 in Folded Size (1160 x 505 x 460 mm) Product Information Ground Clearance 4.1 in (105 mm) Product Weight 47.62 Ib (21.6 kg) Adapter Input Voltage 100-240 V AC, 50/60 Hz... -
Page 6: Battery Specifications
Notes 1. Max speed values stated in the user manual depend on the road conditions and the load. Values stated on the rating label are related to average conditions. 2. Mileage is tested under the following conditions: the scooter is driven with the second speed level, 41.8 V full power battery, a load of 165 lb (75 kg), temperature of 77 °F (25 °C), humidity of 70%, gentle breeze, tire pressure of 34.8 psi (240 kPa), and flat, dry road conditions. -
Page 7: Product Overview
Product Overview LED Headlight Brake Lever Throttle LED Display Handlebar Battery Release Button Charging Port Battery Pack Stem Stem Lock Stem Latch Motor Anti-skid Deck Kickstand Taillight Disc Brake Mudguard Controls Overview Brake Cable (Red) Brake Lever Power Button Bell Throttle Hall Cable (Black) LED Display... -
Page 8: Controls Description
Light Icon Cruise Control Icon Speed Level Current Speed Speed Unit Km/h Battery Status LED Display Note: If there is no operation within 10 minutes, the scooter will automatically turn off with a "beep" sound. Controls Description Control Operation Press and hold on the power button for 1 second or longer to turn Power On/Off on/off the scooter. - Page 9 Operating Instructions Assembly 1. Pull up the lock in the middle to release the latch. 2. Press down the latch to completely unfold the stem. 3. Push the latch inwards until a “click” sound is heard. 4. Align the scooter’s head with the stem. 5.
- Page 10 Stem Folding 1. Fold the kickstand. 2. Pull up the lock in the middle to release the latch. 3. Press down the latch to completely fold up the stem. 4. Pull up the latch to secure it with the lock until a “click” sound is heard.
- Page 11 Stem Battery Removal 1. Pull up the battery release button on the stem. 2. Hold and pull the upper part of the battery pack outwards while holding up the battery release button. 3. Pull out the entire battery pack.
- Page 12 Stem Battery Installation 1. Align the bottom of the battery with the stem. 2. Pull up the battery release button while pushing the upper part of the battery pack into the stem. 3. Push down the battery release button to secure the battery pack into the stem.
-
Page 13: Battery Maintenance
45 °C), and performs worse when below 32 °F (0 °C). For instance, when the temperature is below -4 °F (-20 °C), the actual mileage will only be half or less than listed. When the tempera- ture rises, the mileage will restore. Note: A fully charged TurboAnt Electric Scooter will last for 120-180 days. -
Page 14: Battery Charging
Battery Charging Charging the Installed Battery 1. Remove the charging port cover on the left side of the stem. Make sure the charging port is dry and free of dust. 2. Connect the charging adapter. 3. The battery is fully charged when the indicator light of the charging adapter turns from red to green. -
Page 15: Maintenance
Maintenance 1. Make sure the scooter is turned off and the power adapter is disconnected. 2. Wipe clean the scooter with a damp cloth. Never use lubricating oil on the body and do not immerse it in water. Storage 1. Fully charge the scooter before storing, and charge it at least once a month to prevent premature decay of the battery capacity. - Page 16 After confirming that the charging adapter is functioning, connect the charging adapter to the AC power source and the charging port on the stem. 1. If the indicator light turns red, then charging is The battery power is full normal and the battery is in good working or the battery has failed.
-
Page 17: Frequently Asked Questions (Faqs)
Frequently Asked Questions (FAQs) 1. What is the optimum tire pressure when riding this scooter? The recommended tire pressure is between 31.9-34.8 psi (220-240 kPa). Please pump up the tires to this pressure. 2. The headlight cannot be turned on. How can I solve this problem? If the headlight won’t turn on, please verify that the scooter is turned on. -
Page 18: Environmental Protection
9. Why can’t my mileage reach 50 miles? The max listed mileage is 50 miles, which is measured under the following conditions: the scooter is ridden with the second speed level, 41.8 V full power battery, a load of 165 lb (75 kg), temperature of 77 °F (25 °C), humidity of 70%, gentle wind, tire pressure of 34.8 psi (240 kPa), and flat, dry road conditions.
