Cooper lighting indoor lighting installation instructions (3 pages)
Summary of Contents for Cooper Lighting AMETRIX SRR
Page 2

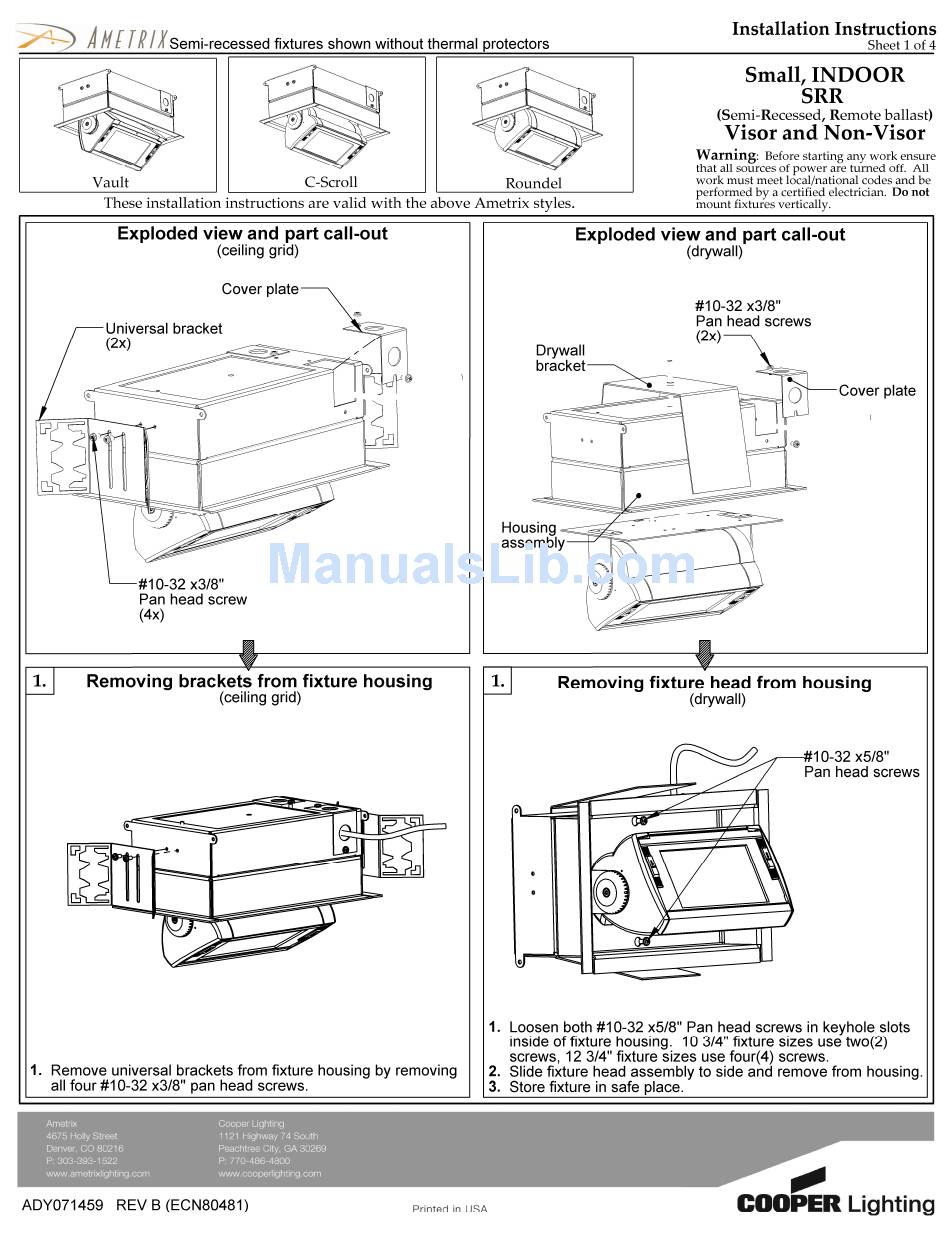

Semi-recessed fixtures shown without thermal protectors Vault w/ visor These installation instructions are valid with the above Ametrix styles. Securing fixture to ceiling tile #10-32 x3/8" Pan head screw Universal (4x) bracket If possible, remove ceiling tile from grid to facilitate fixture installation.
Page 3
Semi-recessed fixtures shown without thermal protectors Vault w/ visor These installation instructions are valid with the above Ametrix styles. 1. After securing fixture housing to ceiling structure using provided brackets, reinforce fixture using safety wire(by others). 2. Using all four tabs located on corners of fixture housing, tie off fixture to structure using safety wire(by others). #10-32 x3/8"...
Page 4
Semi-recessed fixtures shown without thermal protectors Vault w/ visor These installation instructions are valid with the above Ametrix styles 2 " 165.10 2 " 165.10 FIXTURE SIZE WATTAGE (inches/ mm) / 273.05 39 W / 323.85 70 W / 323.85 150 W / 323.85 26 W...
