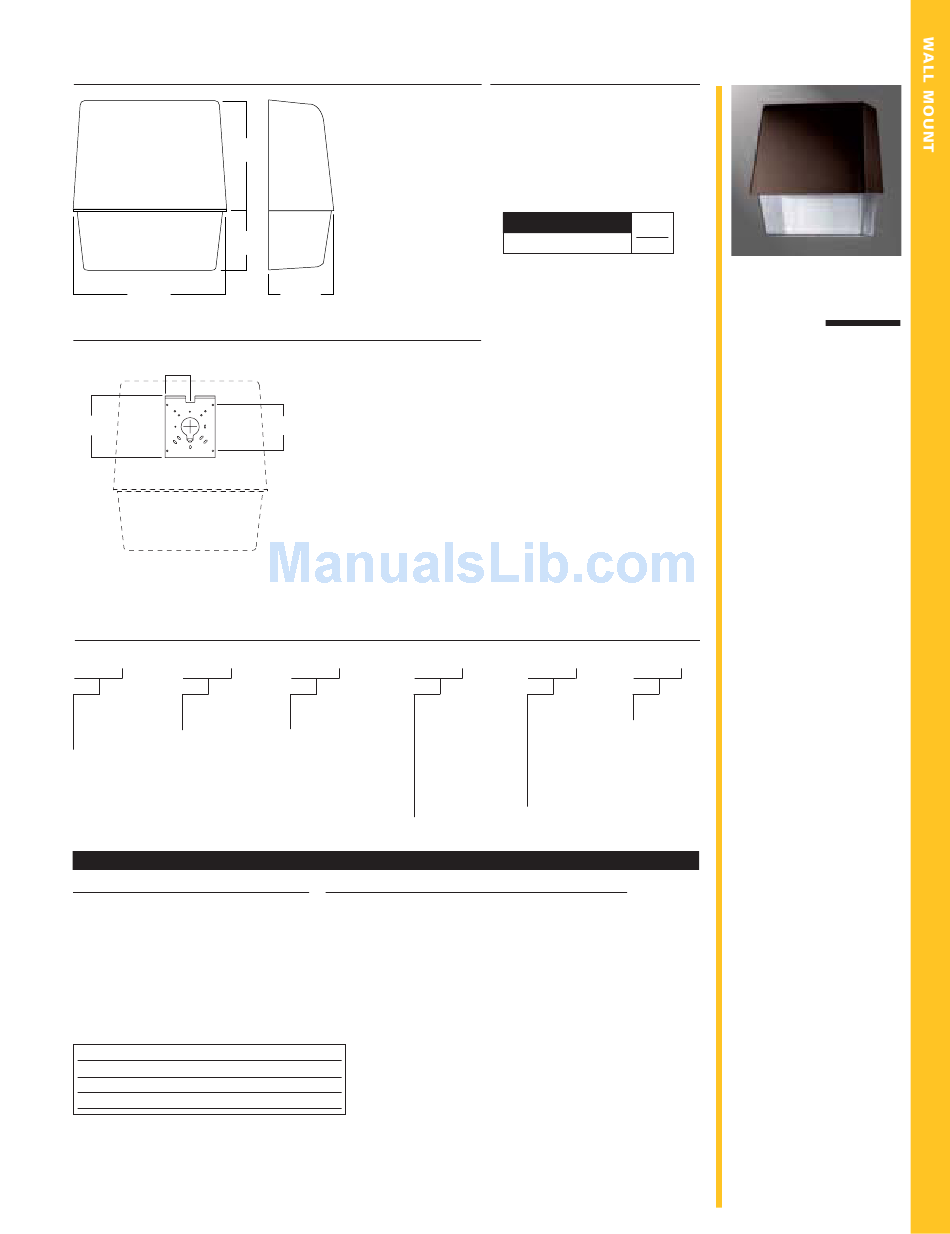

D I M E N S I O N S
12"
[305mm]
6 1/4"
[159mm]
16 1/2"
[419mm]
M O U N T I N G D E T A I L S
2 3/4"
[70mm]
6 13/16"
[173mm]
O R D E R I N G I N F O R M AT I O N
S A M P L E N U M B E R : M H M 4 - P - 4 0 0 - M T- L L
Lamp Type
Product
MH=Metal Halide
1
Family
HP=High Pressure
M4=Mon-4
Sodium
2
MP=(CWA) Pulse
Start Metal
Halide
2, 3
Options
10
Q=Quartz Restrike (Cold Start)
EM=Quartz with Time Delay (Hot and Cold Start)
F1=Single Fuse (120, 277 or 347V) Specify Voltage
F2=Double Fused (208, 240 or 480V) Specify Voltage
PE=Photocontrol (Specify Voltage)
LL=Lamp Included
11
QLL=Quartz Lamp Included
LAMP TYPE
WATTAGE
Metal Halide
70, 100, 175, 250, 400W
Pulse Start Metal Halide
175, 250, 320, 350, 400W
High Pressure Sodium
70, 100, 150, 250, 400W
NOTES: 1 All lamps are mogul-base except 150W Metal Halide and lower are medium-base. 2 Not available in 175W. 3 175, 200, 250, 320, 350 and 400W only.
Limited lamp availability, consult factory. 4 Maximum lamp wattage, 250W High Pressure Sodium and 175W Pulse Start Metal Halide & Metal Halide.
5 Pulse Start Metal Halide only. 6 Product also available in non-US voltages and 50Hz for international markets. Consult factory for availability and ordering
information. 7 Multi-Tap ballast is 120/208/240/277 wired 277V. 8 Triple-Tap ballast is 120/277/347V wired 347V. 9 5-Tap Ballast is 120/208/240/277/480V wired
480V. 400W Metal Halide only. 10 Add as suffix in the order shown. 11 Lamp is shipped separate from luminaire. Lamp is Cooper designated product based
on luminaire requirements. Specified lamps must be ordered as a separate line item. 12 Order separately. 13 Consult your Cooper Lighting Representative for
availability and ordering information. 14 Specifications and dimensions subject to change without notice.
9 1/2"
[241mm]
5"
[129mm]
Lens Type
Lamp
P=Polycarbonate
4
Wattage
GL=Borosilicate
70=70W
Glass
100=100W
150=150W
175=175W
200=200W
250=250W
320=320W
350=350W
400=400W
Accessories
12
SD2925=Screwdriver for Tamper-resistant Screws
COOPER LIGHTING - LUMARK
D E S C R I P T I O N
The Lumark MON-4 features
a injection-molded polycarbonate
housing / lens and a die-cast
aluminum back plate for rugged
durability. U.L. Listed for wet
locations. CSA certified.
D A R K S K Y
CO
C O M P L I A N T
Voltage
6
Options &
120V
Accessories
208V
(See Below)
240V
277V
347V
5
480V
MT=Multi-Tap
7
5
TT=Triple-Tap
8
5
5T=5-Tap
9
Cutoff
7 0 - 4 0 0 W
H i g h P r e s s u r e S o d i u m
P u l s e S t a r t M e t a l H a l i d e
M e t a l H a l i d e
C U T O F F
W A L L M O U N T
• One-piece, heavy-duty,
die-cast aluminum
housing is finished in
dark bronze polyester
powder coat
• Normal or high power
factor compact coil and
core ballast with class H
insulation
• Anodized aluminum
reflector is designed for
optimum light control
and sharp cutoff
(adjustable from 70° to
86°)
• Mogul-base porcelain
enclosed screw-shell
socket, except 150W MH
and lower which is
medium-base
• Closed-cell high-
temperature silicone
gasketing seals out
external contaminants
• Lens lowers on
spring-loaded retaining
wires for quick access
to internal components
during relamping and
maintenance
• U.L. listed for wet
locations. CSA certified
• Approximate net weight:
47 lbs. (21 kgs.)
COOPER LIGHTING
®
M4
MON-4
L U M I N A I R E
573
