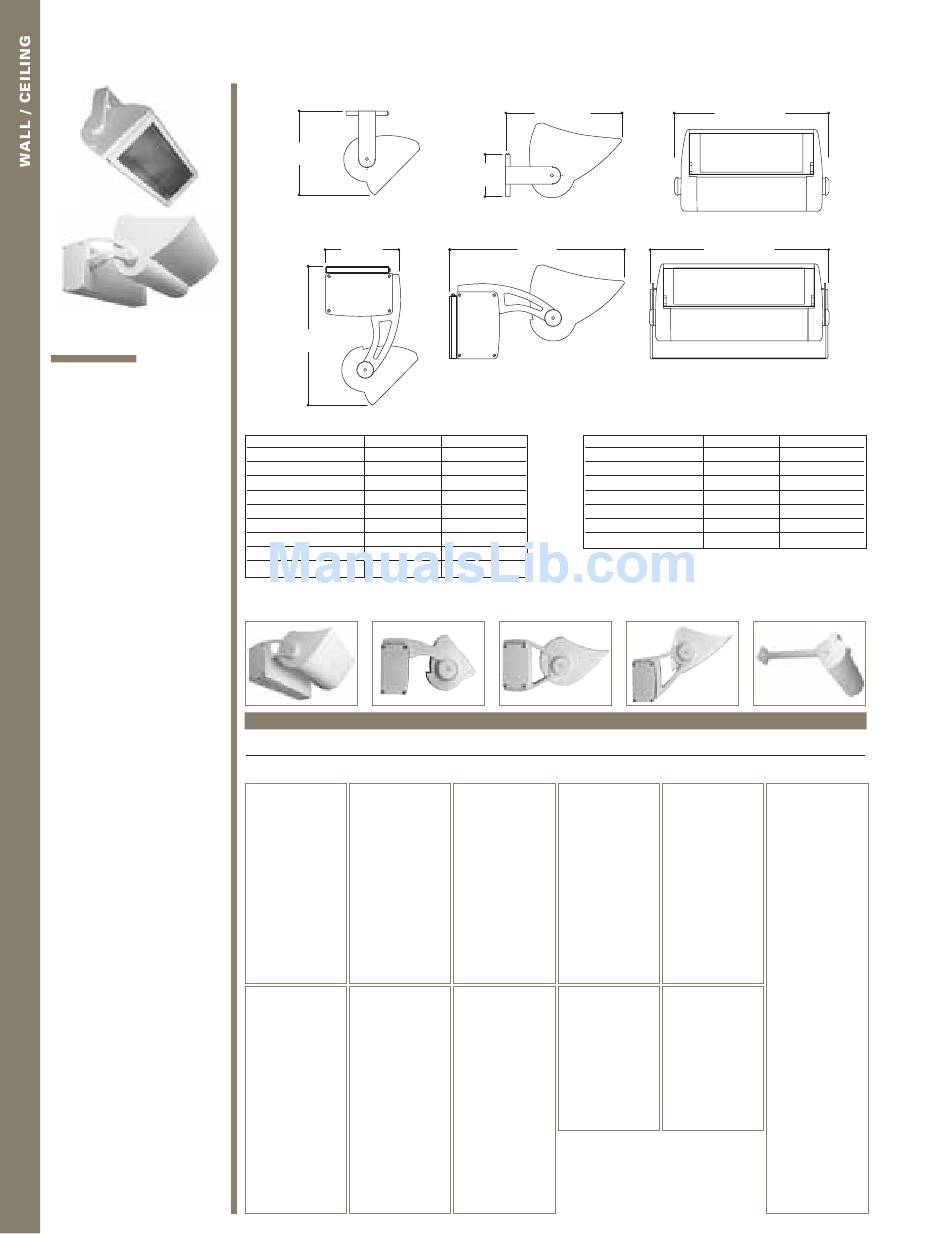

AMETRIX
c-Scroll
L a r g e
• Extruded aluminum
housing
• Die-cast aluminum
end caps
• Integrated visor option -
solid, perf or opal window
• Die-formed 94% reflective
dual-finish anodized
aluminum reflector
• Gasketed hinging
doorframe - indoor
toolless entry, outdoor -
fasteners required
• PointGrab
adjustment
1256
COOPER LIGHTING
Remote
(Consult factory for outdoor mounting)
9-3/4"
[248mm]
Integral
7"
[178mm]
16-1/2"
[419mm]
LAMP CHART - Remote
SOURCE
WATTAGE
Tungsten
350/500
900/1000
Metal Halide
175
((2) 150)/250/400
(2) 400
Fluorescent
32/42/57
(2) 32/42
40/50/55
(2) 40/50/55
Mounting Options
YI01
YI02
O R D E R I N G I N F O R M A T I O N
S A M P L E N U M B E R : S P - L I - P - 1 - M 4 0 0 - 2 7 7 - S - Y R
Product
Size - Indoor/Outdoor
❑ SN
❑ LI
c-Scroll
Large Indoor
No Visor
❑ LO
❑ SS
Large Outdoor
c-Scroll
Solid Visor
❑ SO
c-Scroll
Opal Visor
❑ SP
c-Scroll
Square
Perf Visor
Voltage
Finish
❑ 120
❑ W
120V (T)
White
❑ 220
❑ S
277V (1000W only)
Silver
❑ 240
❑ B
240V (900W,
Bronze
1000W only)
❑ C
❑ 277
Custom
277V
(Consult factory)
❑ 347
347V
14" [356mm]
5"
[127mm]
20-3/4"
[527mm]
LAMP CHART - Integral
LENGTH
SOURCE
22-3/4"
Metal Halide
30-3/4"
16-3/4"
22-3/4"
Fluorescent
30-3/4"
16-3/4"
22-3/4"
30-3/4"
30-3/4"
YI03
YI04
Lens
No. of Lamps
❑ C
❑ 1
Clear
1 Lamp
❑ P
❑ 2
Micro-prismatic
2 Lamps
❑ N
None**
Mounting
Modification
❑ YR
❑ MOD
Yoke / Remote
Provide description
of the modification.
❑ CR36
(Consult factory)
Cantilever 36"
Remote
❑ YI01
Yoke
Integral 01
❑ YI02
Yoke
Integral 02
❑ YI03
Yoke
Integral 03
❑ YI04
Specifications and
Yoke
dimensions subject to
Integral 04
change without notice.
See Lamp Chart
See Lamp Chart
WATTAGE
LENGTH
175
16-3/4"
((2) 150)/250/400
22-3/4"
(2) 400
30-3/4"
32/42/57
16-3/4"
(2) 32/42
22-3/4"
40/50/55
30-3/4"
(2) 40/50/55
30-3/4"
CR36
Lamp/Ballast Type
Wattage
❑ F
❑ 032
Fluorescent
32W (F)
(Electronic)
❑ 040
❑ T
40W (F)
Tungsten
❑ 042
Halogen
42W (F)
❑ E
❑ 050
Metal Halide*
50W (F)
(Electronic)
❑ 055
❑ M
55W (F)
Metal Halide
(Magnetic)
❑ 057
❑ R
57W (F)
Metal Halide
❑ 150
(Restrike)
150W (E) (
only)
Accessories
❑ 175
175W (M, R)
❑ L45
❑ 250
45˚ Cross Blade
Louver
250W (M, R)
❑ 350
❑ L25
350W (T)
25˚ Cross Blade
Louver
❑ 400
400W (M, R)
❑ 500
500W (T)
❑ 900
900W (T)
* Not available with
❑ 01K
all sources or options.
1000W (T)
(Consult factory)
** Only fluorescent
(Long Twin Tube)
✝ 2 lamp option
