Cooper Lighting AMETRIX ADY080863 Installation Instructions

Warning
: Before starting any work ensure
that all sources of power are turned off. All
work must meet local/national codes and be
performed by a certified electrician.
mount fixtures vertically.
End cap
1/4-20 x1"
Aiming screw
(2x)
Integral ballast
enclosure
Mounting
brackets (2x)
Securing Mounting Brackets
1.
1.
Using 1/4-20 x1" screws, secure mounting brackets to bottom
of ballast enclosure.
2. Brackets can be attached as shown or reversed allowing
access to bolts from side of fixture.
ADY080863 REV A(ECN080377)
Do not

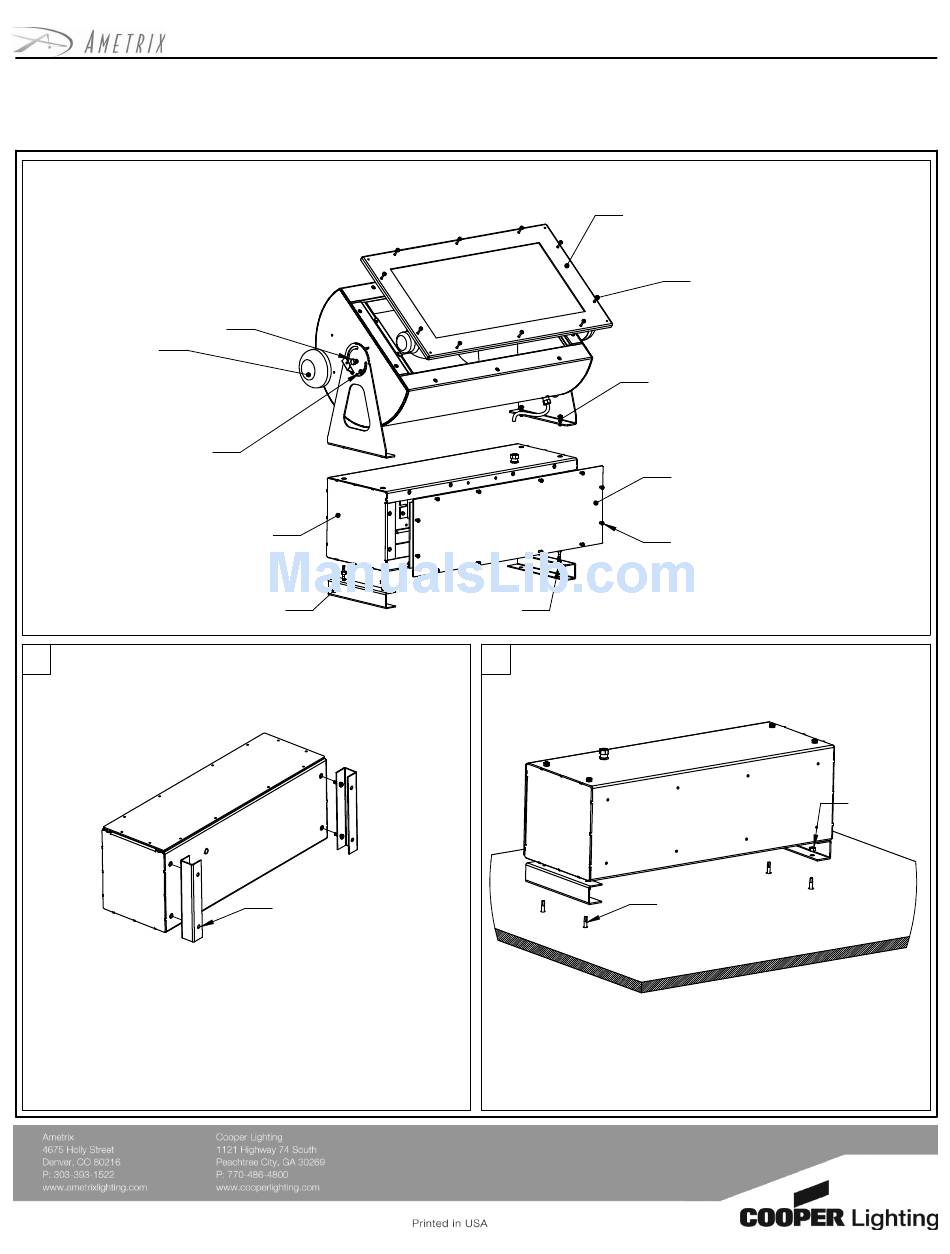

Exploded View and Part Call-Out
3/8-16 x1"
Hex End bolt
(2x)
Insert driver through
mounting holes in bracket
to secure brackets to ballast
enclosure.
Fixture door
1/4-20 x1"
Screw
(4x)
2. Securing Ballast Enclosure to Surface
1. After securing mounting brackets to ballast enclosure, slide
brackets over pre-installed 1/4-20 bolts in mounting
surface.(Refer to page 3 for mounting dimensions)
2. Using appropriate nuts, secure ballast enclosure to surface.

Installation Instructions

Roundel, XL
IN/OUTDOOR
BI
(Base, Integral)
Visor and Non-Visor
Captive door
screws
(x10)
1/4-20 x1"
Screw
(4x)
Ballast enclosure
cover plate
#10-32 x 1/2"
Pan head screws
(x12)
Pre-installed
1/4-20 bolts
(x4)
Sheet 1 of 3
1/4-20 nut
(x4)
