Puls Dimension U Series Instructions Manual

U-Series
G D
ENERAL ESCRIPTION

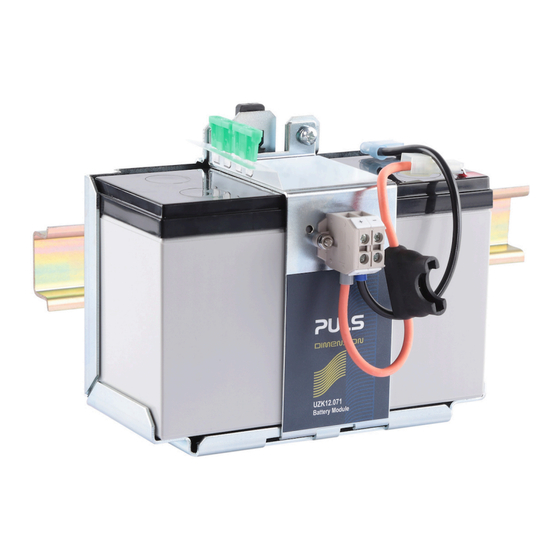

The UZK12.071 battery module utilizes one non spillable
maintenance-free VRLA lead-acid battery, which is
assembled in a package with all wiring and fusing
included.
The battery module is available in two different
options. It can be ordered as UZK-module with a battery
or as UZO-module without a battery which can be
installed at a later date to avoid outdated batteries.
The battery module can either be mounted on a DIN-rail
or be screwed on a flat surface.
O N
RDER UMBERS
Battery Module UZK12.071
UZO12.07
UZB12.071
Apr. 2021 / Rev. 2.3 DS-UZK12.071
All parameters are typical values specified at 25°C ambient temperature unless otherwise noted.
Battery module with
assembled batteries
Battery module without
assembled batteries
Battery replacement
12V, 7Ah
www.pulspower.com Phone +49 89 9278 0
UZK12.071, UZO12.07
B
ATTERY
B M
ATTERY ODULE
 Two Mounting Options:
DIN-Rail or Panel/ Wall Mounting
 Small Mounting Footprint
 Easy Access to the Terminals and the Fuse
 Heavy Duty Fuse Holder and Spare Fuse Included
 3 Year Warranty, Except for Batteries, Which Are
Considered a Service Part.
S - D
HORT FORM
Nominal voltage DC 12V
Nominal battery 7Ah
capacity
Nominal battery life 3 to 5 years
Battery current Max. 30A
Max. 1.8A
Recommended 13.9V
charging voltage 13.75V
13.6V
13.45V
Self-discharge rate 3%/month
Battery fuse 30A
Temperature range -10°C to +40°C
-15°C to +50°C
Size (WxHxD) 155x124x112mm WxHxD
Weight 3300g / 7.3lb
600g / 1.32lb
M
ARKINGS
IECEx
Marine
Germany
M 12V, 7AH
ODULE
ATA
According EUROBAT
Discharging current
Charging current
At 10°C
At 20°C
At 30°C
At 40°C
At 20°C
ATOF ® 287 030 from
Littelfuse
For charging
For discharging
For UZK12.071
For UZO12.07
ATEX Class I Div. 2
Marine
