Puls UZK12.261 Instructions For Use

–
U-Series
D
ATA

Battery

Maintenance free valve regulated lead acid battery
Battery voltage nom 12Vdc
Battery capacity nom 26Ah
Self-discharge typ
Design life (EUROBAT)
Fuse
Blade terminal fuse nom 30A ATO
(257 030 Littelfuse)
Terminals and Wiring
Type
Solid wire nom 2.5-4mm
Stranded wire nom 2.5-4mm
American wire gauge max
Wire stripping length nom 7mm / 0.275"
Tightening torque nom 0.8Nm / 7lb.in
Ambient Temperature
Operation min
Storage and transport min

Dimensions and Weight (UZK12.261)

Width
Height
Depth
Weight
O N
RDER UMBERS
UZK12.261 Battery module
UZO12.26 Mounting kit without battery
Battery replacement
UZB12.261
September 2006 / Rev. 1.0 / DS-UZK12.261-EN / All parameters are specified at 25°C ambient unless otherwise noted.
The information presented in this datasheet is believed to be accurate and reliable and may change without notice
UZK12.261/ UZB12.261/ UZO12.26
3%/ month at 20°C
10 to 12 years
®
Screw terminals
2
2
12 AWG
+0°C to +40°C
-20°C to +50°C
nom 214 mm / 8.43"
nom 179 mm / 7.05"
nom 158 mm / 6.22"
max 9920g / 21.83lb
www.pulspower.com Phone +49 89 9278 0
2 rue René Laennec 51500 Taissy France
Fax: 03 26 85 19 08, Tel : 03 26 82 49 29

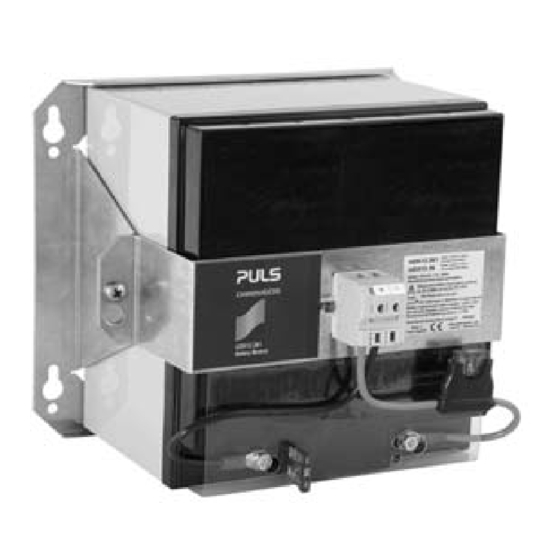

Battery Module 12V, 26Ah
B M
ATTERY ODULES
A modular concept allows the user to meet individual
application demands and is available with two different
options:
You can order the module with an assembled battery or
you can choose only the bracket allowing the mounting
of individual batteries. The mounting bracket allows the
battery to be assembled just in time avoiding outdated
batteries due to limited shelf life.
■
Long life battery: 10 to12 years
■
Easy access to the terminals and the fuse
D
ATA
Instructions for Use and Disposal of the Battery
Place the battery module outside the cabinet or in the
coolest area when used inside the cabinet.
Use wires no smaller than 2.5mm
longer than 2x1.5m (cord length 1.5m).
Disconnect battery fuse before working on the battery
or on the DC-UPS.
For storage, installation and operation, the
requirements of the EN 50272-2 as well as other
national regulations must be observed.
Ensure sufficient ventilation for the battery.
Always dispose the batteries through a recycling
organisation. Batteries must be completely discharged
before recycling.

Warranty

3 Year limited warranty except battery as battery is
considered as a service part. Special conditions are part of
our general terms and conditions. Do not store the
battery longer than 9 month without supplementary
charge or performance might change.
M
ARKINGS
GL
Marine, pending
Germany
E-mail:hvssystem@hvssystem.com
Site web : www.hvssystem.com
2
(or 12 AWG) and not
Battery, terminal block,
cables, fuse and fuse
holder are UL-approved
components.
.
1/1
