U-Series
1. G
D
ENERAL
ESCRIPTION
The UZK12.071 battery module utilizes one non-
spillable maintenance-free lead-acid battery that is
assembled in one package with all the required wiring
included.
The UZK12 battery module is available in two different
options. It can be ordered with assembled batteries or
as a battery bracket without batteries, allowing for
different battery options. The mounting bracket option
also allows the batteries to be assembled just in time,
avoiding outdated batteries due to limited shelf life.
3. O
N
RDER
UMBERS
Battery Module UZK12.071
UZO12.07
Replacement
UZB12.071
Jul. 2016 / Rev. 2.1 DS-UZK12.071
All parameters are specified at, 25°C ambient temperature unless otherwise noted.
Battery module with
assembled batteries
Battery module without
assembled batteries
Battery replacement
12V, 7Ah
www.pulspower.com Phone +49 89 9278 0
UZK12.071, UZO12.07
B
ATTERY
B
M
ATTERY
ODULE
Two Mounting Options:
DIN-Rail or Panel/ Wall Mounting
IP00 Open Type Protection Level
Easy Access to the Terminals and the Fuse
Heavy Duty Fuse Holder and Spare Fuse Included

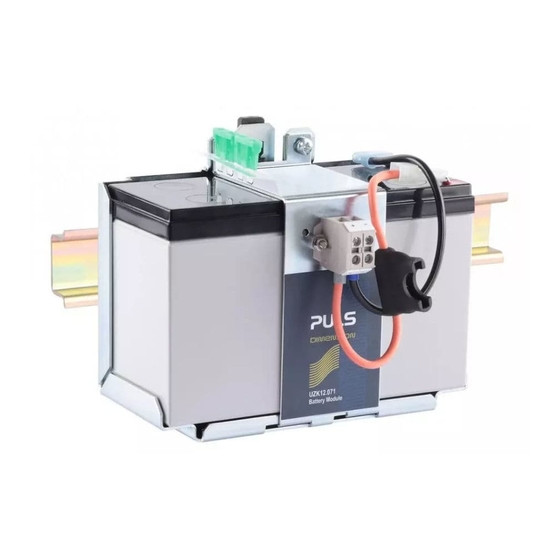

UZK12.071 With Installed Battery
UZO12.07 Only Bracket Without Installed Battery
2. D
ATA
Battery type
Battery design life
Battery voltage
Battery capacity
Battery current
Battery fuse
Temperature sensor
Charging voltage
Self-discharge rate
Temperature range
Dimensions
Weight
4. M
ARKINGS
Germany
M
12V, 7AH
ODULE
VRLA
Lead-acid
3 to 5 years
acc. EUROBAT
DC 12V
7Ah
max. 30A
for discharging
max. 1.8A
for charging
30A
ATO fuse
not included
13.9V
at 10°C
13.75V
at 20°C
13.6V
at 30°C
13.45V
at 40°C
3%/month
at 20°C
-10°C to +40°C
for charging
-15°C to +50°C
for discharging
-20°C to +50°C
for storage
155x124x112mm WxHxD
3200g / 7.6lb
UZK12.071
550g / 1.21lb
UZO12.07
Marine
LVD
1/9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIMENSION U Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Puls DIMENSION U Series

Summary of Contents for Puls DIMENSION U Series

  • Page 1: General Description

    UZK12.071, UZO12.07 12V, 7AH U-Series ATTERY ODULE ATTERY ODULE Two Mounting Options: DIN-Rail or Panel/ Wall Mounting IP00 Open Type Protection Level Easy Access to the Terminals and the Fuse Heavy Duty Fuse Holder and Spare Fuse Included UZK12.071 With Installed Battery UZO12.07 Only Bracket Without Installed Battery 1.

  • Page 2: Table Of Contents

    UZK12.071, UZO12.07 12V, 7AH U-Series ATTERY ODULE NDEX Page Page General Description ..........1 11. Environment ............4 Data ..............1 12. Terminals and Wiring......... 5 Order Numbers............1 13. Protection Features ..........5 Markings ..............1 14. Approvals ............5 Intended Use ............2 15.

  • Page 3: Instructions For Battery Storage

    - Do not store batteries or the battery module longer than nine months without supplementary charging or performance and lifetime might change. PULS charges every battery before shipment from the factory. - Recommendation for supplementary charge: Every 9 months or whenever the open circuit voltage (OCV) falls below 12.6V, the battery module should be charged.

  • Page 4: Replacing Batteries

    Always dispose the battery through a recycling organization. Batteries must be completely discharged before recycling. Batteries can also be returned to PULS or the battery manufacturer. Battery replacements can be acquired through PULS. PULS also offers a list with recommended batteries in case batteries need to be acquired elsewhere.

  • Page 5: Terminals And Wiring

    UZK12.071, UZO12.07 12V, 7AH U-Series ATTERY ODULE 12. T ERMINALS AND IRING The terminals are IP20 Finger safe constructed and suitable for field- and factory wiring. Type Screw terminals Solid wire 2.5-4mm Stranded wire 2.5-4mm American Wire Gauge AWG12-10 Max. wire diameter 3.5mm (including ferrules) Wire stripping length 7mm / 0.28inch...

  • Page 6: Physical Dimensions And Weight

    UZK12.071, UZO12.07 12V, 7AH U-Series ATTERY ODULE 15. P HYSICAL IMENSIONS AND EIGHT Width 155mm / 6.1’’ Height 124mm / 4.88’’ Depth 112mm / 4.41’’ for DIN-Rail mounting; The DIN-rail height must be added to the unit depth to calculate the total required installation depth. Depth 106mm / 4.17’’...

  • Page 7: Wall/ Panel Mounting

    UZK12.071, UZO12.07 12V, 7AH U-Series ATTERY ODULE 16. W ANEL OUNTING Panel/ wall mounting is possible by detaching the DIN-Rail brackets Fig. 16-1 Panel/ wall mounting – Removing the aluminium brackets and plastic slide Detach the two aluminum brackets Remove the plastic lock mechanism Panel/ wall mounting is possible by removing the two screws with a by using a flat-blade screwdriver to...

  • Page 8: Recommendations For A Long Battery Life

    UZK12.071, UZO12.07 12V, 7AH U-Series ATTERY ODULE 17. R ECOMMENDATIONS FOR A ATTERY Temperature: The temperature has the most impact on the service life. The hotter the temperature, the earlier the wear-out phase of the battery begins. The wear-out results in a degradation of battery capacity. Place the battery module in a cool location, E.g.

  • Page 9: Mounting Orientations

    UZK12.071, UZO12.07 12V, 7AH U-Series ATTERY ODULE 18. M OUNTING RIENTATIONS The standard mounting orientation is the vertical installation onto a flat surface. Fig. 18-1 Standard mounting orientation The following mounting orientations are also allowed: Fig. 18-2 Allowed mounting orientation Do not use the battery module in an upside down position: Fig.
