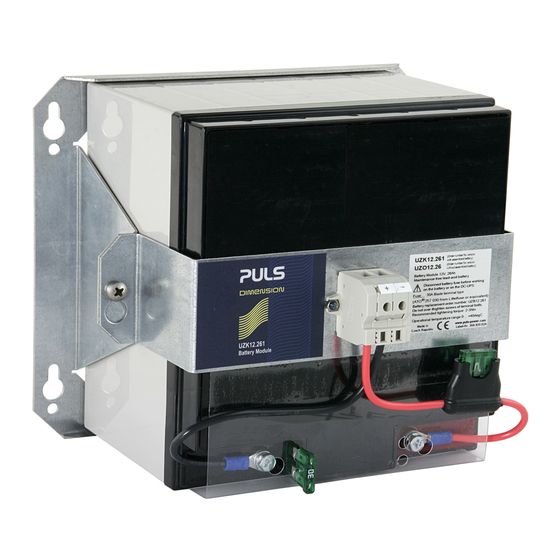

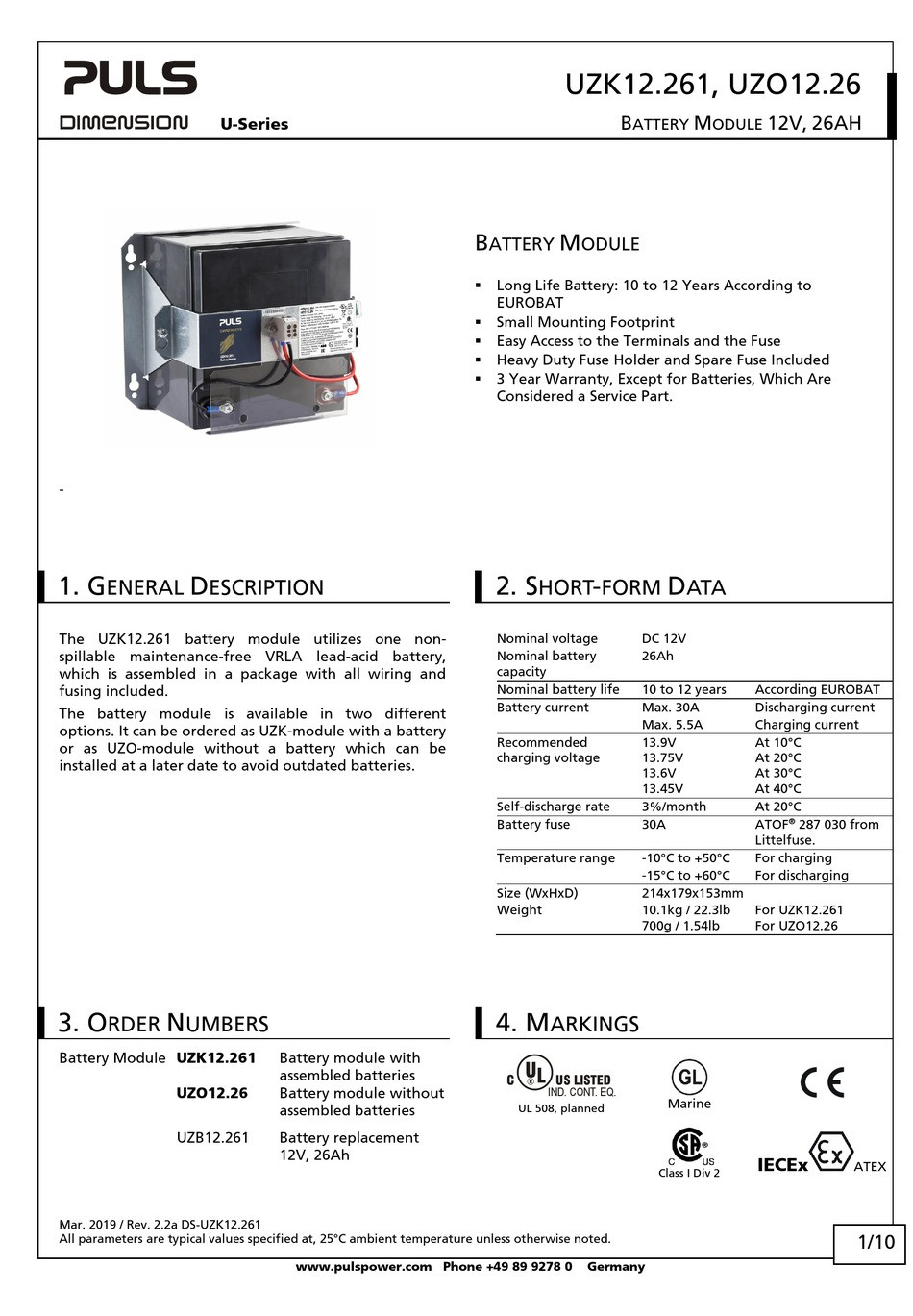

The UZK12.261 battery module utilizes one non-
spillable maintenance-free VRLA lead-acid battery,
which is assembled in a package with all wiring and
fusing included.
The battery module is available in two different
options. It can be ordered as UZK-module with a battery
or as UZO-module without a battery which can be
installed at a later date to avoid outdated batteries.
3. O N
RDER UMBERS
Battery Module UZK12.261
UZO12.26
UZB12.261
Mar. 2019 / Rev. 2.2a DS-UZK12.261
All parameters are typical values specified at, 25°C ambient temperature unless otherwise noted.
Battery module with
assembled batteries
Battery module without
assembled batteries
Battery replacement
12V, 26Ah
www.pulspower.com Phone +49 89 9278 0
UZK12.261, UZO12.26
B
ATTERY
B M
ATTERY ODULE
 Long Life Battery: 10 to 12 Years According to
EUROBAT
 Small Mounting Footprint
 Easy Access to the Terminals and the Fuse
 Heavy Duty Fuse Holder and Spare Fuse Included
 3 Year Warranty, Except for Batteries, Which Are
Considered a Service Part.
2. S -
HORT FORM
Nominal voltage DC 12V
Nominal battery 26Ah
capacity
Nominal battery life 10 to 12 years
Battery current Max. 30A
Max. 5.5A
Recommended 13.9V
charging voltage 13.75V
13.6V
13.45V
Self-discharge rate 3%/month
Battery fuse 30A
Temperature range -10°C to +50°C
-15°C to +60°C
Size (WxHxD) 214x179x153mm
Weight 10.1kg / 22.3lb
700g / 1.54lb
4. M
ARKINGS
IND. CONT. EQ.
UL 508, planned
Germany
M 12V, 26AH
ODULE
D
ATA
According EUROBAT
Discharging current
Charging current
At 10°C
At 20°C
At 30°C
At 40°C
At 20°C
®
ATOF 287 030 from
Littelfuse.
For charging
For discharging
For UZK12.261
For UZO12.26
Marine
IECEx
Class I Div 2
ATEX
