Arcan CRJ30 Manual

P.O. Box 58
Travelers Rest, SC 29690
Phone: (800) 879-7316
Fax: (864) 834-0073
www.arcanusa.com
info@arcanusa.com

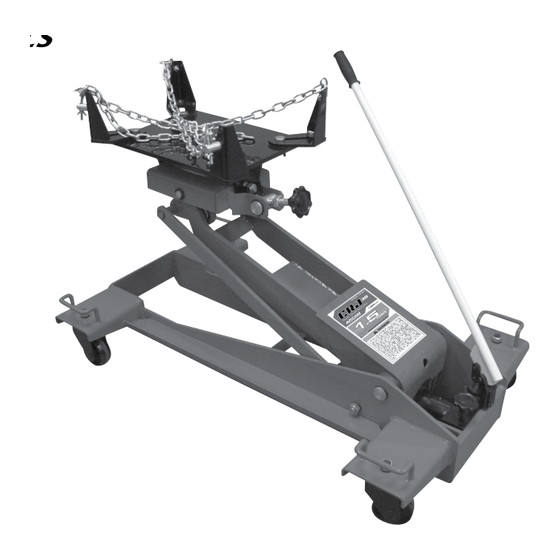

ITEM: CRJ30
1-1/2 Ton Truck
Transmission jack
BEFORE USING THIS DEVICE, READ THIS
MANUAL COMPLETELY AND THOROUGHLY,
UNDERSTAND ITS OPERATING
PROCEDURES, SAFETY WARNINGS AND
MAINTENANCE REQUIREMENTS.
It is the responsibility of the device owner to make sure all personnel
read this manual prior to using the device. It is also the responsibility
of the device owner to keep this manual intact and in a convenient
location for all to see and read. If the manual or product labels are lost
or not legible, contact Arcan for replacements. If the operator is not
fluent in English, the product and safety instructions shall be read to
and discussed with the operator in the operator's native language by
the purchaser/owner or his designee, making sure that the operator
comprehends its contents.

SPECIFICATIONS

Capacity ............................................................... 1-1/2 Ton
Low Height .................................................................8-5/8"
Raised Height ...........................................................36-5/8"
Length ......................................................................43-1/2"
Chassis Width ................................................................ 26"
Saddle Tilt Fore and Aft ......................................10° by 10°
Saddle Tilt Side to Side ........................................+10°, 10°
Shipping Weight ...................................................... 350 lbs.
CRJ30
• Read, study, understand and follow all instructions before
operating this device. • Inspect before each use. Do not use
jack if damaged, altered, modified, in poor condition, or has
loose or missing hardware or components. Take corrective
action before using the jack. • Do not use jack beyond its
rated capacity. • Use only on a hard, level, clean and dry
surface capable of supporting the load. • This jack was
designed for lifting transmissions only. • Do not attempt
any work until vehicle is supported by jack stands and any
tires touching the ground are chocked. • Use this jack only
with adapters and load restraints provided. Use of this jack
is limited to the removal, installation, and transportation (in
the lowered position) of transmissions and transfer cases.
• Wear eye protection that meets ANSI Z87.1 and OSHA
standards. • Do not lift or support the vehicle with this
jack. • Secure the load to the jack. Only attachments and/
or adapters supplied by the manufacturer shall be used.
• Always lower the jack slowly and carefully. • Make sure
the ground, work area, and clearance under the vehicle
are free from obstructions or any hindrances that would
prevent easy maneuverability of the jack and transmission
under the vehicle. • This product contains chemicals known
to the State of California to cause cancer and birth defects
or other reproductive harm. Wash hands thoroughly after
handling. • Failure to heed these warnings may result in
serious or fatal personal injury and/or property damage.
1
WARNING
rev. 03/26/13
