Summary of Contents for Idis DC-SP6531EXD

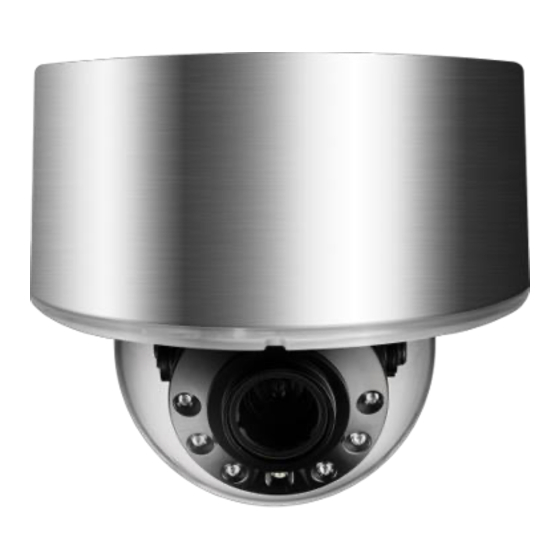

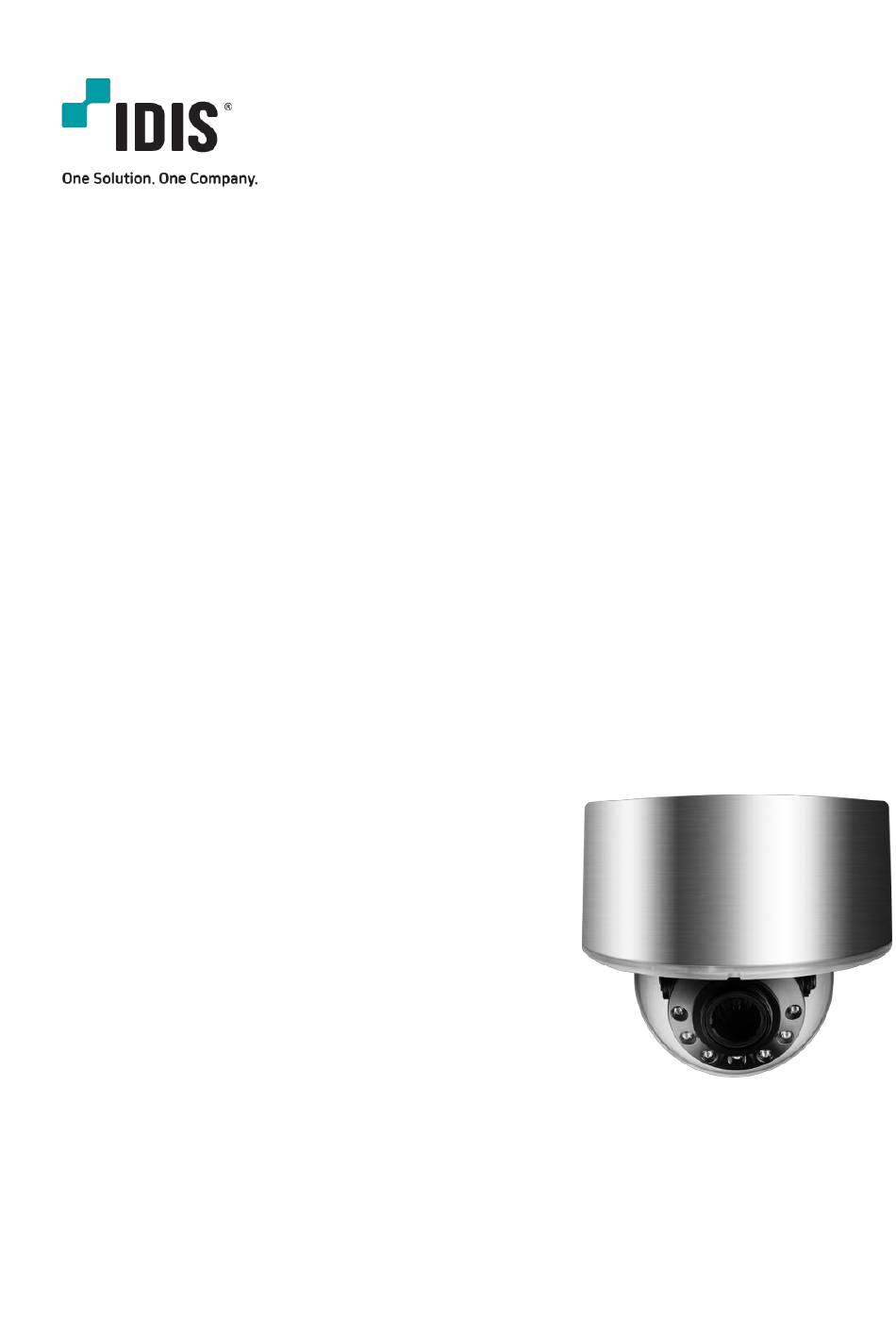

- Page 1 Explosion-proof Mini dome camera Instruction Manual DC-SP6531EXD...
-
Page 2: Table Of Contents
DC-SP6531EXD Explosion-proof IR Mini dome camera·Instruction Manual Copyright Statement ................1 Quality Guarantee ................1 Security Assurance ................1 Notice ....................2 Safety Requirements ................3 How to move this product ..............7 Thank you for choosing IDIS Ex products！... -
Page 3: Copyright Statement
IDIS. IDIS remains the right to modify the content and technical specifications of the product in this Instruction Manual without any form of notification, to provide the newest and most advanced product. -
Page 4: Notice
DC-SP6531EXD Explosion-proof IR Mini dome camera·Instruction Manual Notice The user shall not disassemble this product optionally, such as removal of top cover or bolts may cause leakage of water or creepage. Please operate the product according to the requirements in this Instruction Manual;... -
Page 5: Safety Requirements
Please read this Instruction Manual carefully before installation and operation of this product. The safe service period is 1 years after date of manufacture, see nameplate of the date of manufacture. Please read and understand associate knowledge, safety notices and cautions before put into service. - Page 6 DC-SP6531EXD Explosion-proof IR Mini dome camera·Instruction Manual 4. Service condition requirements Please do not focus the camera to hard light (such as lamp or sunlight), which will cause too bright of the image, it’s not malfunction but it does will affect the duration of the CCD (or CMOS).
- Page 7 DC-SP6531EXD Explosion-proof IR Mini dome camera·Instruction Manual 6. Environmental protection For components of the products made by our company may pollute the environment, such as PCB, electrical elements, plastic and lubricant, collection and control measurement shall be taken in maintenance and scrapping of the products.
- Page 8 Ex structure instruction We have made adequate consideration in flameproof enclosure design of the Explosion-proof dome camera to prevent explosive gases getting into the inner volume, the explosion inside the enclosure cannot cause the explosion of the external explosive gases. We ensure the explosion-proof performance by strengthen enclosure the strength, adjust the length and gap of the joint of associate components and limit the maximum surface temperature.
-
Page 9: How To Move This Product
De-energize the product, holding the bottom part to move it, no force on the sunshade, wiper, base; no dragging or knocking allowed. When the product is energized: it’s NOT allowed to open, move, knock or drag this product. - Page 10 DC-SP6531EXD Explosion-proof IR Mini dome camera·Instruction Manual Content 1.. General................... 9 1.1. Specification ................. 9 1.2. Characters .................. 10 1.3. Scope ..................11 1.4. Mechanical parameters .............. 11 1.5. Electrical parameters ..............11 1.6. Service condition ................ 12 1.7. Electrical safety (in normal atmosphere) ........12 1.8.
-
Page 11: General
DC-SP6531EXD Explosion-proof IR Mini dome camera·Instruction Manual General DC-□ Explosion-proof dome camera (hereinafter referred to as camera) is a new generation of Explosion-proof monitoring device, it adopts advanced manufacturing process, with a mature quality management system as a guarantee, the quality, performance and appearance are in leading position. -
Page 12: Characters
DC-SP6531EXD Explosion-proof IR Mini dome camera·Instruction Manual □ D C -SP 6 3 1 EX D D: Dome EX： Explosion proof 1: First Model 3: lens classification 2: 2MP, 5: 5MP, 8: 8MP 6: Expert Grade SP: Specialty C: Camera D: Direct IP Model：... -
Page 13: Mechanical Parameters
DC-SP6531EXD Explosion-proof IR Mini dome camera·Instruction Manual 1.4 . Mechanical parameters Material: Stainless steel 304, 316 or 316L Automatic heating(optional): Heating automatically below -10 ºC Weight(net): DC-□: 3.7Kg、 Weight(gross): DC-□: 5Kg、 Figure 1.4.1 Dimensions of DC-□ Explosion-proof IR Mini dome camera 1.5. -
Page 14: Service Condition
DC-SP6531EXD Explosion-proof IR Mini dome camera·Instruction Manual 1.6. Service condition Atmosphere pressure: 80～110kPa Ambient temperature: -40ºC～+60ºC Relative humidity: no more than 95% (+25ºC) 1.7. Electrical safety (in normal atmosphere) Insulation resistance: the insulation resistance between power terminal and the enclosure shall be no less than 50 MΩ;... -
Page 15: Installation & Debugging
DC-SP6531EXD Explosion-proof IR Mini dome camera·Instruction Manual 2 Installation & debugging 2.1. Cautions before installation It’s Prohibit customer to disassemble the camera. otherwise dangerous； Check whether it has the explosion proof certificate； Check whether it has the explosion proof marking, it should fit the explosion proof environment；... -
Page 16: Preparation Of Supports Before Installation
After you are familiar with Ex product’s operation, then do the site installation. The debugging is done before package, only installation in the intended location is required. We strongly suggest you select supports from IDIS, it will ease your installation process significantly. -
Page 17: On-Spot Installation And Fixing
DC-SP6531EXD Explosion-proof IR Mini dome camera·Instruction Manual Figure 2.2.1.1 Installation of bracket Figure 2.2.1.2 wall mounting bracket fix holes Figure 2.2.1.3 ceiling mounting bracket fix holes 2.3. On-spot installation and fixing Since Ex product is very special, adjust with power indoors before installation in the intended locations if available. - Page 18 DC-SP6531EXD Explosion-proof IR Mini dome camera·Instruction Manual 1 . 壁 装 支 架 ； 2 . M 8 × 1 6 内 六 角 圆 柱 头 组 合 螺 钉 ； 3 . M 6 1.wall mounting bracket;2.M8×16 Hexagon socket head combination screw;3.M6 eye-bolt 4.DC-□ Overall unit 吊...
- Page 19 DC-SP6531EXD Explosion-proof IR Mini dome camera·Instruction Manual 2.3.3 Instruction for installation of camera and ceiling mounting bracket Reference 2.3.3.1 for the bottom mounting hole position of the camera and 2.3.3.2 for the mounting of the camera and the mounting bracket.
-
Page 20: Adjusting And Operation
DC-SP6531EXD Explosion-proof IR Mini dome camera·Instruction Manual Adjusting and operation 2.4.1 System connection Switch PC Client Network system connection diagram Ex control keyboard Monitor Ex box Analog system connection diagram Figure 2.4.1 System connection Network model device adopts cable network or wireless network as the main network for digital video signal transmission, it’s available for users to monitor or record the videos at any time by... -
Page 21: Cable Specification
DC-SP6531EXD Explosion-proof IR Mini dome camera·Instruction Manual 2.4.2 Cable specification A comprehensive cable is provided on packaged product (see Table 2.4.2 for cable specification), the cable is lead out from the side of the base bottom with minimum length of 2m;... -
Page 22: Inspection And Examination Before Power On
DC-SP6531EXD Explosion-proof IR Mini dome camera·Instruction Manual thick yellow-green grounding thick blue 12V d.c. 24V a.c./d.c.(optional) The color of the cable depends on the configuration. The actual tail cable label shall prevail. The above colors are for reference only. 2.4.3 Inspection and examination before power on Check if the power and network cable are connected correctly, if the toggle switch settings are correct before power on. -
Page 23: Transportation, Storage And Maintenance
DC-SP6531EXD Explosion-proof IR Mini dome camera·Instruction Manual 4.Transportation, storage and maintenance 4.1 Transportation The packaged product can be delivered in all modes of transportation but without direct rain or snow. 4.2 Storage This product can be stored for one year in such environment: no corrosive substance, no obvious vibration, temperature range: 0ºC~+40 ºC and humidity no more than 90%. -
Page 24: Camera/Optical Parameters
DC-SP6531EXD Explosion-proof IR Mini dome camera·Instruction Manual 5. Camera/optical parameters * the following to models are typical options, other models are available after confirmation. ------------------------------------------------------------------------------------------------------- Brand IDIS Model DC-D3645RX 1/2.8″ CMOS Sensor Pixel 5 mega pixels Auto / Manual (1/30 ~ 1/10000), Anti-Flicker, Electronic shutter Slow Shutter (1/7.5, 1/15) - Page 25 DC-SP6531EXD Explosion-proof IR Mini dome camera·Instruction Manual 《Measures for the Administration of Pollution Control of Electronic Information Products》Substances or restriction element identification table Part name Polybrominated Lead Mercury cadmium chromium VI Polybromide diphenyl ethers (Pb) (Hg) (Cd) (Cr VI) (PPB) （PBDE）...
- Page 26 DC-SP6531EXD Explosion-proof IR Mini dome camera·Instruction Manual After Service Dear client: Thank you for select our product, for your right and benefits please read and keep the quality guarantee card carefully. Take the card you can have your product repaired free of charge in its quality guarantee period and favorable service after the quality guarantee period.
- Page 27 DC-SP6531EXD Explosion-proof IR Mini dome camera·Instruction Manual Client： ________________________________ ________ Address: ____________________ __________________________ TEL: _________ FAX: ____________ ZIP CODE: ____________ E-mail： ___________ ___________________________________ Model: ____________________________ ________ S/N: ________________________ ______________ Date of manufacture: __________(YYYY)________(MM)________(DD) Date of purchase: __________(YYYY)________(MM)________(DD) If you have any other suggestions or requirements please write down：...
- Page 28 DC-SP6531EXD Explosion-proof IR Mini dome camera·Instruction Manual EU DECLARATION OF CONFORMITY Product : Explosion-proof IR Mini dome camera Manufacturer : IDIS Co., Ltd Address : 1211, 16, Gasan digital 1-ro, Geumcheon-gu, Seoul, Republic of Korea Base Model : DC-□ Variant Model : DC-E2M156, DC-E5M156, DC-E6M156, DC-E8M156, DC-E12M156, DC-SP6231EXD, DC-SP6531EXD, DC-SP6831EXD.
- Page 29 DC-SP6531EXD Explosion-proof IR Mini dome camera·Instruction Manual...
