- Page 1 ZXDSL 931WII VDSL2 Modem Maintenance Management Manual Version: 3.1 ZTE CORPORATION NO. 55, Hi-tech Road South, ShenZhen, P.R.China Postcode: 518057 Tel: +86-755-26771900 Fax: +86-755-26770801 URL: http://ensupport.zte.com.cn E-mail: support@zte.com.cn...
- Page 2 ZTE CORPORATION is prohibited. Additionally, the contents of this document are protected by contractual confidentiality obligations. All company, brand and product names are trade or service marks, or registered trade or service marks, of ZTE CORPORATION or of their respective owners.
- Page 3 Contents About This Manual ..................I Chapter 1 Safety Precautions..............1-1 Chapter 2 Overview ..................2-1 2.1 Product Introduction ................... 2-1 2.2 Packing List ....................... 2-1 2.3 Product Features....................2-2 2.4 Interfaces ......................2-2 2.5 Indicators......................2-3 2.6 Technical Specifications..................2-4 Chapter 3 Configuration Preparation ............
- Page 4 5.2.1 Basic IEEE 802.11n Configuration ............5-11 5.2.2 SSID Settings ..................5-12 5.2.3 Security ....................5-14 5.2.4 Access Control List................. 5-16 5.2.5 Associated Devices ................5-17 5.3 LAN......................... 5-18 5.3.1 DHCP Server ..................5-18 5.3.2 IPv6 DHCP Server ................. 5-20 5.3.3 DHCP Binding..................5-21 5.3.4 DHCP Conditional Serving Pool ..............
- Page 5 7.3 UPnP ........................ 7-4 7.4 UPnP Port Mapping.................... 7-6 7.5 Port Forwarding ....................7-6 7.6 DNS Service ...................... 7-8 7.6.1 Domain Name..................7-8 7.6.2 Hosts....................... 7-9 7.6.3 DNS ...................... 7-10 7.7 QoS .........................7-11 7.7.1 Basic ......................7-11 7.7.2 Classification ..................7-13 7.8 SNTP ......................
- Page 6 8.6.1 Ping Diagnosis ..................8-15 8.6.2 Trace Route Diagnosis ................8-16 8.6.3 AT Diagnosis..................8-17 8.6.4 Mirror Configuration................8-18 8.6.5 Ethernet Diagnosis ................. 8-19 8.6.6 PPPoE Diagnosis................... 8-20 8.6.7 DNS Diagnosis..................8-20 8.6.8 IP Diagnosis ..................8-21 8.7 WAN Type ....................... 8-22 Figures......................

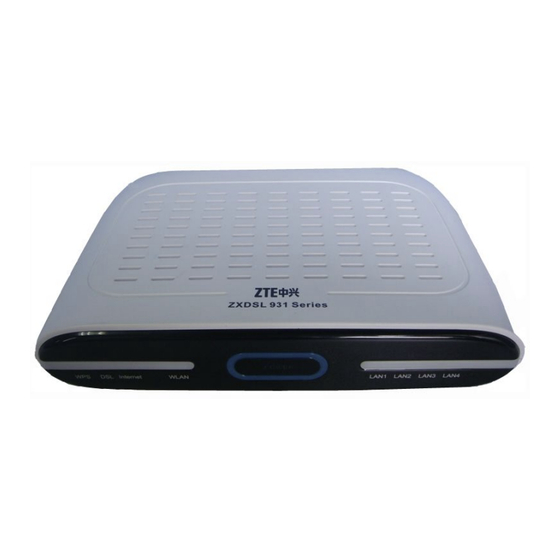

- Page 7 About This Manual Purpose The ZXDSL 931WII is a VDSL2 access device that supports multiple transmission modes. It provides 4 FE Ethernet interfaces, one USB 2.0 interface, and one IEEE 802.11 b/g/n Wi-Fi interface. The ZXDSL 931WII provides broadband Internet service and enterprise network access service through the high-speed or 3G wireless access mode.
- Page 8 Chapter 8, Administration Describes the configuration of TR-069, user management, system management, log management, mobile network management, diagnosis, and WAN type. Conventions ZTE documents employ the following typographical conventions. Typeface Meaning Italics References to other Manuals and documents. “Quotes”...
- Page 9 Chapter 1 Safety Precautions Before using the device, read the following safety precautions. ZTE bears no liability to the consequences incurred by violation of the safety instructions. Read the user manuals before using the device. Pay attention to all the cautions in the user manuals and on the product.
- Page 10 ZXDSL 931WII Maintenance Management Manual This page intentionally left blank. SJ-20110627155502-001|2011-07-10(R1.0) ZTE Proprietary and Confidential...
-
Page 11: Table Of Contents
Technical Specifications .....................2-4 2.1 Product Introduction The ZXDSL 931WII is a VDSL2 service access device. The ZXDSL 931WII provides the broadband Internet service and enterprise network access service through the high-speed or 3G wireless access mode. The ZXDSL 931WII provides four 10/100Base-T Ethernet user interfaces and the wireless access function that complies with the IEEE 802.11b/g/n standard. -
Page 12: Product Features
Separator RJ-45 network cable RJ-11 telephone cable The ZXDSL 931WII VDSL2 Modem Maintenance Management Manual is delivered with the product. If any of the components are incorrect, lost, or damaged, contact the product agency. If you want to change the product, keep the packing box and components. -
Page 13: Indicators
Chapter 2 Overview Figure 2-1 Interfaces and Buttons Table 2-2 lists the description of the ZXDSL 931WII interfaces and buttons. Table 2-2 Interfaces and Buttons Interface/Button Description 12V DC power connector On/Off Power button Reset Reset button When the power is on, use a needle to press the button for over 10 seconds to restore the default settings. -
Page 14: Technical Specifications
The user-side interface is connected to a user-end device and works properly. Flashing There is data flow passing through the user-side interface. 2.6 Technical Specifications Table 2-4 lists the ZXDSL 931WII technical specifications. SJ-20110627155502-001|2011-07-10(R1.0) ZTE Proprietary and Confidential... - Page 15 Dimension 200 mm × 40 mm × 141 mm (Width × Height × Depth) Rated current 1.5 A Rated voltage DC 12 V Operation temperature 0℃–40℃ Operation humidity 20%–90% Storage temperature 20℃–70℃ Storage humidity 5%–95% SJ-20110627155502-001|2011-07-10(R1.0) ZTE Proprietary and Confidential...
- Page 16 ZXDSL 931WII Maintenance Management Manual This page intentionally left blank. SJ-20110627155502-001|2011-07-10(R1.0) ZTE Proprietary and Confidential...
- Page 17 5. Power button 2. LAN interface 4. Reset button 6. Power interface The connections between the ZXDSL 931WII and other devices are as follows: Figure 3-2 shows the connection between the ZXDSL 931WII and the computer. SJ-20110627155502-001|2011-07-10(R1.0) ZTE Proprietary and Confidential...
- Page 18 ZXDSL 931WII Maintenance Management Manual Figure 3-2 LAN Interface Connection Figure 3-3 shows the connection between the ZXDSL 931WII and the separator. Figure 3-3 Separator Connection Figure 3-4 shows the connection between the ZXDSL 931WII and the power supply. SJ-20110627155502-001|2011-07-10(R1.0) ZTE Proprietary and Confidential...
- Page 19 Perform this procedure to configure TCP/IP. Context To ensure that the device accesses the Internet successfully, configure the computer address in the same network segment as the ZXDSL 931WII address. The default network settings for the ZXDSL 931WII are as follows: IP address: 192.168.1.1 Subnet mask: 255.255.255.0...
- Page 20 ZXDSL 931WII Maintenance Management Manual Steps 1. Configure TCP/IP. a. In Local Area Connection Properties, select Internet Protocol (TCP/IP). b. Click Properties to open the Internet Protocol (TCP/IP) Properties dialog box. c. In the Internet Protocol (TCP/IP) Properties dialog box, select Use the following IP address.
