Contents Chapter 1 Safety Guidance ......1 1.1 Safety Check ..........1 1.2 Safety Cautions ......... 2 Chapter 2 Overview ........5 2.1 Features............. 5 2.2 Product Specifications ......6 2.3 Package Check ......... 7 2.4 System Requirement ........ 8 Chapter 3 Installation Preparation .. -
Page 7: Chapter 1 Safety Guidance
Chapter 1 Safety Guidance 1.1 Safety Check Before installing the VDSL2 equipment, check all the below listed items: Electric safety Ensure no inflammable, conductive or moist objects and no ageing-cables around the equipment. Place all electrical appliances safely. Equipment position ... -
Page 8: Safety Cautions
ZXHN H168N User’s Manual Ensure the power supply is available. The fluctuation range of input voltage should be in the range of ±10%. Do not share the power socket with other electrical devices. 1.2 Safety Cautions Please pay attention to the following cautions: ... - Page 9 ZXHN H168N User’s Manual Do not place any object on the equipment. The equipment must be kept dry and clean. Ensure equipment environment ventilation and rainproof capability. To protect the equipment against lightning and thunderstorm, please remove the power plug and all connection cables.
- Page 10 ZXHN H168N User’s Manual Keep all components and accessories of the equipment away from the children. Note: Please read the above safety guidance carefully before equipment use. Users should assume responsibilities for any accidents due to incompliance with the above instructions.
-
Page 11: Chapter 2 Overview
(in-home) and commercial (offices, apartments, hotels, warehouses) network applications. 2.1 Features The ZXHN H168N is a VDSL2 MODEM. It provides the pure bridge function and supports the following features: ITU-T G.993.2 VDSL2 standard and ITU-T G.992.5 DSL2+ standard. -
Page 12: Product Specifications
ZXHN H168N User’s Manual It supports WLAN with high-speed data transfer rates up to 300 Mbps, compatible with IEEE 802.11b/g/n, 2.4 GHz compliant equipment It supports IEEE802.3 and IEEE802.3u. It supports speed auto-negotiation. It supports Half duplex/Full duplex. -
Page 13: Package Check
ZXHN H168N User’s Manual Environmental temperature: -5°C-45°C (23 °F-113°F) Humidity: 5% - 95% (non-condensing) Power specification Power adapter: Input: AC 100-240V, 50/60 Hz Output: DC 12V, 1.5A Certification 2.3 Package Check ×1 ZXHN H168N ×1 Splitter ×1... -
Page 14: System Requirement
CD (Optional) Note: for your information only, please refer to the actual product. Note: Please use a power adapter that matches the ZXHN H168N package. 2.4 System Requirement Before installing the ZXHN H168N, please check the following items. VDSL Services Subscription... - Page 15 ZXHN H168N User’s Manual Computer configuration Please make sure that the system has been equipped with the 10M/100M Ethernet adapter and supports the TCP/IP protocol. Because VDSL can be used for broadband access and involves a wide range of multimedia services, you are...
-
Page 16: Chapter 3 Installation Preparation

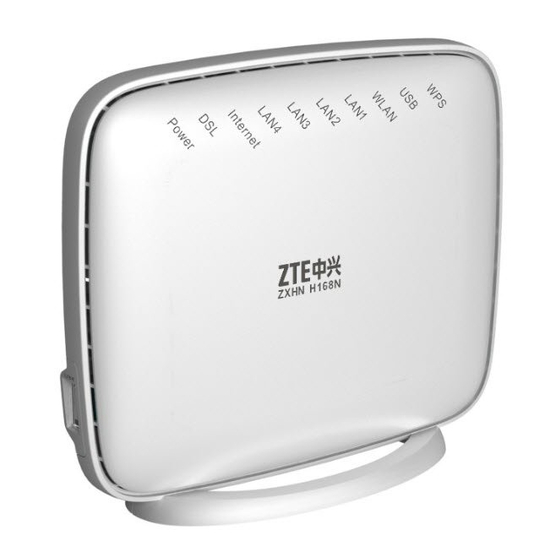

Chapter 3 Installation Preparation 3.1 Hardware Description Front panel Figure 3.1-1 Front Panel of the ZXHN H168N Table 3.1-1 Descriptions of the LEDs on the Front Panel Function Color Status Definition No device connected to the USB port. Green A USB device is connected. - Page 17 ZXHN H168N User’s Manual Function Color Status Definition The MODEM is in the non-communication state. The MODEM is in training Green state. Flash The MODEM is in the communication state. WPS function is OFF. WPS function is in negotiation status.
-
Page 18: Rear Panel
Power Green/Red Power ON, HW Test ok. Green Rear panel Figure 3.1-2 Rear Panel of the ZXHN H168N Table 3.1-2 Description of Interfaces on the Rear Panel Interface Function RJ-11 port：Using the telephone line to connect the modem with the VDSL2 cable or splitter. -
Page 19: Hardware Connection
ZXHN H168N User’s Manual Interface Function RJ-45 port: It is used to connect the modem to other LAN1-LAN4 network devices. During power ON period, hold on this button for more than 5 seconds to reset the current settings to the... - Page 20 Connect the network cables: Insert the RJ-45 Ethernet cable connector into the Ethernet interface of the ZXHN H168N, and connect its other terminal to the Ethernet adapter of the customer computers or ports of other network devices. Connect the splitter...
- Page 21 LINE interface of the splitter. Connect the power Connect one terminal of the power adapter to the POWER interface of the ZXHN H168N, and the other terminal to the socket on the wall, and then switch on the power of the ZXHN H168N equipment.
- Page 22 ZXHN H168N User’s Manual indicates that the computer and the ZXHN H168N equipment are correctly connected. Check the telephone cable connection...
-
Page 23: Appendix A Faqs
ON. First make sure that you have inserted the power adapter of the ZXHN H168N into a working power socket and that the ZXHN H168N has been powered ON (the switch button is pressed down). If the indicators are still OFF after confirmation of the above items, may be the hardware is damaged. - Page 24 Installing a telephone directly before the splitter will lead to connection failure between the ZXHN H168N and the device at central office side, or an Internet access failure, or a slow connection speed. Connecting other electronic devices between the user end...
- Page 25 ZXHN H168N User’s Manual Problem and Troubleshooting First check whether the ZXHN H168N is in the normal state (Check the indicators according to this user manual). If yes, the computer or application network may be faulty. This is unrelated with VDSL2. If the VDSL2 MODEM is abnormal, check the status of indicators one by one to remove the fault.
- Page 26 ZXHN H168N User’s Manual Problem and Troubleshooting If the VDSL2 suddenly fails to be synchronized (link down) during application, usually the Link indicator on the MODEM will not be ON. It is suggested to check the following steps one by one: 1.
- Page 27 ZXHN H168N User’s Manual Problem and Troubleshooting 7. If the problem is due to the end office equipment failure, call the operator to confirm it. 8. Too long connection cable between the splitter and VDSL2 MODEM may cause poor anti-interference performance and synchronization difficulty.
