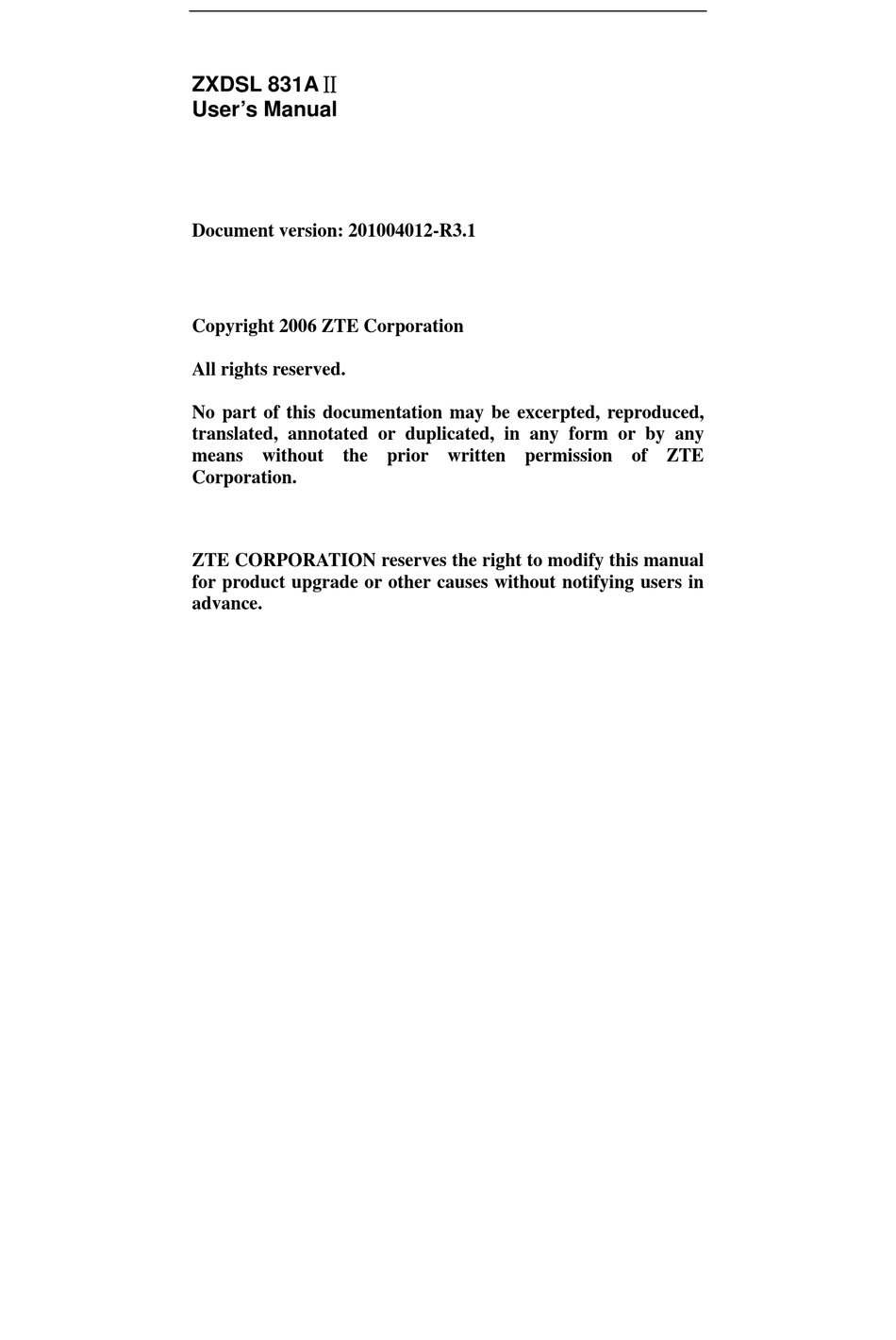

ZXDSL 831AⅡ
User's Manual
Document version: 201004012-R3.1
Copyright 2006 ZTE Corporation
All rights reserved.
No part of this documentation may be excerpted, reproduced,
translated, annotated or duplicated, in any form or by any
means without the prior written permission of ZTE
Corporation.
ZTE CORPORATION reserves the right to modify this manual
for product upgrade or other causes without notifying users in
advance.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZXDSL 831A II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zte ZXDSL 831A II

Summary of Contents for Zte ZXDSL 831A II

  • Page 1 No part of this documentation may be excerpted, reproduced, translated, annotated or duplicated, in any form or by any means without the prior written permission of ZTE Corporation. ZTE CORPORATION reserves the right to modify this manual for product upgrade or other causes without notifying users in advance.
  • Page 2 Limited warranty ZTE warrants that, for one year from the date of delivery by ZTE to purchaser's designated carrier, the Equipment will remain free from defects in design, material and workmanship under normal use and service and will conform in all material respects to the applicable specifications set forth in purchase order or agreement;...
  • Page 3 ZXDSL 831AⅡ User’s Manual other cause beyond the range of normal usage for equipments. End User shall assure that Equipment is installed and maintained by ZTE or ZTE-certified individuals in accordance with ZTE’s certification procedures; provided that if End User causes or permits services to be provided by individuals who are not ZTE-certified, the Warranty shall be void as to all Equipment serviced in breach of this sentence.
  • Page 4 End User agrees that End User will receive confidential or proprietary information (“Confidential Information”) in connection with the purchase and deployment of ZTE Equipment. End User will not disclose ZTE’s Confidential Information, will use it only for purposes for which it was disclosed, and must treat it with the same degree of care as it does its own similar information, but with no less than reasonable care.

  • Page 5: Table Of Contents

    Contents Chapter 1 Safety Guidance............1 1.1 Safety Check..................1 1.2 Safety Cautions..................1 Chapter 2 Overview ...............3 2.1 Features....................3 2.2 Product Specifications ................4 2.3 Package Check..................4 2.4 System Requirement................5 Chapter 3 Installation Preparation..........6 3.1 Hardware Description ................6 3.2 Hardware Connection ................

  • Page 6: Chapter 1 Safety Guidance

    Chapter 1 Safety Guidance 1.1 Safety Check Ⅱ Before installing the ZXDSL 831A ADSL equipment, you must check the following items. 1 Electric safety Ensure that there are no inflammable, conductive or moist objects around. Check whether the cables are aged and whether other electrical appliances are placed stably.
  • Page 7 ZXDSL 831AⅡ User’s Manual Use the power adapter accompanied in the package. Rather than directly connecting phones to the ADSL line, led them out from the phone interface of the splitter. Never place any objects on the equipment. Keep the equipment dry, ventilated and rainproof, and clean. Unplug the power and all connection cables in case of thunderstorms, to protect the equipment against lightning.

  • Page 8: Chapter 2 Overview

    Chapter 2 Overview The ZXDSL 831AⅡ is an ADSL access device that allows multiple line transmission modes. The equipment provides a 10/100Base-T Ethernet interface and a USB port in a local LAN device. Through the high-speed Ⅱ ADSL access service, the ZXDSL 831A can provide the broadband Internet service or enterprise network access service for users.

  • Page 9: Product Specifications

    ZXDSL 831AⅡ User’s Manual 2.2 Product Specifications Environmental requirements Environmental temperature: 0°C-40°C (32 °F-104°F) Humidity: 20% - 90% (non-condensing) Power specification Power adapter: Input: AC 100-240V ±10%, 50 Hz Output: DC 12V, 500mA Certification Note: In some countries or regions, a DC power adapter may be used instead of an AC power adapter in accordance with customers' request.

  • Page 10: System Requirement

    ZXDSL 831AⅡ User’s Manual ×1 Quality Warranty Card ×1 Certificate of Quality × 1 Note: for your information only, please refer to the actual product. Note: Please use a power adapter that matches the ZXDSL 831AⅡ package. 2.4 System Requirement Ⅱ...

  • Page 11: Chapter 3 Installation Preparation

    Chapter 3 Installation Preparation 3.1 Hardware Description Front panel Figure 3.1-1 Front Panel of the ZXDSL 831AⅡ Table 3.1-1 Descriptions of the LEDs on the Front Panel LED No. Color Status Note Power off Red Flash Power on self-test or software upgrade Power Green/Red Green On Power is on and the device operates normally...

  • Page 12: Hardware Connection

    ZXDSL 831AⅡ User’s Manual LED No. Color Status Note The USB interface is in the communication status The Ethernet interface is in the non-communication status Ethernet Green Flash Data is received or sent on the Ethernet interface The Ethernet interface is in the communication status Rear panel Figure 3.1-2 Rear Panel of the ZXDSL 831AⅡ...
  • Page 13 ZXDSL 831AⅡ User’s Manual Connection 1 The following connection method is recommended. Ⅱ Figure 3.2-1 shows the connection between a ZXDSL 831A , computer, splitter and telephones. Ⅱ Figure 3.2-1 ZXDSL 831A Connection Schematic Diagram (No Phone sets are Installed Before the Splitter) Connection 2 Figure 3.2-2 shows the connection when the splitter is installed near the...
  • Page 14 ZXDSL 831AⅡ User’s Manual Ⅱ Figure 3.2-2 ZXDSL 831A Connection Schematic Diagram (Phone sets are Installed Before the Splitter) Note: In the circumstance where the first connection example is not applicable and you choose to use the second example, you must install a MicroFilter on the telephone cable (as illustrated in Figure 3.3-2, do not use a splitter to replace the MicroFilter).
  • Page 15 ZXDSL 831AⅡ User’s Manual terminal to the Ethernet adapter of the customer computers or ports of other network devices. 3 Connect the plug of the USB cable into the USB port of the ZXDSL 831AⅡ, connect the other end of the USB cable to the USB port of the PC. 4 Connect the splitter The splitter has three interfaces, which are described as follows: LINE: Connect the user telephone cable (RJ11 interface).
  • Page 16 ZXDSL 831AⅡ User’s Manual The telephone cable is correctly connected if the received telephone signals are normal and free of noise. And the telephone will not be affected no Ⅱ matter whether the ZXDSL 831A powered on or off.

  • Page 18: Chapter 4 Install Usb Driver

    Ethernet Interface and USB Interface to a same computer. When using USB Interface, you must install the drivers. After installation, a virtual network card, "ZTE USB Remote NDIS Device", will be added into the computer. It has all the functions of a real network card, and it makes...
  • Page 19 ZXDSL 831AⅡ User’s Manual For Windows XP The steps are as follows: Connect USB port of the ZXDSL 831AⅡ to USB port on your PC with the USB cable that comes with the ZXDSL 831AⅡ. plug in the power cord, and turn on the power. Once the new hardware is detected as shown in the dialog box below, Choose "No, not this time".
  • Page 20 ZXDSL 831AⅡ User’s Manual Figure 4.1-2 The dialog box is as shown in Figure 4.1-3. Choose "Search for the best driver in these locations", and Click "Next" button.
  • Page 21 ZXDSL 831AⅡ User’s Manual Figure 4.1-3 A new box will pop up for selection of the location of the driver. If the location is incorrect please click "Browse" and select the right location, then click "Next" button. As shown in Figure 4.1-4. Figure 4.1-4 Click "Continue Anyway"...
  • Page 22 Device" is complete. Click "Finish" button. As shown in Figure 4.1-6. Figure 4.1-6 After the steps above, you will find there is a new item called "ZTE USB Remote NDIS Device" in "Control Panel"-"System"-"Hardware"-"Device Manager"-"Network adapters". As shown in Figure 4.1-7. And a new "Local...
  • Page 23 ZXDSL 831AⅡ User’s Manual Area Connection X" is added in "Network Connections". As shown in Figure 4.1-8. Figure 4.1-7 Figure 4.1-8 Note: If the USB device cannot be detected by the system, check the USB cable between the PC and the device, and make sure that the device is powered on.

  • Page 24: Usb Driver Uninstall

    ZXDSL 831AⅡ User’s Manual 4.2 USB Driver Uninstall For Windows XP Right click the icon of "My Computer" on the desktop, choose "Properties" item on menu pop up. As shown in Figure 4.2-1. Figure 4.2-1 Click "Device Manager" button in "Hardware" page. As shown in Figure 4.2-2.
  • Page 25 ZXDSL 831AⅡ User’s Manual Figure 4.2-2 Double Click the "ZTE USB Remote NDIS Device" in "Device Manager" dialog box. As shown in Figure 4.2-3 Figure 4.2-3...
  • Page 26 ZXDSL 831AⅡ User’s Manual Click "Uninstall" button in "Driver" page. As shown in Figure 4.2-4. Figure 4.2-4 Click "OK" when the dialog box shown as below to finish the uninstall. Figure 4.2-5...

  • Page 27: Appendix A Faqs

    Appendix A FAQs Ⅱ All indicators are off after the ZXDSL 831A equipment is powered on Ⅱ First make sure that you have inserted the power adapter of the ZXDSL 831A into Ⅱ a working power socket and that the ZXDSL 831A has been powered on (the switch button is pressed down).
  • Page 28 ZXDSL 831AⅡ User’s Manual Password verification failure MODEM synchronization and connection are normal. However, sometimes the password fails to be verified. 1. Note that the account and password are case sensitive and some accounts contain a domain name. 2. Virtual dialup software. It is possible that sometimes the virtual dialup software is faulty, or conflict with other software in the operating system.
  • Page 29 ZXDSL 831AⅡ User’s Manual The authenticated user names and passwords cannot be re-authenticated? This problem may be due to the following reasons: 1. Your account has expired or you are a defaulting subscriber (please pay the deficit sum). 2. You move into a new area. Because the account and the path PVC are bundled by some operators, your previous account and password cannot be authenticated after you changed your path.

  • Page 30: Appendix B Standard Compliance

    Only supported by the ZXDSL 831AⅡ ITU G.992.5 Annex A Only supported by the ZXDSL 831AⅡ ITU G.994.1 ZTE’s equipment complies with the following national standards of the PRC: Standard No. Standard Name Safety of Information Technology Equipment GB 4943-2001 Information Technology Equipment –...
  • Page 31 Customer Information 1. This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On bottom of this equipment is a label that contains, among other information, a product identifier of ZTEDL05BZXDSL831 . If requested, this number must be provided to the telephone company.
