Rohl AQUITAINE U.1323 Manual

Advertisement

Quick Links

IMPORTANT WARNING!!
PLEASE ENSURE THAT THE RECOMMENDED HEATER TANK UNIT (U.1998) AND FILTER KIT (U.1106)IS
USED.
TO AVOID PRESSURISED BOILING WATER AND TO COMPLY WITH US REGULATIONS THIS IS AN OPEN
VENTED PRODUCT.
DO NOT PLUG IN THE UNIT UNTIL ALL WATER CONNECTIONS HAVE BEEN MADE AND THE TANK HAS
FILLED COMPLETELY THEN FLUSHED TO REMOVE AIR.
*IMPORTANT!! ENSURE A PRESSURE REDUCING VALVE (PRV) IS USED IN-LINE WITH COLD INLET AND
IDEALLY SET TO 43.5PSI (3BAR). FAILURE TO DO SO MAY RESULT IN REDUCED PRODUCT PERFORMANCE.*
INSTANT HOT WATER TEMPERATURES CAN REACH 210°F. THE FAUCET IS DESIGNED WITH FEATURES
TO MINIMISE RISK AND POTENTIAL INJURY; TWO ACTION OPERATION, SPRING BACK VALVE AND
DELAYED DELIVERY; BUT SHOULD BE OPERATED OR SUPERVISED BY A RESPONSIBLE ADULT.
PLEASE READ AND FULLY UNDERSTAND THE HEATER TANK INSTRUCTIONS BEFORE USE.

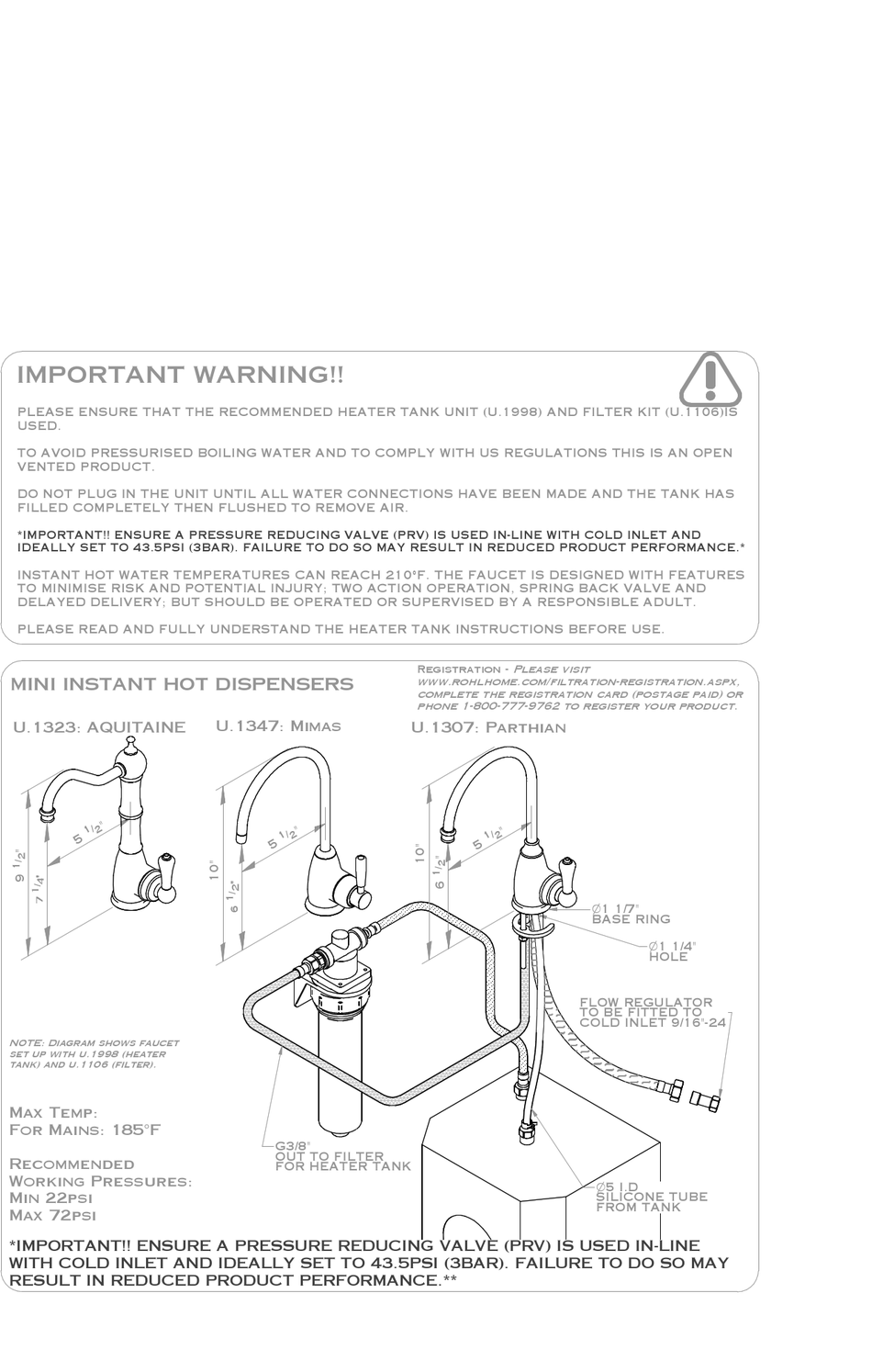

MINI INSTANT HOT DISPENSERS
U.1323: AQUITAINE
NOTE: Diagram shows faucet
set up with u.1998 (heater
tank) and u.1106 (filter).
9.28749
Max Temp:
For Mains: 185°F
Recommended
Working Pressures:
Min 22psi
Max 72psi
*IMPORTANT!! ENSURE A PRESSURE REDUCING VALVE (PRV) IS USED IN-LINE
WITH COLD INLET AND IDEALLY SET TO 43.5PSI (3BAR). FAILURE TO DO SO MAY
RESULT IN REDUCED PRODUCT PERFORMANCE.**
Issue 1
Registration -
www.rohlhome.com/filtration-registration.aspx,
complete the registration card (postage paid) or
phone 1-800-777-9762 to register your product
U.1347: Mimas
U.1307: Parthian
G3/8"
OUT TO FILTER
FOR HEATER TANK
Please visit
1 1/7"
O
BASE RING
1 1/4"
O
HOLE
FLOW REGULATOR
TO BE FITTED TO
COLD INLET 9/16"-24
O
5 I.D
SILICONE TUBE
FROM TANK
.
