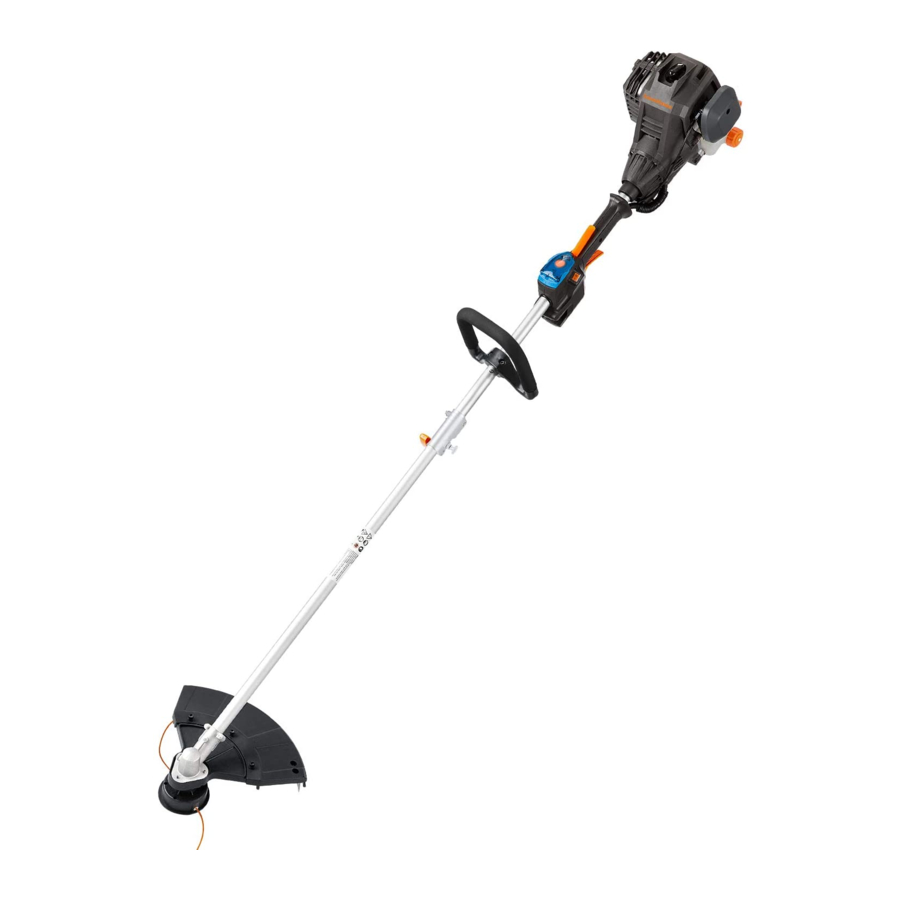

LawnMaster NPTGSP2517A Service Manual

25cc 2-cycle grass trimmer
Hide thumbs Also See for NPTGSP2517A:
Table of Contents

Advertisement

Quick Links

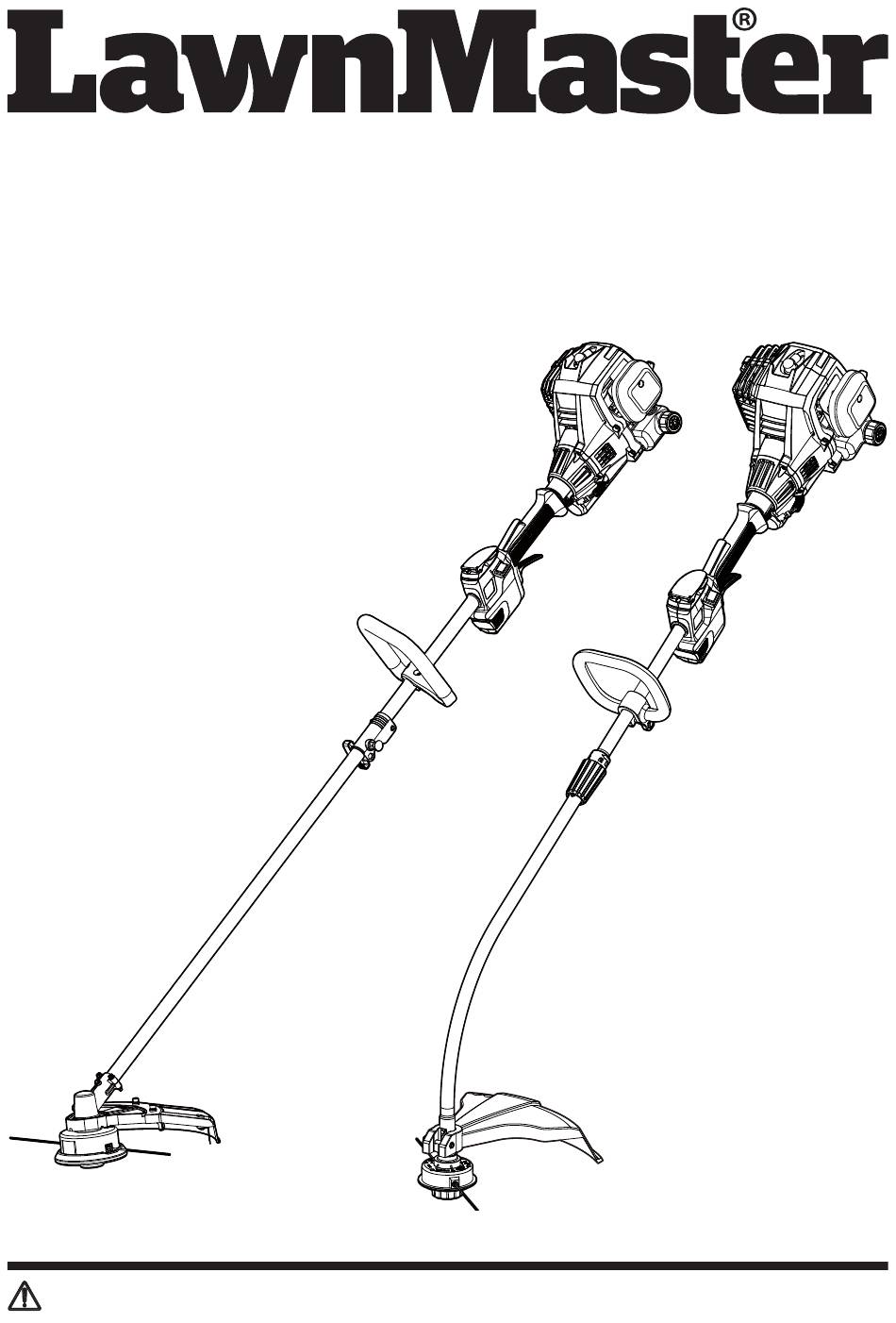

SERVICE MANUAL
25cc 2-Cycle Grass Trimmer
NPTGSP2517A
NPTGCP2517B
Read all safety rules and instructions carefully before servicing this tool.
601 Regent Park Court Greenville, SC 29607, 1-866-384-8432
