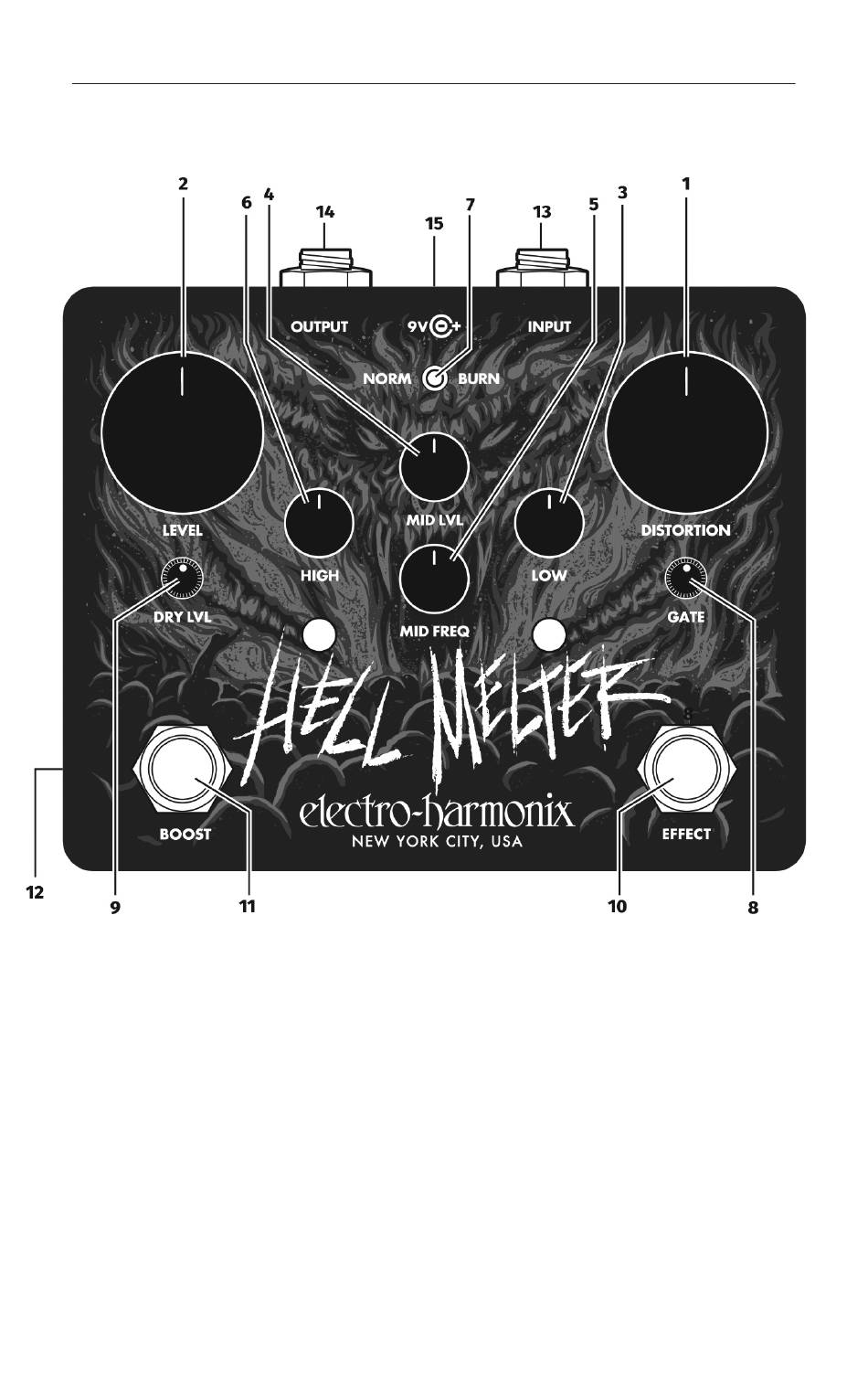

Controls and Connections

1. DISTORTION Knob Adjusts the amount of distortion and saturation, from a
light grind to a roaring chainsaw. Turn clockwise for more distortion.
2. LEVEL Knob Adjusts the overall output level of the Hell Melter. Turn clockwise
for more output. More output is available than on the original 'chainsaw' circuit.
3. LOW Knob Provides active boost or cut to the bass frequency range. The middle
position leaves bass frequencies flat.
4. MID LVL Knob Provides active boost or cut to the mid frequency, with the
frequency set by the MID FREQ knob. The middle position leaves mid frequen-
cies flat.
5. MID FREQ Knob Adjusts the frequency boosted or cut by the MID LVL knob.
Turn the knob clockwise to increase the frequency.
