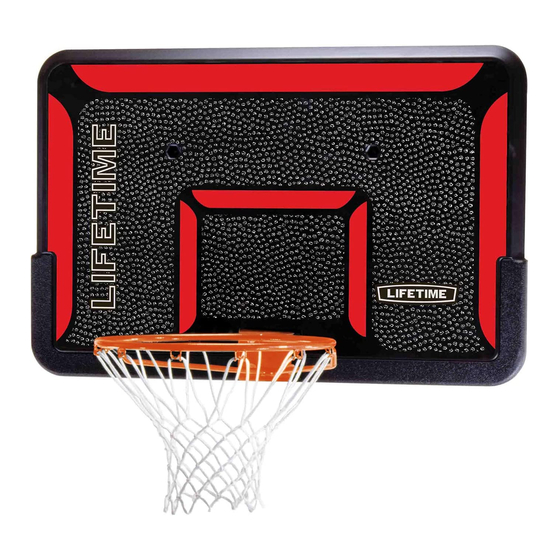

BACKBOARD & RIM
COMBO KIT
MODEL 3823
BEFORE ASSEMBLY:
• Before starting, decide where to mount the system.
A mounting kit is required for this product and is
available through our customer service department
(see page 6).
• At least 2
people are recommended for setup
!
Mounting Kit Not Included
SAVE THIS INSTRUCTION IN THE EVENT THE MANUFACTURER HAS
TO BE CONTACTED FOR REPLACEMENT PARTS.
TOOLS REQUIRED
1/2" (≈13 mm)
(x2)
QUESTIONS?
CONTACT LIFETIME CUSTOMER SERVICE:
Dial 1-800-225-3865
7:00 am-5:00 pm (Monday-Friday) MST
and 9:00 am-1:00 pm Saturday MST
(x1)
(x1)
Live Chat: www.lifetime.com/customerservice
(click on the "LIVE CHAT" tab)
ASSEMBLY INSTRUCTIONS
For Customer Service in Mainland
Europe and the United Kingdom,
E-mail: cs@lifetimeproducts.eu
TABLE OF CONTENTS
Icon Legend................................2
Warnings & Notices.....................3
Rim-to-Backboard Assembly.........4
Kits & Accessories......................6
Cleaning...................................7
Registration...............................7
Warranty...................................8
MODEL# AND PRODUCT ID
(you will need both when contacting us)
Model Number: 1044
Product ID:
