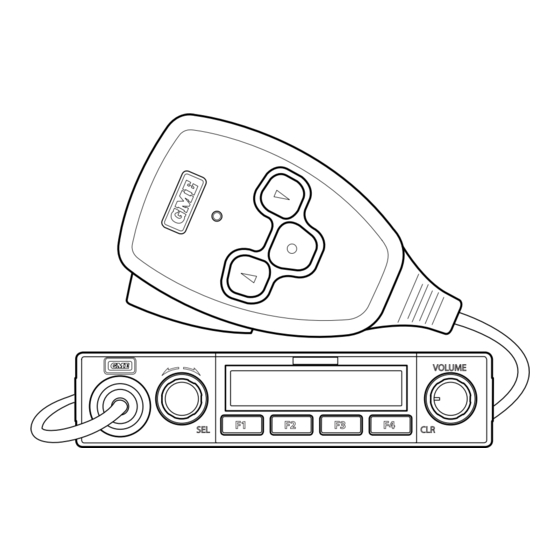

CM60 SERIES
PROGRAMMING MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM60 Series and is the answer not in the manual?

Questions and answers

Related Manuals for GME CM60 Series

Summary of Contents for GME CM60 Series

  • Page 1 CM60 SERIES PROGRAMMING MANUAL...
  • Page 2 Preface CM60 Series Programming Manual Copyright Notice Standard Communications Pty Ltd reserves all rights to this document and the information contained herein. Reproduction, use or disclosure to third parties without the express permission is strictly prohibited. © 2018 Standard Communications Pty Ltd, Sydney, Australia...
  • Page 3 Preface CM60 Series Programming Manual This radio complies with the following RF energy exposure standards and guidelines: United States Federal Communications Commission, Code of Federal Regulations; 47CFR • part 2 sub-part J American National Standards Institute (ANSI)/Institute of Electrical and Electronic •...
  • Page 4 Warranty This warranty against defects is given by Standard Communications Pty Ltd ACN 000 346 814 (We, us, our or GME). Our contact details are set out in clause 2.7. 1. Consumer guarantees: Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
  • Page 5 (f) goods where the serial number has been removed or made illegal. 4. Warranty period: We provide the following warranty on GME and Kingray products. No repair or replacement during the warranty period will renew or extend the warranty period past the period from original date of purchase.
  • Page 6 Preface CM60 Series Programming Manual Record of Amendments Rev. Date Description March 2018 Original issue. KP/PMV March 2018 Minor updates. © 2018 Standard Communications Pty Ltd. All rights reserved. 07 March 2018 50078-2...

  • Page 7: Table Of Contents

    Table of Contents CM60 Series Programming Manual Table of Contents Table of Contents .......................... 7 Configuration ..........................9 Overview ........................... 9 Connecting to the Radio ......................9 Hardware ..........................9 LS1-USB Programming Cable ..................... 10 Checking the COM Port ..................... 12 Drivers ..........................
  • Page 8 Align ..........................35 Console Interface ........................36 Physical Interface....................... 36 Terminal Connection ......................37 Encryption ..........................38 Overview ..........................38 Acronyms ........................... 38 GME Key Fill Device ......................39 © 2018 Standard Communications Pty Ltd. All rights reserved. 06 March 2018 50078-2...

  • Page 9: Configuration

    All necessary programming software, firmware updates and documentation are available from the GME dealer support site at http://dealersupport.gme.net.au/dealer Connecting to the Radio The sections below detail the hardware and drivers required to connect a CM60 series radio to a Windows PC or laptop. Hardware The following hardware is required to connect the radio to the Windows PC or laptop: CM60 series radio.

  • Page 10: Ls1-Usb Programming Cable

    The LS1-USB lead is not a standard USB to RS232 serial adapter. The attached 9-pin D connector is used to connect a range of custom GME radio interface adapter leads. These leads allow the LS1-USB cable to interface to various GME radios with different connectors.
  • Page 11 Configuration CM60 Series Programming Manual Radio Power Remote Head Radio test set LS1-USB LS002 Figure 2 - Connecting the remote control head to the computer Power Radio Radio test set LS1-USB LS003 Figure 3 - Connecting the radio (in the extended setup) to the computer ©...

  • Page 12: Checking The Com Port

    Configuration CM60 Series Programming Manual Checking the COM Port Connection to the radio may be established without the need to check the COM port. If the programmer is unable to communicate with the radio, check to ensure that the correct COM port is used.

  • Page 13: Drivers

    Configuration CM60 Series Programming Manual Drivers The drivers required for the radio and computer interface, for supported operating system versions, can be downloaded from the following website: http://www.ftdichip.com/Drivers/VCP.htm Select and save the latest driver download file for your operating system to your computer. A ‘Setup Executable’...

  • Page 14: Security

    CM60 Series Programming Manual Security The CM60 radio programmer and GME key fill device needs a HASP USB security key to be plugged into a USB port on the computer when the programmer runs. There are two types of security keys: Version 1 •...

  • Page 15: Update Hasp Security Usb Key

    CM60 programmer screen. To update an expired security key: Click File in the toolbar, and select HASP Key Management. The GME provisioning tool opens, displaying the current HASP key features, and key ID.

  • Page 16: Bluetooth Connectivity

    To generate a C2V file: 1. Click the Save Provision File (C2V) button. 2. Save the file and send to GME. GME will reply back with an updated .V2C file, typically on the same day. To manually apply the updated V2C file: 1.

  • Page 17: Firmware Upgrade

    CM60 Series Programming Manual Firmware Upgrade This section covers the upgrades of the firmware using GME CM60 Flash Updater Programmer version DSO044.X.XX. The firmware upgrades for the radio and the MSM are installed separately. Ensure that the versions of the radio and MSM firmware are compatible. Radios can be rolled back to an older version of firmware if necessary.
  • Page 18 CM60 Series Programming Manual To upgrade the firmware: 1. Turn the CM60 radio on. Click Start in the CM60 Flash Updater. The Load data from GME encrypted binary file displays. 2. Select the appropriate *.geb file to flash to radio. Click Open. The Firmware Image Selection window displays.
  • Page 19 Configuration CM60 Series Programming Manual Figure 9 - Firmware Flash Successful 5. Select Info on the toolbar menu and click Check radio firmware to verify radio firmware version. Figure 10 - Firmware Version Display © 2018 Standard Communications Pty Ltd. All rights reserved.

  • Page 20: Cm60 Programmer (Ds0042.X.xx)

    CM60 Series Programming Manual CM60 Programmer (DS0042.x.xx) The CM60 series radio programmer is used to configure and align the radio. The programmer version (DS0042.x.xx) is displayed at the top left of the programmer window. x.xx represents the programmer version that’s downloaded and used by the customer.
  • Page 21 Configuration CM60 Series Programming Manual 3. Click on Program on the toolbar menu. Select Serial Port Auto Detect or Serial Port Settings to search for available ports and the first detectable radio. If auto detect setup is not used ensure that the correct COM port is selected.

  • Page 22: Programming Software Operation

    Configuration CM60 Series Programming Manual Programming Software Operation This section covers the basic operation of the CM60 programming software. When the radio is placed in read/write conditions, the local head will display as Prog. Reading a configuration from the radio To read a configuration from the radio: 1.

  • Page 23: Writing A Configuration To The Radio

    Configuration CM60 Series Programming Manual Writing a configuration to the radio To write a configuration to the radio: Click the Write Radio button in the main window to write the configuration to the radio. The Completed EEPROM Write message displays. Click Close when writing to the radio is completed.

  • Page 24: Reading A Configuration From A File

    Configuration CM60 Series Programming Manual Reading a configuration from a file To read a configuration from a file: 1. Click Read File in the main window to read the configuration file. The Open dialog box displays. Figure 17 - Read File Window 2.

  • Page 25: Writing A Configuration To A File

    Configuration CM60 Series Programming Manual Writing a configuration to a file To write a configuration to a file: 1. Click Write File in the main window. The Save radio config dialog box displays. Figure 19 - Write File Window 2. Navigate to the desired area or folder, and enter a name for the file.

  • Page 26: Settings

    Configuration CM60 Series Programming Manual Settings The radio settings and parameters can be configured by selecting any of the following buttons on the left panel of the programmer interface: Zones/Channels • P25 Settings • User Interface • Radio Settings •...
  • Page 27 Configuration CM60 Series Programming Manual Figure 20 - Configuring Zones 3. Click on the Name field to enter a zone name. Zone names are limited to 11 characters. Repeat the process for each zone to be used. 4. Click the check box in the Enabled? column for the zones you want to use.

  • Page 28: Adding An Analog Channel

    Configuration CM60 Series Programming Manual 6. Check the Enable zones box to enable multiple zones if needed. If unchecked, all channels will be listed and displayed in sequential order. Import/Export channels of the selected type (filter) using a .csv file. In order to use the correct format, first export the current channels, modify/add as required, and then import.

  • Page 29: Adding A P25 Conventional Channel

    Configuration CM60 Series Programming Manual Adding a P25 conventional channel To add a P25 conventional channel: 1. Click the Zones/Channels button in the main window. 2. Select the Channels tab and right-click in the window to bring up the Channels menu.

  • Page 30: Adding A P25 Trunking Channel

    Configuration CM60 Series Programming Manual Adding a P25 Trunking Channel To add a P25 trunking channel: 1. Click the Zones/Channels button in the main window. 2. Select the Channels tab and right-click in the window to bring up the Channels menu.

  • Page 31: Adding A Group Channel (Voting Groups And Scan Groups)

    Configuration CM60 Series Programming Manual Adding a group channel (voting groups and scan groups) To add a group channel: 1. Click the Zones/Channels button in the main window. Select the Channels tab and right- click in the window to bring up the Channels menu.

  • Page 32: P25 Settings

    Configuration CM60 Series Programming Manual P25 Settings The following tabs and settings can be configured on the P25 Settings dialog: P25 Parameters • Trunked Systems • Call Services • Message Services • Emergency Services • Security • SNDCP Data transports •...

  • Page 33: User Interface

    Configuration CM60 Series Programming Manual User Interface The following tabs and settings within can be configured on the User Interface dialog: Menu Items • Programmable Keys • Figure 26 - User Interface Tab © 2018 Standard Communications Pty Ltd. All rights reserved.

  • Page 34: Radio Settings

    Configuration CM60 Series Programming Manual Radio Settings The following tabs and settings within can be configured on the Radio Settings dialog: Auxiliary Connection Settings • General Options • CTCSS/DCS • Selcall • Squelch Settings • User Storage • Ring Tones •...

  • Page 35: Contacts/Lists

    Configuration CM60 Series Programming Manual Contacts/Lists The following tabs and settings within can be configured on the Contacts/Lists dialog: P25 units • P25 groups • P25 PSTN • Selcall • DTMF • Recent calls • Recent messages • Messages •...

  • Page 36: Console Interface

    Configuration CM60 Series Programming Manual Console Interface The CM60 console presents an AT interface to control and interact with the radio. At command entry is performed in General Options of Radio Setting. Physical Interface The console has a 12V RS-232 level interface available through the DB9 connector on the cable 41B0266.

  • Page 37: Terminal Connection

    Configuration CM60 Series Programming Manual Terminal Connection Use a terminal program such as Putty or TeraTerm to connect to the radio. The connection details are shown in the table below: Table 2 - Terminal Connections Type Description Speed 9600 baud...

  • Page 38: Encryption

    Overview This section describes the Key Fill Device (KFD) process used for loading encryption keys onto the CM60 Series P25 radios. It includes all the information necessary to create and load encryption keys. It explores all menu options and features.

  • Page 39: Gme Key Fill Device

    CM60 Series Service Manual GME Key Fill Device Using the GME Key Fill Device Double click on the application to run or use the GME key fill device. Main Menu The GME KFD application software is divided into seven functional parts: Toolbar menu.
  • Page 40 Release Serial Port To release a serial port connection: Select Release Serial Port. This allows other software from the CM60 series software suite (such as the Flash Updater, Programmer, etc.) to use the same serial port to interface with the radio.
  • Page 41 Encryption CM60 Series Service Manual Serial Port Settings To manually select a serial port: Select Serial Port Settings. This may be necessary when selecting a particular radio while connected to several COM ports. Refer to the Troubleshooting section for how to discover the radio COM port.
  • Page 42 Encryption CM60 Series Service Manual Tab Options The three tab options are listed below: Key Sets • History • Settings • Key Sets The Key Sets tab is the primary tab and is the default main menu tab. This tab is used to enter and load keys from Key Sets.
  • Page 43 Encryption CM60 Series Service Manual History History displays the previous key operations. The Status column shows a successful write to the radio. Figure 34 - Key Fill Device History Tab Settings The settings tab allows access to change program defaults including encryption type, key details and connection settings.
  • Page 44 Encryption CM60 Series Service Manual Key Sets Section Creating a Key Set: 1. Click the New blue button located in the Key Sets section to create a new Key Set. A pop- up window requests the Key Set Name. 2. Fill in the name and click OK.
  • Page 45 Encryption CM60 Series Service Manual Figure 38 - Key Fill Device Password Strength Dialog Box 5. When the key set file is created it appears in the drop down list of key sets. The drop down shows all the key sets in the user defined directory for the key fill device. When copying an external key set into the directory either restart the key fill device or press Refresh to show the new file.
  • Page 46 Encryption CM60 Series Service Manual 4. Enter preferred key name. 5. Select encryption type (DES or AES). 6. Enter preferred IDs (key or SLN). HEX mode or INT mode can be selected for both the Key ID and the SLN ID. Values outside of the permitted range cannot be entered.
  • Page 47 Encryption CM60 Series Service Manual Selecting a Key Set When a key set is selected from the drop down list the user is prompted for the password for that key set file. If the password is incorrect, the key set will not open and an error message displays.
  • Page 48 Encryption CM60 Series Service Manual Program Section The program radio F9 tab is enabled when there are keys checked for loading. If SRP is correctly set up, the lock icon will change from red to green when the KFD detects and programs the radio.
  • Page 49 Encryption CM60 Series Service Manual Figure 47 - Key Fill Device Encryption History Tab © 2018 Standard Communications Pty Ltd. All rights reserved. 07 March 2018 50078-2...
