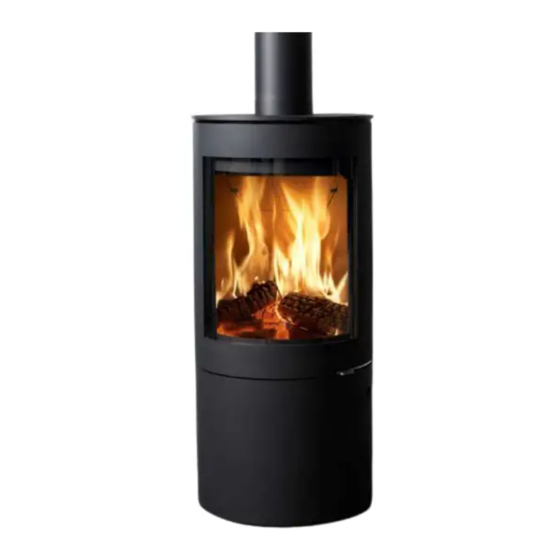

- Page 1 WESTFIRE · W F26 WF27 WF28 WESTFIRE · W F26 WF27 WF28 WF26 WF27 WF28 UK: INSTALLATION MANUAL AND OPERATING INSTRUCTIONS DANSK INGENIØRKUNST 1 of 16...
- Page 2 WESTFIRE · W F26 WF27 WF28 WF26 WF27 WF28 DATABLAD / PRODUCT SHEET / PRODUKTDATENBLATT / FICHE PRODUCT Datablad iht. Reglement (EU) 2015/1186 Energy Labelling Directive – ( EU ) 2015/1186 for Solid Fuel Boilers and Packages of Solid Fuel Boilers, Supplementary Heaters, Temperature Controls and Solar Devices Gemäss Verordnung (EU) 2015/1186...
- Page 3 WESTFIRE · W F26 WF27 WF28 WF26 WF27 WF28 UK: INSTALLATION MANUAL AND OPERATING INSTRUCTIONS 3 of 16...
-
Page 4: Health And Safety Precautions
This manual refers to the stove type listed above, which has been tested in accordance with EN 13240. Congratulations on your purchase of a new wood burning stove from Westfire ApS. Please read this manual care- fully in order to ensure that you get maximum enjoyment from your new stove and to prevent any problems. - Page 5 Older properties, especially, may have chimney faults or the cross section may be too large. Westfire Aps recommend the use of a solid fuel flue lining system for all installation into existing chimneys. All chimney systems must be used in accordance with Building Regulations Approved Document J.
- Page 6 The Westfire UNIQ26, 27, 28 wood stove has been tested and is suitable to be installed on a 12mm non combus- tible plate such as Westfire 12mm glass plates or 20mm slate plates. Installation of all hearths should comply in size and construction so that it is in accordance with the provisions of the current Building Regulations Approved Document J.
- Page 7 Westfire Insulated chambers The Westfire UNIQ26, 27, 28 wood burning stove is lined with heat deflection panels and baffles, these panels are designed to ensure the maximum efficiency and are an integral part of the clean burn process of the stove. These baffles should not be removed apart from for cleaning the stove.
- Page 8 At nominal heat output, expect to refuel your stove approximately once every 50 min. WF26, WF27 and WF28 are all equipped with a control valve for secondary air designed to ensure a plentiful supply of oxygen during firing. When lit, the stove will get very hot and due care must therefore be exercised.
- Page 9 CONTROLS on WESTFIRE UNIQ 26,27 & 28 Door operation When opening the door of your Westfire stove always wear the glove that is provided to protect your hand from possible heat. The handle pulls out right away from the fire. When shutting the door push the door closed and push the handle until the handle firmly closes.
- Page 10 Before refuelling, open air controls fully and slide. Unlatch door to equalise pressure with the room. Open door gently, add one piece of wood WESTFIRE UNIQ 26,27 & 28 and close the door. Once the flames from the logs are fully established move air control to nominal position. The stove is only suitable for intermittent use only: do not run overnight or for long periods unattended.
- Page 11 The paint/ lacquer can wear thin in exposed places due to overheating. This, and other lacquer damage, may be repaired using a Westfire Senotherm paint/lacquer spray available from your Westfire dealer. Ash must be stored in a non-combustible container and must not be mixed with other combustible waste.
-
Page 12: Warning Note
WESTFIRE · W F26 WF27 WF28 Chimney Fires If the chimney is thoroughly and regularly swept, chimney fires should not occur. However, if a chimney fire does occur turn the air control setting to the minimum, and tightly close the doors of the stove. This should cause the chimney fire to go out in which case the control should be kept at the minimum setting until the fire in the stove has gone out. - Page 13 The guarantee does not cover damage to replaceable parts, transport costs associated with repairs under warranty or the installation/dismantling of the stove in connection with repairs under warranty. Warning! Any unauthorised modification of the appliance is forbidden. Only replacement parts recommended by Westfire ApS should be used for repairs. 13 of 16...
- Page 14 WESTFIRE · W F26 WF27 WF28 VERMICULITE FIRE BRICK INSTALLATION SEQUENCE – WESTFIRE UNIQ 26, 27, 28 14 of 16...
- Page 15 WESTFIRE · W F26 WF27 WF28 15 of 16...
- Page 16 WESTFIRE · W F26 WF27 WF28 WESTFIRE2020 | WF26 WF27 WF28 16 of 16 TØMRERVEJ 3 | DK-6800 VARDE | TELEFON +45 7522 5352 | FAX +45 7522 1352 | WWW.WESTFIRE.DK | E-MAIL: INFO@WESTFIRE.DK...
