Westfire UNIQ 33 Quick Start Manual

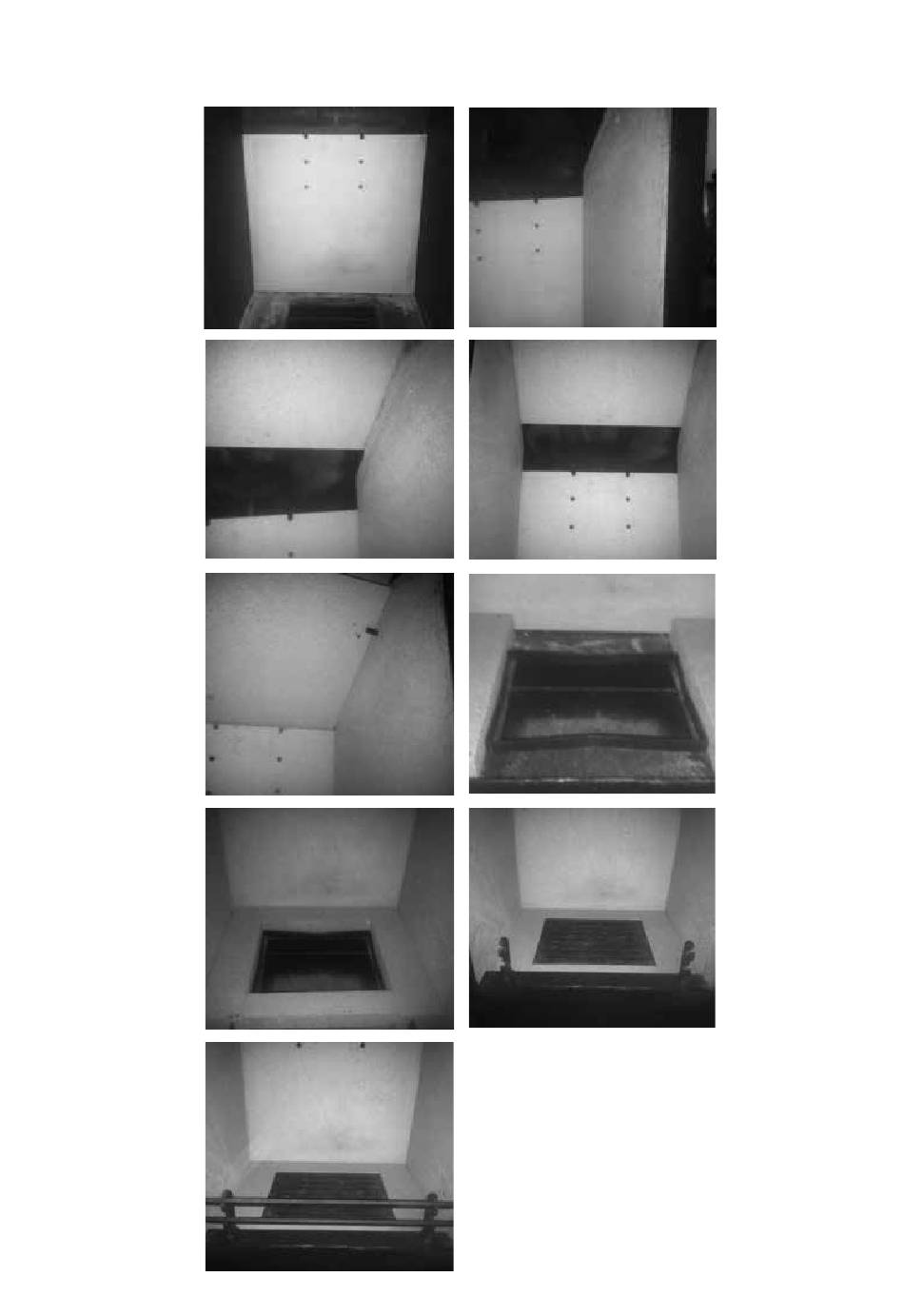

VERMICULITE FIRE BRICK INSTALLATION SEQUENCE – WESTFIRE UNIQ 33, 34
Place rear brick (03)
at back of chamber
with sloping edge
to the top. Sloping
face to rear of stove
Fit upper baffle (02)
on top of side brick.
Rest brick on metal
support
Place lower baffle
(02) above rear
brick, chamfered
edges to the rear of
stove. Hold baffle in
place and push in
two securing pins
into side bricks. Rest
baffle on pins.
Place front and rear
base bricks (05) in
place.
Fit log retaining
bars (12)
WESTFIRE · WF33 WF34
15
UK
Place one side
brick (04) in place.
Sloping section to
rear of stove.
While holding upper
baffle brick in place,
fit second side brick
(04) ensuring upper
baffle is securely in
place.
Place two base
bricks (07) and
grate support (10)
on base of stove
Place cast grate
(WFUN00PA01)
in place. Slide log
retainer (08) facing
to front of stove.
