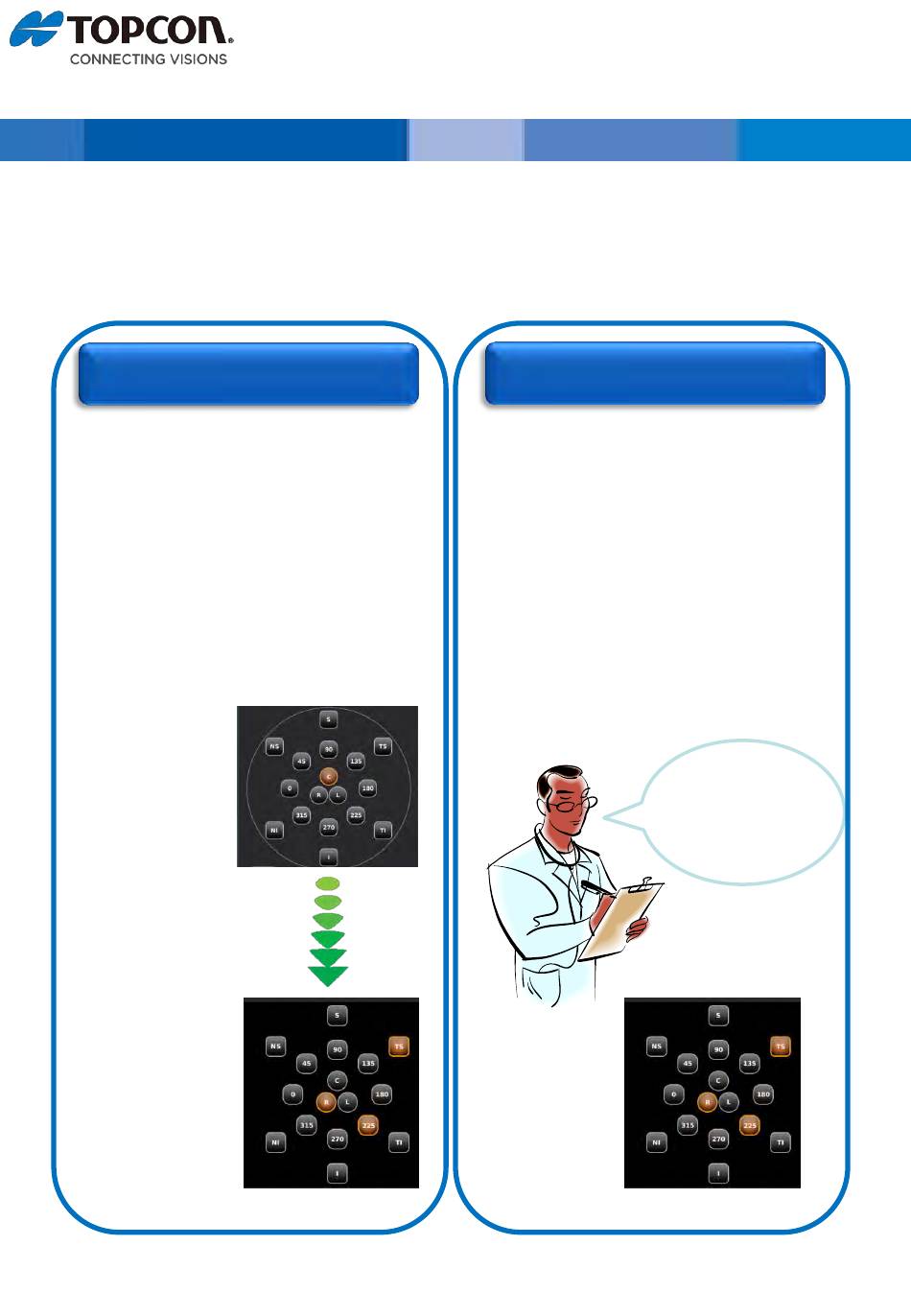

SP-1P Quick Reference Manual
According to each facility's needs, the examiner can select from
two courses: [Free Style Course] & [Sequence Course]
Free Style Course
Immediately after switching on
the device, the examiner can
start photography.
Suitable for a facility where mostly
photographs central cornea.
Peripheral area can be also selected.
If central part
is difficult to
photograph
↓
Go to
peripheral area
Sequence Course
Input patient ID, name, positions
to photograph, OD/OS.
Suitable for a facility where doctors
give orders for a position to
photograph.
Photograph
these positions
for this patient.
