SMS4500Pv2
Desktop Monitor Stands
Assembly and Set Up Instructions
Please follow all instructions carefully.

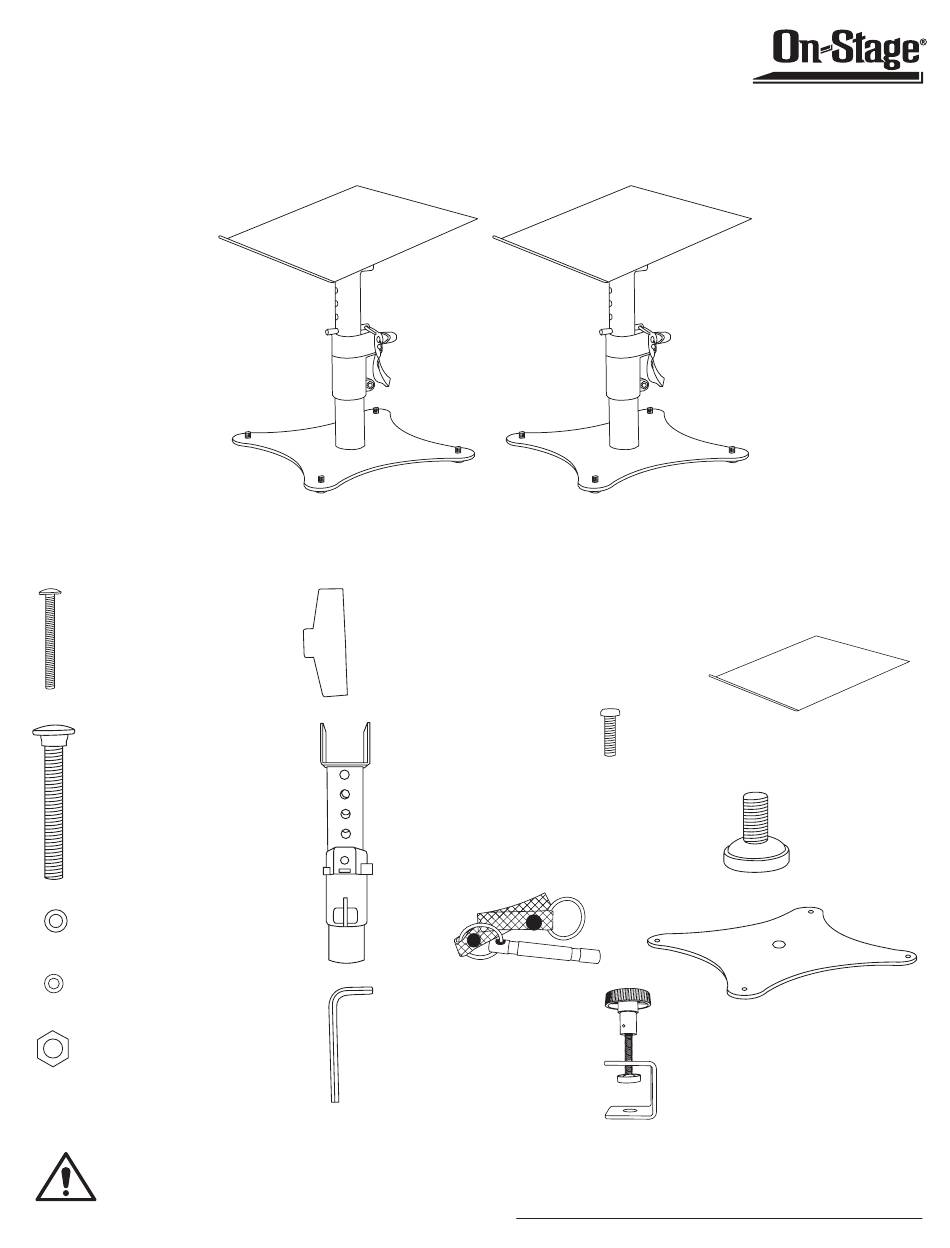

Components (drawings not to scale):
A
Medium Bolt (x2)
B
Large Bolt (x2)
C
Large Washer (x2)
D
Medium Washer (x2)
E
Nut (x2)
CAUTION
F
Angle-Adjustment
Knob (x2)
G
Shaft (x2)
I
Allen Key (x1)
EXCEEDING THE WEIGHT CAPACITY OR FAILURE TO OBSERVE PROPER ASSEMBLY INSTRUCTIONS AND
WARNINGS MAY CAUSE BODILY INJURY OR EQUIPMENT DAMAGE AND WILL VOID THE PRODUCT WARRANTY.
H
Platform with
Pad (x2)
K
Lower-Shaft Bolt (x2)
J
Height-Adjustment
Pin (x2)
© 2021 The Music People, a division of JAM Industries USA, LLC.
M
Rubber Feet (x8)
L
Base (x2)
N
Desktop Clamp (x2)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for on stage SMS4500Pv2
Summary of Contents for on stage SMS4500Pv2
- Page 1 SMS4500Pv2 Desktop Monitor Stands Assembly and Set Up Instructions Please follow all instructions carefully. Components (drawings not to scale): Platform with Angle-Adjustment Medium Bolt (x2) Pad (x2) Knob (x2) Lower-Shaft Bolt (x2) Shaft (x2) Large Bolt (x2) Height-Adjustment Pin (x2)
- Page 2 Instructions: 6. Remove the lower-shaft bolt (K) from the bottom of the shaft (G) using the allen key (I). BEFORE ASSEMBLY: Remove all contents from the box and identify the components using the diagrams. 1. Remove both bolts (A, B), both washers (C, D), the nut (E), and the angle-adjustment knob (F) from the bracket at the upper end of the shaft (G).
- Page 3 For use with the desktop clamp: 12. Place the desktop clamp (N) on the bottom of the shaft (G) with the clamp knob pointing away from the shaft. Align the center hole on top of the clamp with the hole on the bottom of the shaft. Insert the lower-shaft bolt (K) through the clamp and into the shaft.
