STANDS
REVIEW MATERIALS
Remove item from box. Compare the contents against the Parts List below. If any parts are missing, do not attempt to assemble this
stand. Instead, contact the Customer Service Department at cs@MusicPeopleInc.com or call us at (800) 289-8889.
A.
A.
Pedestal Base
B.
E.
Main Column
Pin & Height Adjustment Knob
C.
Platform Column
D.
Telescoping Platform
*Tools Needed.
13mm Hex Socket or 13mm Open-End Wrench
ASSEMBLE THE BASE AND MAIN COLUMN
1.
Place the pedestal base on level ground, rubber
feet facing downwards.
KS6150

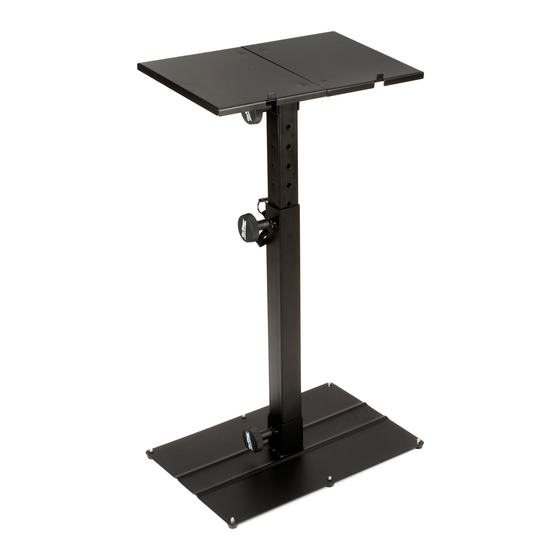

Midi synthesizer stand
Assembly Instructions
F.
Tilting Adjusment Knob
G.
2x long bolts & 1x Nut and Washer
B.
C.
2.
Loosen the large base knob enough to allow the main
column to nest inside. The bottom of the main column
has a hole that lines up with the large base knob.
Insert the main column into the base as shown and
tighten the knob until secure.
D.
G.
F.
E.
For more detailed instructions, visit: On-Stage.com
