SMS6600
STUDIO MONITOR STANDS

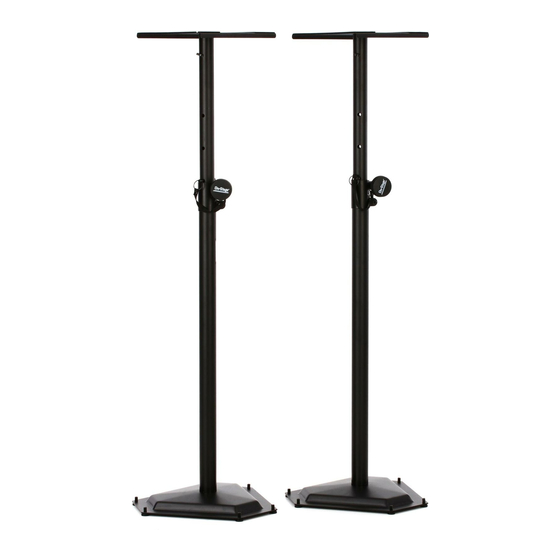

Congratulations on your purchase of the SMS6600 Studio Monitor Stands Pair!
Please read the following instructions carefully. We hope you enjoy your new purchase.
Visit On-Stage for the most recently-updated instructions.
Remove all contents from the box and identify the parts using these diagrams. *Parts not drawn to scale.

Components:

Square Monitor
Platforms (x2)
Adjustable Vertical
Shafts (x2)

Assembly Instructions:

1.
Thread the bottom of the adjustable vertical shaft into the base
until fully engaged.
2.
Thread the Socket Cap Screw with the Washer through the Square
Monitor Platform into the upper portion of the Adjustable Vertical
Shaft and tighten securely with provided Allen Wrench.
3.
Place in desired location and ensure that the platform is level,
adjusting the rubber feet as needed by turning them. When placing
on carpet, remove the rubber feet from the base and insert the
carpet spikes, ensuring the Square Monitor Platform is level.
4.
Adjust the monitor plate height by turning the knob on the shaft to
loosen it and move to desired height.
5.
Insert the safety pin all the way through the vertical shaft at the
lowest hole exposed.
6.
Repeat steps 1-5 for second stand.
FAILURE TO OBSERVE PROPER ASSEMBLY INSTRUCTIONS, EXCEEDING THE
CAUTION
WEIGHT CAPACITY OR FAILURE TO OBSERVE THE WARNINGS AS MENTIONED
IN THIS INSERT MAY CAUSE BODILY INJURY OR EQUIPMENT DAMAGE AND
WILL VOID THE PRODUCT WARRANTY.
Socket Cap Screws
Hex Bases (x2) with Washers (x2)
Leveling Carpet
Spikes (12)
Allen Wrench (1)
