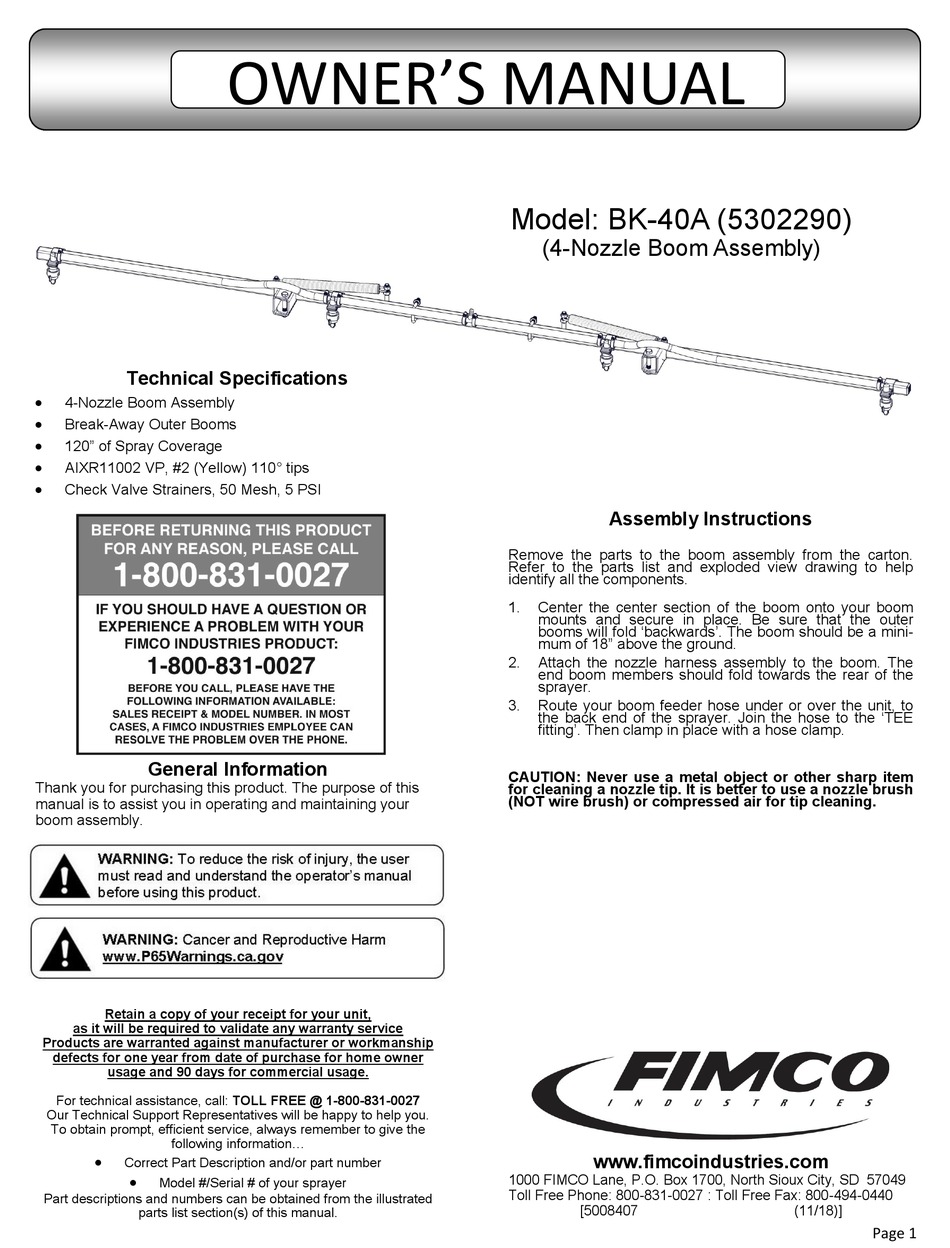

Fimco BK-40A Owner's Manual

Technical Specifications


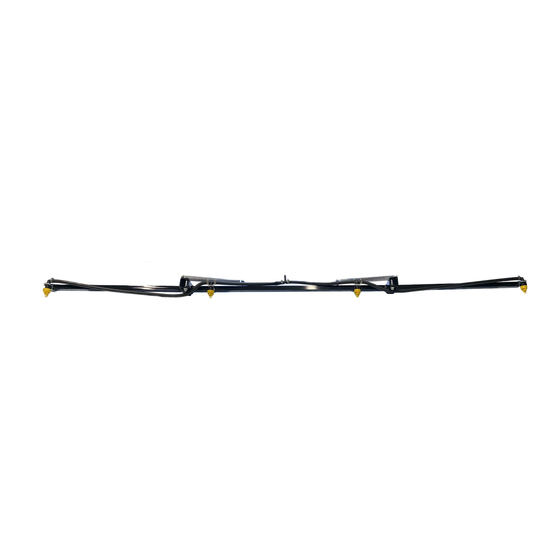

4-Nozzle Boom Assembly

Break-Away Outer Booms

120" of Spray Coverage

AIXR11002 VP, #2 (Yellow) 110° tips

Check Valve Strainers, 50 Mesh, 5 PSI
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your
boom assembly.
Retain a copy of your receipt for your unit,
as it will be required to validate any warranty service
Products are warranted against manufacturer or workmanship
defects for one year from date of purchase for home owner
usage and 90 days for commercial usage.
For technical assistance, call: TOLL FREE @ 1-800-831-0027
Our Technical Support Representatives will be happy to help you.
To obtain prompt, efficient service, always remember to give the
following information...

Correct Part Description and/or part number

Model #/Serial # of your sprayer
Part descriptions and numbers can be obtained from the illustrated
parts list section(s) of this manual.
OWNER'S MANUAL
Model: BK-40A (5302290)
(4-Nozzle Boom Assembly)
Assembly Instructions
Remove the parts to the boom assembly from the carton.
Refer to the parts list and exploded view drawing to help
identify all the components.
1. Center the center section of the boom onto your boom
mounts and secure in place. Be sure that the outer
booms will fold 'backwards'. The boom should be a mini-
mum of 18" above the ground.
2. Attach the nozzle harness assembly to the boom. The
end boom members should fold towards the rear of the
sprayer.
3. Route your boom feeder hose under or over the unit, to
the back end of the sprayer. Join the hose to the 'TEE
fitting'. Then clamp in place with a hose clamp.
CAUTION: Never use a metal object or other sharp item
for cleaning a nozzle tip. It is better to use a nozzle brush
(NOT wire brush) or compressed air for tip cleaning.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5008407 (11/18)]
Page 1
