Fimco BK-4-61 Owner's Manual

5-nozzle boom assembly for mounting to 60 gallon skid units

Advertisement

Quick Links

(5-Nozzle Boom Assembly for Mounting to 60 Gallon Skid Units
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your
boom kit assembly.
Retain a copy of your receipt for your unit,
as it will be required to validate any warranty service
Products are warranted against manufacturer or workmanship
defects for one year from date of purchase for home owner
usage and 90 days for commercial usage.
For technical assistance, call: TOLL FREE @ 1-800-831-0027
Our Technical Support Representatives will be happy to help you.
To obtain prompt, efficient service, always remember to give the
following information...
Correct Part Description and/or part number
Model #/Serial # of your sprayer
Part descriptions and numbers can be obtained from the illustrated
parts list section(s) of this manual.

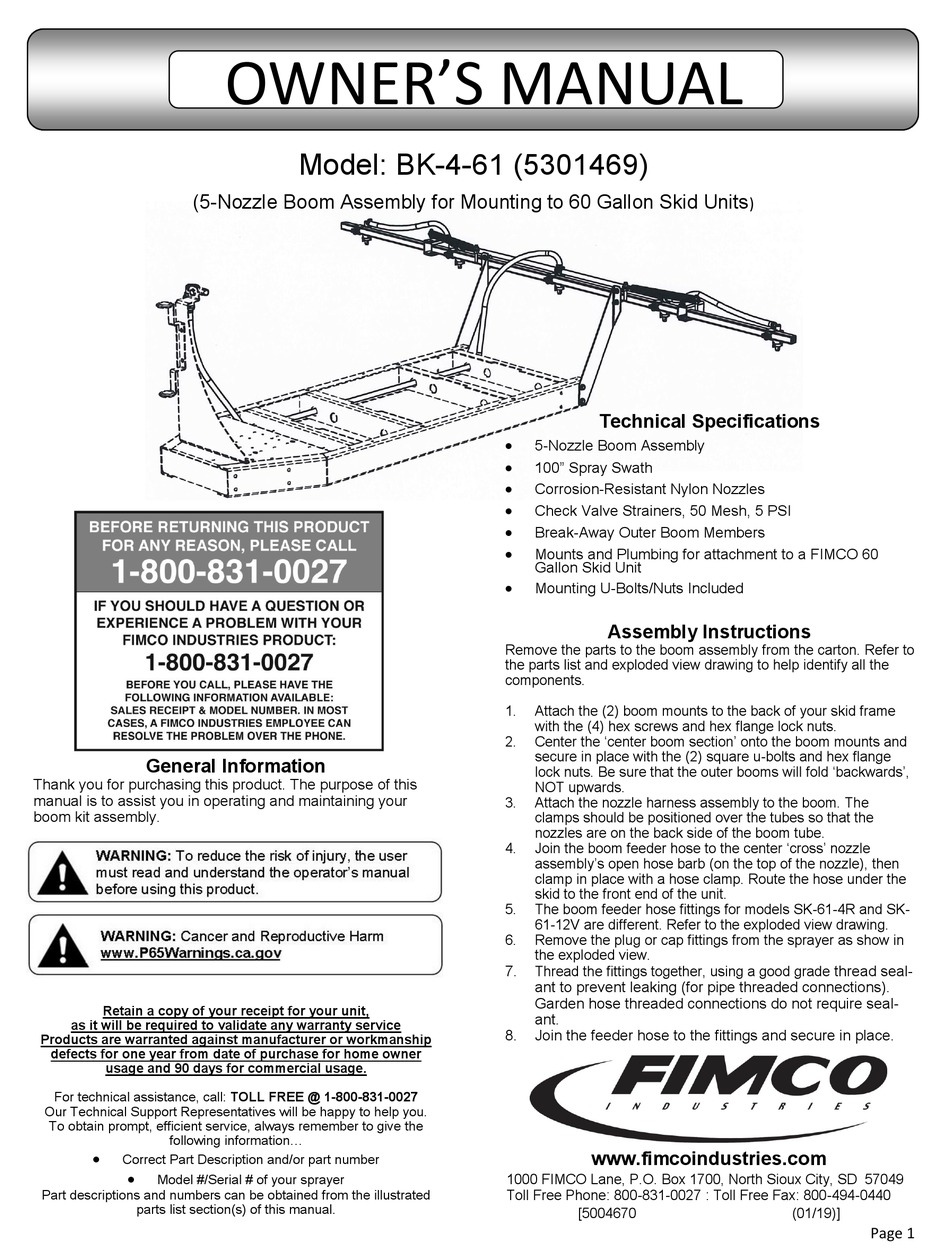

OWNER'S MANUAL
Model: BK-4-61 (5301469)
Technical Specifications
5-Nozzle Boom Assembly
100" Spray Swath
Corrosion-Resistant Nylon Nozzles
Check Valve Strainers, 50 Mesh, 5 PSI
Break-Away Outer Boom Members
Mounts and Plumbing for attachment to a FIMCO 60
Gallon Skid Unit
Mounting U-Bolts/Nuts Included
Assembly Instructions
Remove the parts to the boom assembly from the carton. Refer to
the parts list and exploded view drawing to help identify all the
components.
1.
Attach the (2) boom mounts to the back of your skid frame
with the (4) hex screws and hex flange lock nuts.
2.
Center the 'center boom section' onto the boom mounts and
secure in place with the (2) square u-bolts and hex flange
lock nuts. Be sure that the outer booms will fold 'backwards',
NOT upwards.
3.
Attach the nozzle harness assembly to the boom. The
clamps should be positioned over the tubes so that the
nozzles are on the back side of the boom tube.
4.
Join the boom feeder hose to the center 'cross' nozzle
assembly's open hose barb (on the top of the nozzle), then
clamp in place with a hose clamp. Route the hose under the
skid to the front end of the unit.
5.
The boom feeder hose fittings for models SK-61-4R and SK-
61-12V are different. Refer to the exploded view drawing.
6.
Remove the plug or cap fittings from the sprayer as show in
the exploded view.
7.
Thread the fittings together, using a good grade
ant to prevent leaking (for pipe threaded connections).
Garden hose threaded connections do not require seal-
ant.
8.
Join the feeder hose to the fittings and secure in place.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5004670
)
thread seal-
(01/19)]
Page 1
