Model: BB-308
(5300675)
Handgun Kit
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your
handgun kit.
Retain a copy of your receipt for your unit,
as it will be required to validate any warranty service
Products are warranted against manufacturer or workmanship
defects for one year from date of purchase for home owner
usage and 90 days for commercial usage.
For technical assistance, visit our website @
www.fimcoindustries.com or call: TOLL FREE @ 1-800-831-0027
Our Technical Support Representatives will be happy to help you.
To obtain prompt, efficient service, always remember to give the
following information...
Correct Part Description and/or part number
Part descriptions and numbers can be obtained from the illustrated
parts list section(s) of this manual.

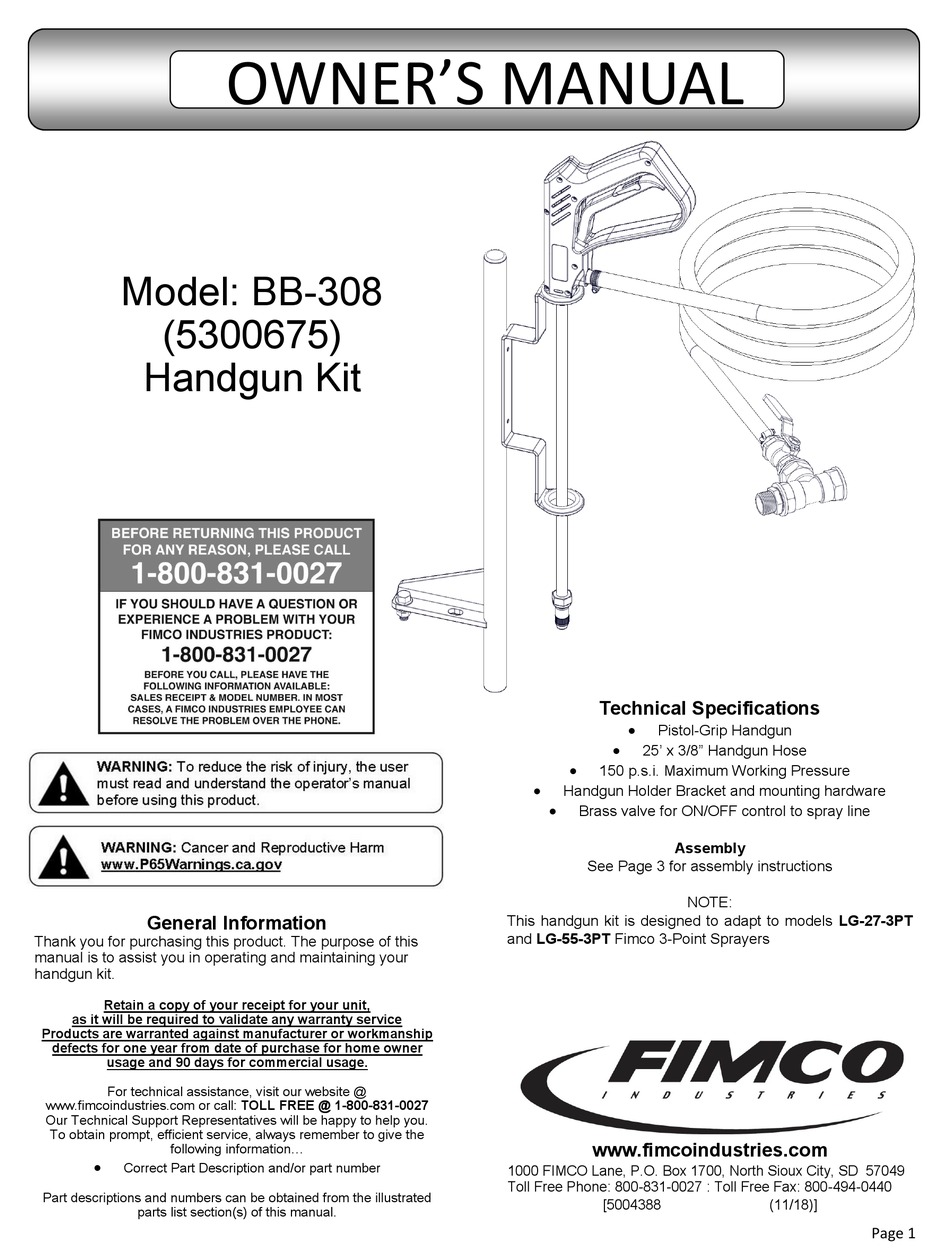

OWNER'S MANUAL
Technical Specifications
Pistol-Grip Handgun
25' x 3/8" Handgun Hose
150 p.s.i. Maximum Working Pressure
Handgun Holder Bracket and mounting hardware
Brass valve for ON/OFF control to spray line
Assembly
See Page 3 for assembly instructions
This handgun kit is designed to adapt to models LG-27-3PT
and LG-55-3PT Fimco 3-Point Sprayers
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5004388
NOTE:
(11/18)]
Page 1
Advertisement
Related Manuals for Fimco BB-308
Summary of Contents for Fimco BB-308
- Page 1 Correct Part Description and/or part number 1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049 Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440 Part descriptions and numbers can be obtained from the illustrated [5004388 (11/18)] parts list section(s) of this manual.
- Page 2 Exploded View/Parts List: BB-308 Handgun Kit 5300675 28” Page 2...
- Page 3 Assembly 1. This kit is to be installed between the directo -valve and the pressure relief valve 2. Loosen the hose clamp on the bypass hose near the pressure relief valve. Remove the hose from that fitting 3. Remove the pressure relief valve from the directo-valve 4.
- Page 4 WHAT REMEDIES ARE AVAILABLE UNDER THIS LIMITED WARRANTY. If the conditions set forth above are fulfilled and the Equipment or any part thereof is found to be defective, Fimco, Ind. shall, at its own cost, and at its option, either repair or replace the defective Equipment or part.
