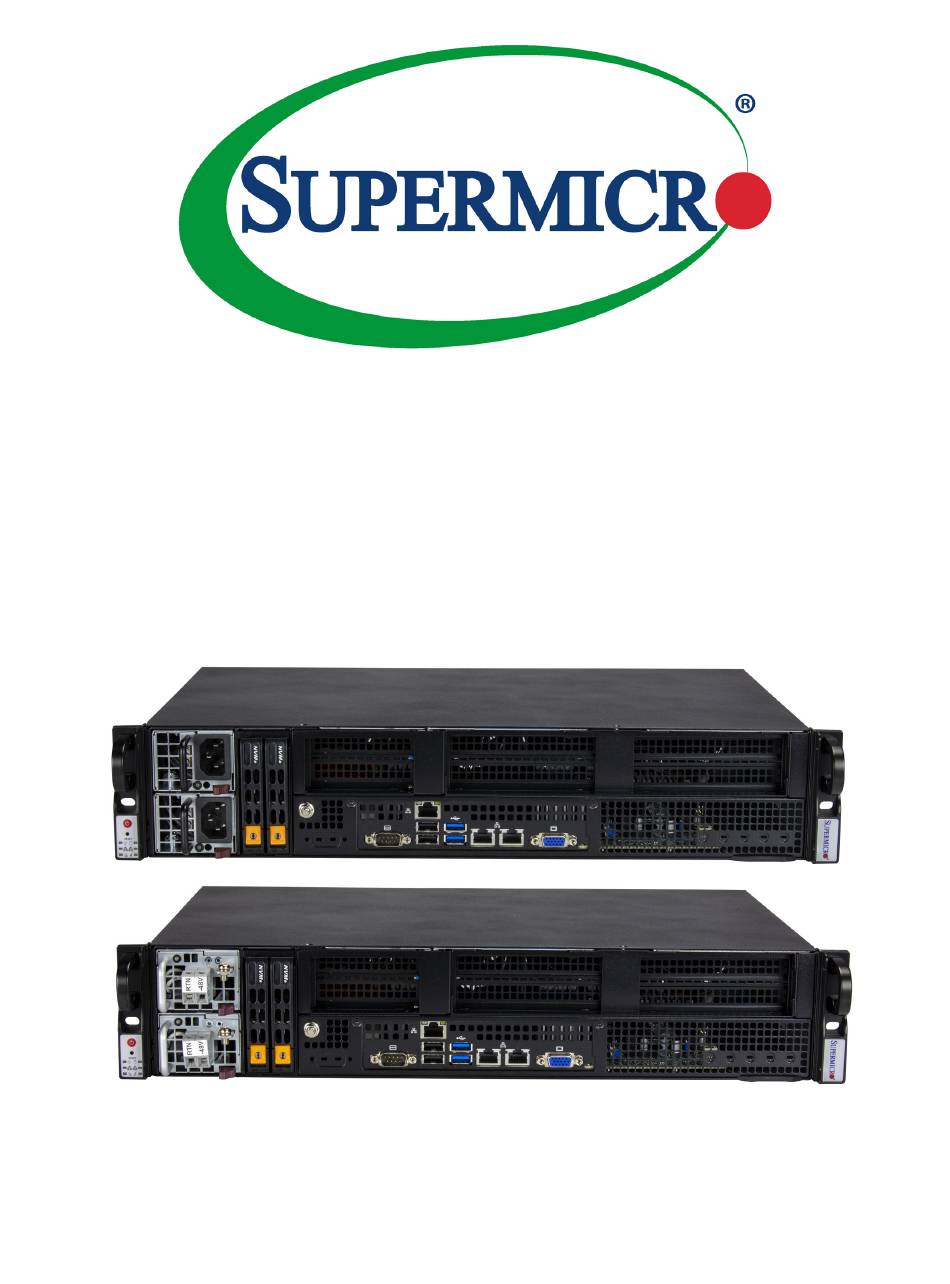

SuperServer
®
SYS-211E-FRN2T
SYS-211E-FRDN2T
USER'S MANUAL
Revision 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SuperServer SYS-211E-FRN2T and is the answer not in the manual?

Questions and answers

Related Manuals for Supermicro SuperServer SYS-211E-FRN2T

Summary of Contents for Supermicro SuperServer SYS-211E-FRN2T

  • Page 1 SuperServer ® SYS-211E-FRN2T SYS-211E-FRDN2T USER’S MANUAL Revision 1.0...
  • Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
  • Page 3 If you have any questions, please contact our support team at: support@supermicro.com This manual may be periodically updated without notice. Please check the Supermicro website for possible updates to the manual revision level. Secure Data Deletion A secure data deletion tool designed to fully erase all data from storage devices can be found on our website: https://www.supermicro.com/about/policies/disclaimer.cfm?url=/wdl/utility/...

  • Page 4: Table Of Contents

    Contents Contents Chapter 1 Introduction 1.1 Overview ..........................9 1.2 System Features ........................11 Front View .........................11 Control Panel .........................13 Rear View ..........................14 1.3 System Architecture ......................15 Main Components ......................15 1.4 Motherboard Layout ......................16 Quick Reference Table ......................17 Motherboard Block Diagram .....................19 Chapter 2 Server Installation 2.1 Overview ..........................20 2.2 Preparing for Setup ......................20...
  • Page 5 Contents Precautions ........................30 3.4 Processor and Heatsink Installation ...................31 The 4th Generation Intel Xeon Scalable Processor ............31 Overview of the Processor Carrier Assembly ..............32 Overview of the CPU Socket ....................32 Overview of the Processor Heatsink Module ..............33 Creating the Processor Carrier Assembly .................34 Assembling the Processor Heatsink Module ..............35 Preparing the CPU Socket for Installation ................36 Installing the Processor Heatsink Module .................37...
  • Page 6 Contents How Jumpers Work ......................67 4.5 LED Indicators ........................70 4.6 Front Control Panel ......................71 Chapter 5 Software 5.1 Microsoft Windows OS Installation ..................74 5.2 Driver Installation ........................76 5.3 SuperDoctor 5 ........................77 ® 5.4 BMC ............................78 BMC ADMIN User Password ....................78 Chapter 6 Optional Components 6.1 Optional Parts List .......................79 6.2 Intel Virtual RAID on CPU (VROC) ..................80...
  • Page 7 Contents 7.4 Crash Dump Using BMC ....................91 7.5 UEFI BIOS Recovery ......................92 Overview ...........................92 Recovering the UEFI BIOS Image ..................92 Recovering the Main BIOS Block with a USB Device ............92 7.6 CMOS Clear ........................97 7.7 Where to Get Replacement Components ................98 7.8 Reporting an Issue ......................98 Technical Support Procedures ..................98 Returning Merchandise for Service ...................98...
  • Page 8 San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) Sales-USA@supermicro.com (Sales Inquiries) Government_Sales-USA@supermicro.com (Gov. Sales Inquiries) support@supermicro.com (Technical Support) RMA@supermicro.com (RMA Support) Webmaster@supermicro.com (Webmaster) Website: www.supermicro.com Europe Address: Super Micro Computer B.V.

  • Page 9: Chapter 1 Introduction

    Chapter 1: Introduction Chapter 1 Introduction 1.1 Overview This chapter provides a brief outline of the functions and features of the SuperServer SYS-211E-FRN2T/211E-FRDN2T. This system is based on the X13SEM-TF motherboard and the CSE-211M-R000NDP chassis. The following provides an overview of the specifications and capabilities. System Overview Motherboard X13SEM-TF...
  • Page 10 Chapter 1: Introduction A Quick Reference Guide can be found on the product page of the Supermicro website. The following safety models associated with SYS-211E-FRN2T/211E-FRDN2T have been certified as compliant with UL or CSA: 211M-R8X13(AC), 211M-8(AC), 211M-R6DX12(DC), and 211M-6D(DC).

  • Page 11: System Features

    Chapter 1: Introduction 1.2 System Features The following views of the system display the main features. Refer to Appendix C for additional specifications. Front View Handle Handle Dedicated IPMI LAN Port 800W Redundant Power Supplies VGA Port RJ45 10GbE LAN Ports COM Port Control Panel Two USB 3.0 Ports...
  • Page 12 Chapter 1: Introduction System Features: Front Feature Description Server Handles Two handles supporting server removal Control Panel Front control panel with LEDs and buttons (see the following page) SYS-211E-FRN2T: 800W AC redundant power supplies Power Supplies SYS-211E-FRDN2T: 600W DC redundant power supplies COM Port One serial communication port LAN Ports...

  • Page 13: Control Panel

    Chapter 1: Introduction Control Panel Power BMC Reset Power LED NIC (LAN2) LED NIC (LAN1) LED Information LED Power Fail LED Figure 1-3. Control Panel Control Panel Features Feature Description The main power switch applies or removes primary power from the power supply to the server Power button but maintains standby power.

  • Page 14: Rear View

    Chapter 1: Introduction Rear View Fans Figure 1-4. Rear View System Features: Rear Feature Description Fans Four internal fans...

  • Page 15: System Architecture

    Chapter 1: Introduction 1.3 System Architecture This section shows the locations of the system's main components. Main Components Four System Fans Motherboard Eight DIMM Slots Processor Riser Card Riser Card Riser Card Figure 1-5. Main Component Locations...

  • Page 16: Motherboard Layout

    Chapter 1: Introduction 1.4 Motherboard Layout Below is a layout of the X13SEM-TF motherboard with the jumper, connector and LED locations shown. See the table on the following page for descriptions. For detailed descriptions, pinout information and jumper settings, refer to Chapter 4 or the Motherboard...

  • Page 17: Quick Reference Table

    Chapter 1: Introduction Quick Reference Table Jumper Description Default Setting JBT1 CMOS Clear Open (Normal) JCFG1, JCFG2 SATA/PCIe Flex I/O for CN1 Pins 1–2 (SATA) JPG1 VGA Enable/Disable Pins 1–2 (Enabled) LAN1 and LAN2 Enable/Disable (I350, JPL1 Pins 1–2 (Enabled) X13SEM-TF only) JPME1 ME Recovery Mode...
  • Page 18 Chapter 1: Introduction Connector Description JTPM1 Trusted Platform Module/Port 80 Connector JUIDB1 Unit Identifier Switch LAN1, LAN2 1GbE (X13SEM-TF) or 10GbE (X13SEM-TF) LAN Ports USB0/1 Back Panel USB 2.0 Ports USB2/3, USB4/5 Front Accessible USB 2.0 Headers USB6/7 Back Panel USB 3.2 Gen 1 Ports USB8 Front Accessible USB 3.2 Gen 1 Type-A Header USB9/10...

  • Page 19: Motherboard Block Diagram

    Chapter 1: Introduction Motherboard Block Diagram PCIe x16-Gen5 JPCIe4 PE1[0-15] REVERSAL Rear I/O Intel RJ45 PCIe x16-Gen5 PCIe x4-Gen3 JPCIe6 PE2[0-15] PE0[0-3] 10G*2 X550-AT2 PCIe x8 Gen5 JPCIe7 PE0[8-15] REVERSAL Rear I/O PCIe x16-Gen5 PE3[0-15] Intel RJ45 MCIO*4 1G*2 I350-AM2 PCIe x16-Gen5 PE4[0-15] NCSI...

  • Page 20: Chapter 2 Server Installation

    Chapter 2: Server Installation Chapter 2 Server Installation 2.1 Overview This chapter provides advice and instructions for mounting your system in a server rack. If your system is not already fully integrated with system memory etc., refer to Chapter 3 details on installing those specific components.

  • Page 21: Server Precautions

    Chapter 2: Server Installation • Always make sure the rack is stable before extending a server or other component from the rack. • You should extend only one server or component at a time - extending two or more simul- taneously may cause the rack to become unstable.

  • Page 22: Mechanical Loading

    Chapter 2: Server Installation Mechanical Loading Equipment should be mounted into a rack so that a hazardous condition does not arise due to uneven mechanical loading. Circuit Overloading Consideration should be given to the connection of the equipment to the power supply circuitry and the effect that any possible overloading of circuits might have on overcurrent protection and power supply wiring.

  • Page 23: Identifying The Rack Rails

    Chapter 2: Server Installation 2.3 Identifying the Rack Rails The chassis package includes outer and inner rack rail assemblies in the rack mounting kit. Left Right Secure to the Front of the Rack Secure to the Rear of the Rack Figure 2-1.

  • Page 24: Installing The Inner Rails

    Chapter 2: Server Installation 2.4 Installing the Inner Rails The inner rails can be installed onto the chassis without any tools. Figure 2-3. Installing the Inner Rails Installing the Inner Rails 1. Place the inner rail on the side of the chassis aligning the hooks of the chassis with the inner rail holes.

  • Page 25: Installing The Outer Rails To The Rack

    Chapter 2: Server Installation 2.5 Installing the Outer Rails to the Rack Outer rails attach to the rack and hold the server in place. The outer rails for the chassis extend between 18 inches and 24 inches. Installing the Outer Rails to the Rack 1.

  • Page 26: Installing The Server Into The Rack

    Chapter 2: Server Installation 2.6 Installing the Server into the Rack The server is secured to the rack with the locking tabs on the inner rails and two front screws. Installing the Server into the Rack 1. Confirm that the chassis includes the inner rails and rail extensions. Also, confirm that the outer rails are installed on the rack.

  • Page 27: Removing The System From The Rack

    Chapter 2: Server Installation Figure 2-6. Installing Front Screws onto the Rack Note: Figures are for illustrative purposes only. Always install servers to the bottom of a rack first. 2.7 Removing the System from the Rack To remove the system from the rack, perform the installation steps in reverse. Removing the System 1.

  • Page 28: Chapter 3 Maintenance And Component Installation

    Chapter 3: Maintenance and Component Installation Chapter 3 Maintenance and Component Installation This chapter provides instructions on installing and replacing main system components. To prevent compatibility issues, only use components that match the specifications and/or part numbers given. Installation or replacement of most components require that power first be removed from the system.

  • Page 29: Accessing The System

    Chapter 3: Maintenance and Component Installation 3.2 Accessing the System The top cover is removable to access the system components. Removing the Top Cover 1. Remove the two screws. 2. Slide the cover back and off. Caution: Except for short periods of time, do not operate the server without the cover in place. The chassis cover must be in place to allow for proper airflow and to prevent overheating.

  • Page 30: Static-Sensitive Devices

    Chapter 3: Maintenance and Component Installation 3.3 Static-Sensitive Devices Electrostatic Discharge (ESD) can damage electronic components. To avoid damaging your motherboard, it is important to handle it very carefully. The following measures are generally sufficient to protect the system PCBs from ESD. Precautions •...

  • Page 31: Processor And Heatsink Installation

    Thermal grease is pre-applied on a new heatsink. No additional thermal grease is needed. • Refer to the Supermicro website for updates on processor support. • All graphics in this manual are for illustration purposes only. Your components may look different.

  • Page 32: Overview Of The Processor Carrier Assembly

    Chapter 3: Maintenance and Component Installation Overview of the Processor Carrier Assembly The processor carrier assembly contains the Intel Xeon processor and a processor carrier. 1. Intel Xeon Processor 2. Processor Carrier Overview of the CPU Socket The CPU socket is protected by a plastic protective cover. 1.

  • Page 33: Overview Of The Processor Heatsink Module

    Chapter 3: Maintenance and Component Installation Overview of the Processor Heatsink Module The Processor Heatsink Module (PHM) contains a heatsink, a processor carrier, and the Intel Xeon processor. 1. Heatsink with Thermal Grease 2. Processor Carrier 3. Intel Xeon Processor Processor Heatsink Module (PHM) Bottom View...

  • Page 34: Creating The Processor Carrier Assembly

    Chapter 3: Maintenance and Component Installation Creating the Processor Carrier Assembly To install a processor into the processor carrier, follow the steps below: 1. Before installation, make sure the lever on the processor carrier is pressed down as shown below. 2.

  • Page 35: Assembling The Processor Heatsink Module

    Chapter 3: Maintenance and Component Installation Assembling the Processor Processor Carrier Assembly Heatsink Module (Upside Down) After creating the processor carrier Triangle on the CPU assembly for the processor, mount it onto the heatsink to create the processor heatsink module (PHM): 1.

  • Page 36: Preparing The Cpu Socket For Installation

    Chapter 3: Maintenance and Component Installation Preparing the CPU Socket for Installation This motherboard comes with a plastic protective cover installed on the CPU socket. Remove it from the socket to install the Processor Heatsink Module (PHM). Gently pull up one corner of the plastic protective cover to remove it.

  • Page 37: Installing The Processor Heatsink Module

    Chapter 3: Maintenance and Component Installation Installing the Processor Heatsink Module After assembling the Processor Heatsink Module (PHM), install it onto the CPU socket: 1. Align pin 1 of the PHM with the printed triangle on the CPU socket. See the left image below.

  • Page 38: Removing The Processor Heatsink Module

    Chapter 3: Maintenance and Component Installation Removing the Processor Heatsink Module Before removing the processor heatsink module (PHM) from the motherboard, shut down the system and then unplug the AC power cord from all power supplies. Then follow the steps below: 1.

  • Page 39: Memory Support And Installation

    Chapter 3: Maintenance and Component Installation 3.5 Memory Support and Installation The X13SEM-TF motherboard supports up to 2048GB of ECC RDIMM, RDIMM 3DS, and 9x4 RDIMM DDR5 memory with speeds of up to 4800MT/s. The motherboard also has eight channels and eight memory slots that each contain 64GB of memory. Refer to the table below for the recommended DIMM population order.

  • Page 40: General Guidelines For Optimizing Memory Performance

    Chapter 3: Maintenance and Component Installation General Guidelines for Optimizing Memory Performance • It is recommended to use DDR5 memory of the same type, size, and speed. • Mixed DIMM speeds can be installed. However, all DIMMs will run at the speed of the slowest DIMM.

  • Page 41: Dimm Installation

    Chapter 3: Maintenance and Component Installation DIMM Installation COM1 1. Insert the desired number of DIMMs into the J10G_PWR1 JPG1 USB6/7 (3.2 Gen 1) JPL1 AST 2600 LAN2 LAN1 IPMI_LAN memory slots based on the Recommended USB0/1 (2.0) JPTG1 JPCIe6 JNCSI1 JPCIe7 LED4...

  • Page 42: Motherboard Battery

    Chapter 3: Maintenance and Component Installation 3.6 Motherboard Battery The motherboard uses non-volatile memory to retain system information when system power is removed. This memory is powered by a lithium battery residing on the motherboard. Replacing the Battery Begin by removing the top cover from the system. 1.

  • Page 43: Storage Drives

    The CSE-211M chassis supports up to two 2.5" storage drives in drive carriers to simplify their removal from the chassis. These carriers also help promote proper airflow. Note: Enterprise level storage are recommended for use in Supermicro chassis and servers. For information on recommended storage, visit the Supermicro website at http://www.

  • Page 44: Installing Drives

    Chapter 3: Maintenance and Component Installation Installing Drives Removing Drive Carriers from the Chassis 1. Push the release button on the drive carrier. This releases and extends the drive carrier handle. 2. Swing the handle fully out. 3. Grasp the handle and use it to pull the drive carrier out of its bay. Caution: Except for short periods of time (swapping drives), do not operate the server with the drive carriers removed from the bays, regardless of how many drives are installed, for proper airflow.
  • Page 45 Chapter 3: Maintenance and Component Installation Installing a 2.5" Hard Drive 1. Place the hard drive carrier on a flat surface. 2. The physical size of the drive does not permit using the stubs to hold the right side of the drive.

  • Page 46: Installing M.2 Solid State Drives

    Chapter 3: Maintenance and Component Installation Installing M.2 Solid State Drives The X13SEM-TF supports PCIe 5.0 x2 NVMe/SATA M.2 SSDs. The M.2 slot supports the 2280 and 22110 form factors. Installing M.2 Drives 1. Remove power from the system and then remove the top cover as described in Sections 3.1 and 3.2.

  • Page 47: Expansion Cards

    Chapter 3: Maintenance and Component Installation 3.8 Expansion Cards The system supports three brackets to install expansion cards. Center Left Right Figure 3-6. Expansion Bracket Locations Brackets and Riser Card Part Number Bracket Riser Card Part Number Left RSC-S-68G5 Center RSC-S2R-68G5 (optional) Right CBL-PCBA-G5T16-0809...

  • Page 48: Installing Expansion Cards Into Left Bracket

    Chapter 3: Maintenance and Component Installation Installing Expansion Cards into Left Bracket The system includes slots for PCI expansion cards. Riser cards position the expansion cards at a 90 degree angle, allowing them to fit inside the 2U chassis. Note: Slot 3 is available only if a 2U heatsink is installed. Installing a PCI Expansion Card 1.
  • Page 49 Chapter 3: Maintenance and Component Installation UPERMICR Figure 3-8. Left bracket rear view (RSC-S-68G5) Figure 3-9. PCIe Slots and Cable Connectors Left Bracket Riser Cards, Slots, and Cable Connection UPERMICR Configurations Left Bracket Slot MB Connector MCIO Cable Riser Card Slot 1: PCIe 5.0 x16 CBL-MCIO-1218M5R JPCIE1A1...

  • Page 50: Installing Expansion Cards Into Center Bracket

    Chapter 3: Maintenance and Component Installation Installing Expansion Cards into Center Bracket The center bracket is optional and is connected to the motherboard Slot 7. Installing a PCI Expansion Card The riser cards have already been pre-installed into the motherboard. Perform the following steps to install an add-on card: 1.
  • Page 51 Chapter 3: Maintenance and Component Installation Figure 3-11. PCIe Slots and Cable Connectors Center Bracket and MB Slots UPERMICR Configurations Center Bracket Slot MB Slot & Connector MCIO Cable Riser Card Slot 3: N/A Configuration 1 Slot 4: N/A Slot 3: PCIe 5.0 x16 CN2, CN3 CBL-MCIO- JPCIE1B1,...

  • Page 52: Installing Expansion Cards Into Right Bracket

    Chapter 3: Maintenance and Component Installation Installing Expansion Cards into Right Bracket Both slots 4 and 6 can accommodate x16 FHHL cards. Installing PCI Expansion Cards 1. Remove the top cover. 2. Remove the card bracket from the chassis by unscrewing the screw holding the bracket indicated in the figure below.
  • Page 53 Chapter 3: Maintenance and Component Installation Figure 3-13. PCIe Slots Right Bracket and MB Slots Right Bracket Slot Motherboard Slot PCIe Slot 5: PCIe 5.0 x16 CPU Slot 6: PCIe 5.0 x16 PCIe Slot 6: PCIe 5.0 x16 CPU Slot 4: PCIe 5.0 x16...

  • Page 54: System Cooling

    Chapter 3: Maintenance and Component Installation 3.9 System Cooling Fans Four internal fans provide cooling to the system. Changing a System Fan 1. Determine which fan is failing. If possible, use BMC. If not, remove the chassis cover while the power is on, and examine the fans to determine which one has failed. 2.

  • Page 55: Air Shroud

    Chapter 3: Maintenance and Component Installation Air Shroud The system requires air shrouds for each node to maximize airflow efficiency. Installing the Air Shroud Before installing/removing the air shroud, please remove all riser card brackets first. Place the air shroud as shown below. Figure 3-15.

  • Page 56: Power Supply

    FRDN2T) hot-swappable redundant power supplies. The power supplies are auto-switching capable. If replacing a power supply, the system does not need to be powered down. New units can be ordered directly from Supermicro or authorized distributors. Replacing a Power Supply 1.
  • Page 57 Chapter 3: Maintenance and Component Installation Release Button Figure 3-17. Removing the Power Supply...

  • Page 58: Bmc Reset

    Chapter 3: Maintenance and Component Installation 3.11 BMC Reset The BMC can be reset using the button on the front control panel or on the chassis rear. • Reset – Press and hold the button. After six seconds, the LED blinks at 2Hz. The BMC resets and the reset duration is approximately 250 ms.

  • Page 59: Chapter 4 Motherboard Connections

    Chapter 4: Motherboard Connections Chapter 4 Motherboard Connections This section describes the connections on the motherboard and provides pinout definitions. Note that depending on how the system is configured, not all connections are required. The LEDs on the motherboard are also described here. A motherboard layout indicating component locations may be found in Chapter 1.

  • Page 60: Headers And Connectors

    Chapter 4: Motherboard Connections 4.2 Headers and Connectors Chassis Intrusion A Chassis Intrusion header is located at JL1 on the motherboard. Attach the appropriate cable from the chassis to inform you of a chassis intrusion when the chassis is opened. Refer to the table below for pin definitions.
  • Page 61 Chapter 4: Motherboard Connections Fan Headers There are five 4-pin fan headers (FAN1 FAN4, FANA) on the motherboard. All these 4-pin – fan headers are backwards compatible with the traditional 3-pin fans. However, fan speed control is available for 4-pin fans only by Thermal Management via the IPMI 2.0 interface. Refer to the table below for pin definitions.
  • Page 62 NIC add-on card that supports NC-SI and must use a special cable. Please purchase a cable for this header at supermicro.com. Refer to the table below for pin definitions. NC-SI...
  • Page 63 SATA 3.0 Ports This motherboard has two SATA 3.0 ports (I-SATA1, I-SATA2). I-SATA1 and I-SATA2 can be used with Supermicro's SuperDOM SATA DOM connectors with power pins built in, and do not require external power cables. Supermicro SuperDOMs are backward compatible with regular SATA HDDs or SATA DOMs that need external power cables.

  • Page 64: Input/Output Ports

    Chapter 4: Motherboard Connections 4.3 Input/Output Ports See the figure below for the locations and descriptions of the I/O ports on the rear of the motherboard. Figure 4-1. I/O Port Locations and Definitions Rear I/O Ports Description Description Description COM1 USB6 IPMI_LAN USB7...
  • Page 65 Chapter 4: Motherboard Connections Unit Identifier Switch (UID-SW): One button with two functions A Unit Identifier (UID) switch and two LED Indicators are located on the motherboard. The UID switch is located next to the VGA port on the back panel. Function User Input Behavior...
  • Page 66 Chapter 4: Motherboard Connections Universal Serial Bus (USB) Ports There are two USB 2.0 ports (USB0/1) on the I/O back panel and four USB 2.0 headers (USB2/3, USB4/5). The motherboard also has two USB 3.2 Gen 1 ports (USB6/7) on the I/O back panel, two USB 3.2 Gen 1 headers (USB9/10), and one USB 3.2 Gen 1 Type-A header (USB8).

  • Page 67: Jumpers

    Chapter 4: Motherboard Connections 4.4 Jumpers How Jumpers Work To modify the operation of the motherboard, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin 1 is identified with a square solder pad on the printed circuit board. Refer to the diagram below for an example of jumping pins 1 and 2.
  • Page 68 Chapter 4: Motherboard Connections 10GbE LAN Enable/Disable Use JPTG1 to enable or disable LAN1 and LAN2. The default setting is Enabled. 10Gb LAN Enable/Disable Jumper Settings Jumper Setting Definition Pins 1-2 Enabled Pins 2-3 Disabled Management Engine (ME) Recovery Use jumper JPME1 to select ME Firmware Recovery mode, which will limit resource allocation for essential system operation only in order to maintain normal power operation and management.
  • Page 69 Chapter 4: Motherboard Connections Watch Dog JWD1 controls the Watch Dog function. Watch Dog is a monitor that can reboot the system when a software application hangs. Jumping pins 1-2 will cause Watch Dog to reset the system if an application hangs. Jumping pins 2-3 will generate a non-maskable interrupt signal for the application that hangs.

  • Page 70: Led Indicators

    Chapter 4: Motherboard Connections 4.5 LED Indicators BMC Heartbeat LED LED1 is the BMC heartbeat LED. When the LED is blinking green, BMC is functioning normally. Refer to the table below for the LED status. BMC Heartbeat LED Indicator LED Color Definition Blinking Green BMC Normal...

  • Page 71: Front Control Panel

    JF1 contains header pins for various buttons and indicators that are normally located on a control panel at the front of the chassis. These connectors are designed specifically for use with a Supermicro chassis. See the figure below for the descriptions of the front control panel buttons and LED indicators.
  • Page 72 Chapter 4: Motherboard Connections Power Fail The Power Fail LED connection is located at pins 5 and 6. Refer to the table below for pin definitions. Power Fail LED Pin Definitions (JF1) Pin# Definition 3.3V Power Fail LED Overheat (OH)/Fan Fail Connect an LED cable to pins 7 and 8 of the Front Control Panel to use the Overheat/Fan Fail LED connections.
  • Page 73 Chapter 4: Motherboard Connections Power LED The Power LED connection is located on pins 15 and 16 of JF1. Refer to the table below for pin definitions. Power LED Pin Definitions (JF1) Pins Definition +3.3V Stby PWR LED NMI Button The non-maskable interrupt button header is located on pins 19 and 20 of JF1.

  • Page 74: Chapter 5 Software

    1. Create a method to access the Microsoft Windows installation ISO file. That can be a USB flash, media drive, or the BMC KVM console. 2. Retrieve the proper RST/RSTe driver. Go to the Supermicro web page for your motherboard and click on "Download the Latest Drivers and Utilities", select the proper driver, and copy it to a USB flash drive.
  • Page 75 Chapter 5: Software 4. During Windows Setup, continue to the dialog where you select the drives on which to install Windows. If the disk you want to use is not listed, click on “Load driver” link at the bottom left corner. Figure 5-2.

  • Page 76: Driver Installation

    The Supermicro website contains drivers and utilities for your system at https://www. supermicro.com/wdl/driver. Some of these must be installed, such as the chipset driver. After accessing the website, go into the CDR_Images (in the parent directory of the above link) and locate the ISO file for your motherboard. Download this file to a USB flash or media drive (you may also use a utility to extract the ISO file if preferred).

  • Page 77: Superdoctor ® 5

    5.3 SuperDoctor ® The Supermicro SuperDoctor 5 is a program that functions in a command-line or web-based interface for Windows and Linux operating systems. The program monitors such system health information as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

  • Page 78: Bmc

    There are several BIOS settings that are related to BMC. For general documentation and information on BMC, visit our website at: www.supermicro.com/en/solutions/management-software/bmc-resources BMC ADMIN User Password For security, each system is assigned a unique default BMC password for the ADMIN user.

  • Page 79: Chapter 6 Optional Components

    Chapter 6: Optional Components Chapter 6 Optional Components This chapter describes optional system components and installation procedures. 6.1 Optional Parts List Optional Parts List Description Part Number Passive CPU Heatsink SNK-P0087V System configuarion 2 and configuration 3 BPN cable CBL-MCIO-1210S5L PCIe Riser Card RSC-S2R-68G5 MCIO Cable x8 (STR to STR),18CM,85OHM,RoHS...

  • Page 80: Intel Virtual Raid On Cpu (Vroc)

    Chapter 6: Optional Components 6.2 Intel Virtual RAID on CPU (VROC) Intel Virtual RAID on CPU (Intel VROC) is an enterprise RAID solution for NVMe SSDs ® directly attached to Intel Xeon Scalable processors. Intel Volume Management Device (VMD) is an integrated controller inside the CPU PCIe root complex. •...

  • Page 81: Additional Information

    Chapter 6: Optional Components Additional Information Additional information is available on the product page for the Supermicro add-on card and the linked manuals. www.supermicro.com/products/accessories/addon/AOC-VROCxxxMOD.cfm Hardware Key The Intel VROC hardware key is a license key that detects the Intel VROC SKU and activates the function accordingly.

  • Page 82: Enabling Nvme Raid

    Chapter 6: Optional Components Enabling NVMe RAID RAID for NVMe SSDs must be enabled through the UEFI BIOS. 1. Install the patch as described in the Restrictions and Requirements section on a previous page. 2. Reboot the server. 3. Press [DEL] key to enter BIOS. 4.
  • Page 83 Chapter 6: Optional Components Figure 6-2. BIOS VMD Setting Examples...
  • Page 84 Chapter 6: Optional Components 13. Select Strip Size (Default 64KB). 14. Select Create Volume. 15. If another RAID is needed, start again at step 6. 16. Press [F4] to save and reboot. Figure 6-3. Created Volume without Figure 6-4. Created Volume with enabling RAID spanned over VMD enabling RAID spanned over VMD Controller...

  • Page 85: Status Indications

    Chapter 6: Optional Components Status Indications An LED indicator on the drive carrier shows the RAID status of the drive. Drive Carrier Status LED Indicator Status State (red) Normal function Locating 4 Hz blink Fault Solid on Rebuilding 1 Hz Blink IBPI SFF 8489 Defined Status LED States Hot Swap Drives Intel VMD enables hot-plug and hot-unplug for NVMe SSDs, whether from Intel or other...

  • Page 86: Chapter 7 Troubleshooting And Support

    Chapter 7 Troubleshooting and Support 7.1 Information Resources Website A great deal of information is available on the Supermicro website, supermicro.com. Figure 7-1. Supermicro Website • Specifications for servers and other hardware are available by clicking the Products option. •...

  • Page 87: Baseboard Management Controller (Bmc)

    Security Center for recent security notices Supermicro Phone and Addresses 7.2 Baseboard Management Controller (BMC) The system supports the Baseboard Management Controller (BMC). BMC is used to provide remote access, monitoring and management. There are several BIOS settings that are related to BMC.

  • Page 88: Troubleshooting Procedures

    Chapter 7: Troubleshooting and Support 7.3 Troubleshooting Procedures Use the following procedures to troubleshoot your system. If you have followed all of the procedures below and still need assistance, refer to the Technical Support Procedures Returning Merchandise for Service section(s) in this chapter. Power down the system before changing any non hot-swap hardware components.

  • Page 89: No Video

    • Memory: Make sure that the memory modules are supported. Refer to the product page on our website at www.supermicro.com. Test the modules using memtest86 or a similar utility. • Storage drives: Make sure that all drives work properly. Replace if necessary.
  • Page 90 Also check the Control panel Overheat LED. • Adequate power supply: Make sure that the power supply provides adequate power to the system. Make sure that all power connectors are connected. Refer to the Supermicro website for the minimum power requirements. •...

  • Page 91: Crash Dump Using Bmc

    In the event of a processor internal error (IERR) that crashes your system, you may want to provide information to support staff. You can download a crash dump of status information using BMC. The BMC manual is available at https://www.supermicro.com/en/solutions/ management-software/bmc-resources. Check BMC Error Log 1.

  • Page 92: Uefi Bios Recovery

    Warning: Do not upgrade the BIOS unless your system has a BIOS-related issue. Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update.
  • Page 93 USB flash or media drive.. Note 1: If you cannot locate the "Super.ROM" file in your drive disk, visit our website at www.supermicro.com to download the BIOS package. Extract the BIOS binary image into a USB flash device and rename it "Super.ROM" for the BIOS recovery use.
  • Page 94 Chapter 7: Troubleshooting and Support Note: At this point, you may decide if you want to start the BIOS recovery. If you decide to proceed with BIOS recovery, follow the procedures below. 4. When the screen as shown above displays, use the arrow keys to select the item "Proceed with flash update"...
  • Page 95 Chapter 7: Troubleshooting and Support 7. Press <Del> continuously during system boot to enter the BIOS Setup utility. From the top of the tool bar, select Boot to enter the submenu. From the submenu list, select Boot Option #1 as shown below. Then, set Boot Option #1 to [UEFI AP:UEFI: Built-in EFI Shell]. Press <F4>...
  • Page 96 Chapter 7: Troubleshooting and Support Note: Do not interrupt this process until the BIOS flashing is complete. 9. The screen above indicates that the BIOS update process is complete. When you see the screen above, unplug the AC power cable from the power supply, clear CMOS, and plug the AC power cable in the power supply again to power on the system.

  • Page 97: Cmos Clear

    Chapter 7: Troubleshooting and Support 7.6 CMOS Clear JBT1 is used to clear CMOS, which will also clear any passwords. Instead of pins, this jumper consists of contact pads to prevent accidentally clearing the contents of CMOS. To Clear CMOS 1.

  • Page 98: Where To Get Replacement Components

    7.7 Where to Get Replacement Components If you need replacement parts for your system, to ensure the highest level of professional service and technical support, purchase exclusively from our Supermicro Authorized Distributors/System Integrators/Resellers. A list can be found at: http://www.supermicro.com.

  • Page 99: Vendor Support Filing System

    For issues related to Red Hat Enterprise Linux, since it is a subscription based OS, contact your account representative. 7.9 Feedback Supermicro values your feedback as we strive to improve our customer experience in all facets of our business. Please email us at techwriterteam@supermicro.com to provide feedback on our manuals.

  • Page 100: Appendix A Standardized Warning Statements For Ac Systems

    Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components. Read this appendix in its entirety before installing or configuring components in the Supermicro chassis. These warnings may also be found on our website at http://www.supermicro.com/about/...
  • Page 101 Appendix A: Standardized Warning Statements Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden.
  • Page 102 SuperServer SYS-211E-FRN2T/211E-FRDN2T User's Manual . ٌ ‫ا ك ً ف حالة و ٌ يك أى تتسبب ف اصابة جسذ ة ٌ هذا الزهز ع ٌ خطز !تحذ ز‬ ‫قبل أى تعول عىل أي هعذات،يك عىل علن بالوخاطز ال ا ٌجوة عي الذوائز‬...
  • Page 103 Appendix A: Standardized Warning Statements Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación. Attention Avant de brancher le système sur la source d'alimentation, consulter les directives d'installation. .‫יש...
  • Page 104 SuperServer SYS-211E-FRN2T/211E-FRDN2T User's Manual Warnung Dieses Produkt ist darauf angewiesen, dass im Gebäude ein Kurzschluss- bzw. Überstromschutz installiert ist. Stellen Sie sicher, dass der Nennwert der Schutzvorrichtung nicht mehr als: 250 V, 20 A beträgt. ¡Advertencia! Este equipo utiliza el sistema de protección contra cortocircuitos (o sobrecorrientes) del edificio.
  • Page 105 Appendix A: Standardized Warning Statements Power Disconnection Warning Warning! The system must be disconnected from all sources of power and the power cord removed from the power supply module(s) before accessing the chassis interior to install or remove system components. 電源切断の警告...
  • Page 106 SuperServer SYS-211E-FRN2T/211E-FRDN2T User's Manual ‫يجب فصم اننظاو من جميع مصادر انطاقت وإ ز انت سهك انكهرباء من وحدة امداد‬ ‫انطاقت قبم‬ ‫انىصىل إىن امنناطق انداخهيت نههيكم نتثبيج أو إ ز انت مكىناث الجهاز‬ 경고! 시스템에 부품들을 장착하거나 제거하기 위해서는 섀시 내부에 접근하기 전에 반드시 전원...
  • Page 107 Appendix A: Standardized Warning Statements Attention Il est vivement recommandé de confier l'installation, le remplacement et la maintenance de ces équipements à des personnels qualifiés et expérimentés. !‫אזהרה‬ .‫צוות מוסמך בלבד רשאי להתקין, להחליף את הציוד או לתת שירות עבור הציוד‬ ‫واملدربيه...
  • Page 108 SuperServer SYS-211E-FRN2T/211E-FRDN2T User's Manual Warnung Diese Einheit ist zur Installation in Bereichen mit beschränktem Zutritt vorgesehen. Der Zutritt zu derartigen Bereichen ist nur mit einem Spezialwerkzeug, Schloss und Schlüssel oder einer sonstigen Sicherheitsvorkehrung möglich. ¡Advertencia! Esta unidad ha sido diseñada para instalación en áreas de acceso restringido. Sólo puede obtenerse acceso a una de estas áreas mediante la utilización de una herramienta especial,...
  • Page 109 Appendix A: Standardized Warning Statements Battery Handling Warning! There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions 電池の取り扱い...
  • Page 110 SuperServer SYS-211E-FRN2T/211E-FRDN2T User's Manual ‫هناك خطر من انفجار يف حالة اسحبذال البطارية بطريقة غري صحيحة فعليل‬ ‫اسحبذال البطارية‬ ‫فقط بنفس النىع أو ما يعادلها مام أوصث به الرشمة املصنعة‬ ‫جخلص من البطاريات املسحعملة وفقا لحعليامت الرشمة الصانعة‬ 경고! 배터리가 올바르게 교체되지 않으면 폭발의 위험이 있습니다. 기존 배터리와 동일하거나 제...
  • Page 111 Appendix A: Standardized Warning Statements ¡Advertencia! Puede que esta unidad tenga más de una conexión para fuentes de alimentación. Para cortar por completo el suministro de energía, deben desconectarse todas las conexiones. Attention Cette unité peut avoir plus d'une connexion d'alimentation. Pour supprimer toute tension et tout courant électrique de l'unité, toutes les connexions d'alimentation doivent être débranchées.
  • Page 112 SuperServer SYS-211E-FRN2T/211E-FRDN2T User's Manual Backplane Voltage Warning! Hazardous voltage or energy is present on the backplane when the system is operating. Use caution when servicing. バックプレーンの電圧 システムの稼働中は危険な電圧または電力が、 バックプレーン上にかかっています。 修理する際には注意く ださい。 警告 当系统正在进行时，背板上有很危险的电压或能量，进行维修时务必小心。 警告 當系統正在進行時，背板上有危險的電壓或能量，進行維修時務必小心。 Warnung Wenn das System in Betrieb ist, treten auf der Rückwandplatine gefährliche Spannungen oder Energien auf.
  • Page 113 Appendix A: Standardized Warning Statements ‫هناك خطز مه التيار الكهزبايئ أوالطاقة املىجىدة عىل اللىحة‬ ‫عندما يكىن النظام يعمل كه حذ ر ا عند خدمة هذا الجهاس‬ 경고! 시스템이 동작 중일 때 후면판 (Backplane)에는 위험한 전압이나 에너지가 발생 합니다. 서비스 작업 시 주의하십시오. Waarschuwing Een gevaarlijke spanning of energie is aanwezig op de backplane wanneer het systeem in gebruik is.
  • Page 114 SuperServer SYS-211E-FRN2T/211E-FRDN2T User's Manual ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ .‫התקנת הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫تركيب املعدات الكهربائية يجب أن ميتثل للقىاويه املحلية والىطىية املتعلقة‬ ‫بالكهرباء‬ 경고! 현 지역 및 국가의 전기 규정에 따라 장비를 설치해야 합니다.
  • Page 115 Appendix A: Standardized Warning Statements Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent. ‫סילוק המוצר‬ !‫אזהרה‬ .‫סילוק סופי של מוצר זה חייב להיות בהתאם להנחיות וחוקי המדינה‬ ‫التخلص...
  • Page 116 SuperServer SYS-211E-FRN2T/211E-FRDN2T User's Manual Warnung Gefährlich Bewegende Teile. Von den bewegenden Lüfterblätter fern halten. Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt.
  • Page 117 Verbindungskabeln, Stromkabeln und/oder Adapater, die Ihre örtlichen Sicherheitsstandards einhalten. Der Gebrauch von anderen Kabeln und Adapter können Fehlfunktionen oder Feuer verursachen. Die Richtlinien untersagen das Nutzen von UL oder CAS zertifizierten Kabeln (mit UL/CSA gekennzeichnet), an Geräten oder Produkten die nicht mit Supermicro gekennzeichnet sind.
  • Page 118 ‫.قيرح وأ لطع يف ببستي دق ىرخأ تالوحمو تالباك يأ مادختسا .ميلسلا سباقلاو لصوملا مجح‬ ‫ لبق نم ةدمتعملا تالباكلا مادختسا تادعملاو ةيئابرهكلا ةزهجألل ةمالسلا نوناق رظحي‬UL ‫ وأ‬CSA ‫( ةمالع لمحت يتلاو‬UL/CSA) ‫ لبق نم ةددحملاو ةينعملا تاجتنملا ريغ ىرخأ تادعم يأ عم‬Supermicro.
  • Page 119 사항을 준수하여 제공되거나 지정된 연결 혹은 구매 케이블, 전원 케이블 및 AC 어댑터를 사용하십시오. 다른 케이블이나 어댑터를 사용하면 오작동이나 화재가 발생할 수 있습니다. 전기 용품 안전법은 UL 또는 CSA 인증 케이블 (코드에 UL / CSA가 표시된 케이블)을 Supermicro 가 지정한 제품 이외의 전기 장치에 사용하는 것을 금지합니다. Stroomkabel en AC-Adapter...

  • Page 120: Appendix B Standardized Warning Statements For Dc Systems

    Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components. Read this appendix in its entirety before installing or configuring components in the Supermicro chassis. These warnings may also be found on our website at http://www.supermicro.com/about/...
  • Page 121 Appendix B: Standardized Warning Statements Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden.
  • Page 122 Appendix B: Standardized Warning Statements ‫תקנון הצהרות אזהרה‬ ‫הצהרות הבאות הן אזהרות על פי תקני התעשייה, על מנת להזהיר את המשתמש מפני חבלה‬ ‫פיזית אפשרית. במידה ויש שאלות או היתקלות בבעיה כלשהי, יש ליצור קשר עם מחלקת תמיכה‬ .‫טכנית של סופרמיקרו. טכנאים מוסמכים בלבד רשאים להתקין או להגדיר את הרכיבים‬ .‫יש...
  • Page 123 Appendix B: Standardized Warning Statements Installation Instructions Warning! Read the installation instructions before connecting the system to the power source. 設置手順書 システムを電源に接続する前に、 設置手順書をお読み下さい。 警告 将此系统连接电源前,请先阅读安装说明。 警告 將系統與電源連接前，請先閱讀安裝說明。 Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación.
  • Page 124 Appendix B: Standardized Warning Statements Circuit Breaker Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 60VDC, 20A. サーキッ ト ・ ブレーカー この製品は、 短絡 （過電流） 保護装置がある建物での設置を前提としています。 保護装置の定格が60VDC、 20Aを超えないこ とを確認下さい。 警告...
  • Page 125 Appendix B: Standardized Warning Statements ‫מוצר זה מסתמך על הגנה המותקנת במבנים למניעת קצר חשמלי. יש לוודא כי‬ 60VDC, 20A-‫המכשיר המגן מפני הקצר החשמלי הוא לא יותר מ‬ ‫هذا املنتج يعتمد عىل معداث الحاميت مه الدوائ ر القصرية التي تم تثبيتها يف‬ ‫املبنى‬...
  • Page 126 Appendix B: Standardized Warning Statements Power Disconnection Warning Warning! The system must be disconnected from all sources of power and the power cord removed from the power supply module(s) before accessing the chassis interior to install or remove system components. 電源切断の警告...
  • Page 127 Appendix B: Standardized Warning Statements Attention Le système doit être débranché de toutes les sources de puissance ainsi que de son cordon d'alimentation secteur avant d'accéder à l'intérieur du chassis pour installer ou enlever des composants de systéme. ‫אזהרה מפני ניתוק חשמלי‬ ‫!אזהרה‬...
  • Page 128 Appendix B: Standardized Warning Statements Equipment Installation Warning! Only trained and qualified personnel should be allowed to install, replace, or service this equipment. 機器の設置 トレーニングを受け認定された人だけがこの装置の設置、 交換、 またはサービスを許可されていま す。 警告 只有经过培训且具有资格的人员才能进行此设备的安装、更换和维修。 警告 只有經過受訓且具資格人員才可安裝、更換與維修此設備。 Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifiziertem Personal gestattet werden.
  • Page 129 Appendix B: Standardized Warning Statements Restricted Area Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security. (This warning does not apply to workstations). アクセス制限区域...
  • Page 130 Appendix B: Standardized Warning Statements ‫אזור עם גישה מוגבלת‬ !‫אזהרה‬ ‫יש להתקין את היחידה באזורים שיש בהם הגבלת גישה. הגישה ניתנת בעזרת‬ (.‫'כלי אבטחה בלבד (מפתח, מנעול וכד‬ . ‫تخصيص هذه انىحذة نترك ب ُ ها ف مناطق محظورة تم‬ ‫،...
  • Page 131 Appendix B: Standardized Warning Statements Battery Handling Warning! There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions 電池の取り扱い...
  • Page 132 Appendix B: Standardized Warning Statements ‫هناك خطر من انفجار يف حالة اسحبذال البطارية بطريقة غري صحيحة فعليل‬ ‫اسحبذال البطارية‬ ‫فقط بنفس النىع أو ما يعادلها مام أوصث به الرشمة املصنعة‬ ‫جخلص من البطاريات املسحعملة وفقا لحعليامت الرشمة الصانعة‬ 경고! 배터리가 올바르게 교체되지 않으면 폭발의 위험이 있습니다. 기존 배터리와 동일하거나 제 조사에서...
  • Page 133 Appendix B: Standardized Warning Statements Warnung Dieses Gerät kann mehr als eine Stromzufuhr haben. Um sicherzustellen, dass der Einheit kein trom zugeführt wird, müssen alle Verbindungen entfernt werden. ¡Advertencia! Puede que esta unidad tenga más de una conexión para fuentes de alimentación. Para cortar por completo el suministro de energía, deben desconectarse todas las conexiones.
  • Page 134 Appendix B: Standardized Warning Statements Backplane Voltage Warning! Hazardous voltage or energy is present on the backplane when the system is operating. Use caution when servicing. バックプレーンの電圧 システムの稼働中は危険な電圧または電力が、 バックプレーン上にかかっています。 修理する際には注意く ださい。 警告 当系统正在进行时，背板上有很危险的电压或能量，进行维修时务必小心。 警告 當系統正在進行時，背板上有危險的電壓或能量，進行維修時務必小心。 Warnung Wenn das System in Betrieb ist, treten auf der Rückwandplatine gefährliche Spannungen oder Energien auf.
  • Page 135 Appendix B: Standardized Warning Statements ‫هناك خطز مه التيار الكهزبايئ أوالطاقة املىجىدة عىل اللىحة‬ ‫عندما يكىن النظام يعمل كه حذ ر ا عند خدمة هذا الجهاس‬ 경고! 시스템이 동작 중일 때 후면판 (Backplane)에는 위험한 전압이나 에너지가 발생 합니다. 서비스 작업 시 주의하십시오. Waarschuwing Een gevaarlijke spanning of energie is aanwezig op de backplane wanneer het systeem in gebruik is.
  • Page 136 Appendix B: Standardized Warning Statements ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ .‫התקנת הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫تركيب املعدات الكهربائية يجب أن ميتثل للقىاويه املحلية والىطىية املتعلقة‬ ‫بالكهرباء‬ 경고! 현 지역 및 국가의 전기 규정에 따라 장비를 설치해야 합니다. Waarschuwing Bij installatie van de apparatuur moet worden voldaan aan de lokale en nationale elektriciteitsvoorschriften.
  • Page 137 Appendix B: Standardized Warning Statements Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent. ‫סילוק המוצר‬ !‫אזהרה‬ .‫סילוק סופי של מוצר זה חייב להיות בהתאם להנחיות וחוקי המדינה‬ ‫التخلص...
  • Page 138 Appendix B: Standardized Warning Statements Warnung Gefährlich Bewegende Teile. Von den bewegenden Lüfterblätter fern halten. Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt.
  • Page 139 Appendix B: Standardized Warning Statements DC Power Supply Warning! When stranded wiring is required, use approved wiring terminations, such as closedloop or spade-type with upturned lugs. These terminations should be the appropriate size for the wires and should clamp both the insulation and conductor. 警告...
  • Page 140 Appendix B: Standardized Warning Statements ‫وأ ةقلغم ةقلح لثم ،اهيلع ةقفاوملا ءاهنإ كالسألا مادختساو ،لبسلا مهب تعطقت نيذلا كالسألا ابولطم نوكي امدنع‬ ‫بجيو كالسألل بسانملا مجحلا نوكي تاءاهنإلا هذهل يغبنيو .ةبولقم تاورعلا عم عونلا ةيقيقحلا اهئامسأب ءايشألا‬ ‫.لصومو لزعلا نم لك حبك‬ 주의! 꼬인...
  • Page 141 Appendix B: Standardized Warning Statements 警告 進行以下任一操作程序前，請確保直流電路已斷電。 警告 请在进行以下任一操作程序前，确保直流电路的电源已经断开。 Warnung Vor Ausführung der folgenden Vorgänge ist sicherzustellen, daß die Gleichstromschaltung keinen Strom erhält. ¡Advertencia! Antes de proceder con los siguientes pasos, comprobar que la alimentación del circuito de corriente continua (CC) esté cortada (OFF). Attention Avant de pratiquer l'une quelconque des procédures ci-dessous, vérifier que le circuit en courant continu n'est plus sous tension.
  • Page 142 Appendix B: Standardized Warning Statements Hazardous Voltage or Energy Present on DC Power Terminals Warning! Hazardous voltage or energy may be present on DC power terminals. Always replace cover when terminals are not in service. Be sure uninsulated conductors are not accessible when cover is in place.
  • Page 143 Appendix B: Standardized Warning Statements ‫امدنع امئاد ءاطغ لادبتسا .ةمصاعلا ةقاطلا تاطحم ىلع ةدوجوم نوكت ةقاطلا وأ ةرطخلا دهجلا دق‬ ‫ءاطغلا امدنع اهيلإ لوصولا نكمي ال لوزعم ريغ تالصوملا هيف كش ال امم .ةمدخلا يف تسيل تاطحملا‬ ‫.هناكم يف‬ 주의! DC전원...

  • Page 144: Appendix C System Specifications

    Appendix C: System Specifications Appendix C System Specifications Processors Single 4th Gen Intel® Xeon® Scalable processor (Socket E (LGA4677)) up to 270W TDP Chipset Intel® C741 BIOS 256 Mb AMI BIOS® SPI Flash BIOS Memory Eight DIMM slots (1DCP), up to 2TB DDR5 4800MT/s ECC RDIMM/RDIMM-3DS Storage Drives Two 2.5"...
  • Page 145 Appendix C: System Specifications Power Supply SYS-211E-FRN2T; Model: PWS-804S-1R, 800 W redundant module DC Input Voltages: 100-240 VAC SYS-211E-FRDN2T; Model: PWS-601S-1R, 600 W redundant module Total Output Power: 600W: (-44) - (-65) Vdc Standby +12V: Max: 3A / Min: 0A Operating Environment Operating Temperature: 10º...
