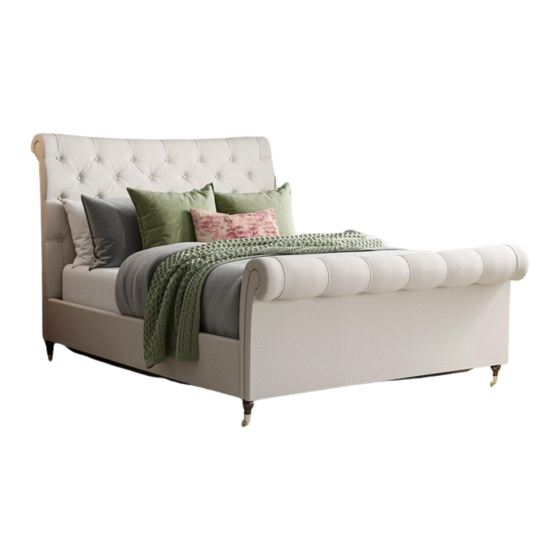

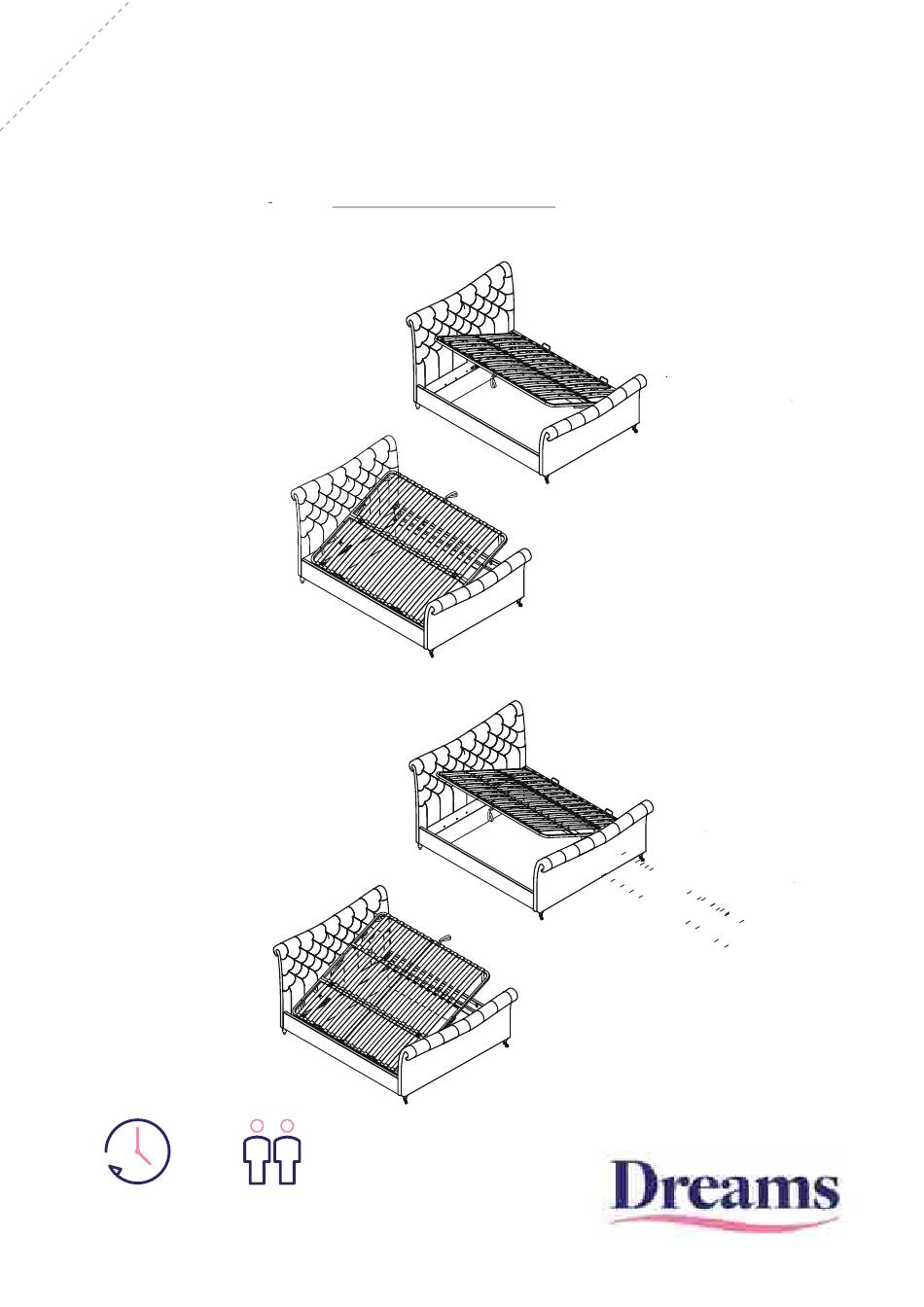

- Page 1 Alana Ottoman Bed Frame OTTOMAN STORAGE BED DOUBLE & KING SIZE SUPER KING SIZE 1.5 hour approx Two person assembly time assembly MK1 221112...
-
Page 2: Assembly Tips
Thank You Dear Customer, Thank you for choosing to purchase your bed from Dreams - we hope it brings you your best ever night’s sleep. Before you begin building your bed, please take a moment to read through the instructions and make sure that you've got all the relevant parts listed on the following pages. - Page 3 Before removing the mattress secure the frame to ensure it does not open unexpectedly. • Do not attempt to lie on the mattress when the ottoman is in the raised position. Alana Ottoman Storage Bed - Assembly guide ‘A’ - Page 3...
-
Page 4: Parts List
Mattress Stoppers Castor legs for footboard Fabric Hand Strap Locking washers Only for Super King size Floor protector cups Triple metal slat frame Cushion Blocks Cross bar 0 10 1 Alana Ottoman Storage Bed - Assembly guide ‘A’ - Page 4... -
Page 5: Tools Required
Flanged lock-nuts (M8) Metal connection plates for gas-lift pistons Spanner for M8 nuts for slat frame Tools required Please check you have these tools below Tape measure Alana Ottoman Storage Bed - Assembly guide ‘A’ - Page 5... - Page 6 Please note: For extra support, please fit these four cushion blocks (M) in the positions shown on sketch. e x2 f x2 g x2 c x2 l x2 i x2 Alana Ottoman Storage Bed - Assembly guide ‘A’ - Page 6...
- Page 7 & footboard. Bolt into the holes marked (R) with blue labels. The mechanisms are labeled p(a) & p(b). Please carefully follow the diagram below. p(b) Bolts should be in centre p(a) of long holes Align with Blue labels Alana Ottoman Storage Bed - Assembly guide ‘A’ - Page 7...
- Page 8 Bolt into the holes marked (L) with red labels. The mechanisms are labeled p(a) & p(b) please carefully follow the diagram below. p(a) Bolts should be in centre of long holes Align with Red labels p(b) Alana Ottoman Storage Bed - Assembly guide ‘A’ - Page 8...
- Page 9 Make certain the bed is squared up as shown in the diagram then tighten all bed assembly bolts 100%. Fit the fabric base cover evenly around the inside of the bed Alana Ottoman Storage Bed - Assembly guide ‘A’ - Page 9...
- Page 10 (s) and the cross bar (T) to the frame with bolt sets (m, b & c). Use Allen key (d) to tighten all six bolts 100%. Super King Size Alana Ottoman Storage Bed - Assembly guide ‘A’ - Page 10...
- Page 11 8mm, as in the sketch. Hold frame firmly then tighten all six bolt sets 100% using spanner (r) & Allen key (d). Alana Ottoman Storage Bed - Assembly guide ‘A’ - Page 11...
- Page 12 If required, put the floor Maximum storage height is protector cups (G) 295mm. under the castors G x2 Alana Ottoman Storage Bed - Assembly guide ‘A’ - Page 12...
- Page 13 2050 x 1530 Super King: 2050 x 1830 Distance between slats (mm) Double: King & Super King: 87 Floor to top of slat Top of slat to top of side rail Alana Ottoman Storage Bed - Assembly guide - Page 13...
