JDS Uniphase FFL-050 User Manual

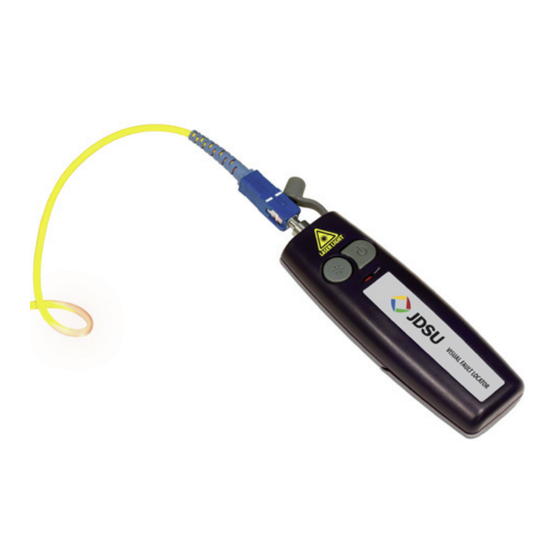

Visual Fault locator (Pocket-sized)

FFL-050 SPECIFICATIONS

Dimensions 11.4cm x 3.5cm x 2.0cm
Weight
46g with 2 AAA batteries
Fiber Compatibility
Single-mode, Multimode
Wavelength
650nm (visible)
Laser Safety Rating
Class II
Output Power
1.0mW max
Output Modes Continuous and flashing
Range > 7km single-mode
ƒ
> 5km multimode
ƒ
Connector Interface
ƒ Universal 2.5mm (fixed)
ƒ Universal 1.25mm
adapter (sold separately)
Controls ƒ ON/OFF
ƒ Continuous/Flashing
Battery Type 2 x AAA
Battery Life 30+ hours on Continuous
Carrying Case Soft-sided w/ belt loop
Safety 1992, EN 61010-2, CE
Warranty 1 year
FFL-050
All statements, technical information and recommendations related to the products
herein are based upon information believed to be reliable or accurate. However, the ac-
curacy or completeness thereof is not guaranteed, and no responsibility is assumed for
any inaccuracies. The user assumes all risks and liability whatsoever in connection with
the use of a product or its applications. JDSU reserves the right to change at any time
without notice the design, specifications, function, fit or form of its products described
herein, including withdrawal at any time of a product offered for sale herein. JDSU
makes no representations that the products herein are free from any intellectual property
claims of others. Please contact JDSU for more information. JDSU and the JDSU logo are
trademarks of JDS Uniphase Corporation. Other trademarks are the property of their
respective holders. © 2008 JDS Uniphase Corporation. All rights reserved.
Test and Measurement
Regional Sales
ZP-PKG-0477
reV 2
VisuaL FauLt Locator
NORTH AMERICA
TEL: 1 866 228 3762
FAX: 1 301 353 9216
LATIN AMERICA
TEL: +55 11 5503 3800
FAX: +55 11 5505 1598
ASIA PACIFIC
TEL: +852 2892 0990
FAX: +852 2892 0770
EMEA
TEL: +49 7121 86 2222
FAX: +49 7181 86 1222
Pocket-sized tool for fiber troubleshooting &
verification
user ManuaL
