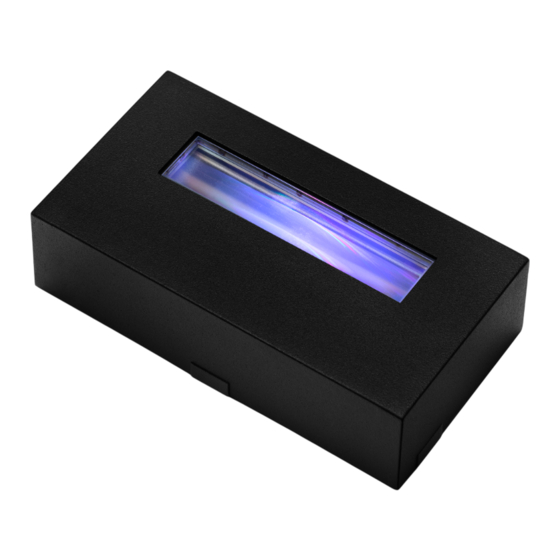

Griven Eklipse AL4373 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Eklipse
AL4373
Weight / Peso
Housing / Corpo proiettore
IK rating / classe IK
IP rating / grado IP
Ambient temp./ Temperatura ambientale
Power supply / Alimentazione
Power / Potenza massima
Thermal protection / Protezione termica
Electrical class / Classe elettrica
Cable / Cavo
Control / Sistema di controllo
Channels / Canali
Color range / Colori
Optics/ Ottiche
Size
Griven S.r.l. - Via Bulgaria, 16
46042 Castel Goffredo
Mantova - Italy
User Manual
Rev. 1.00
Date: 11/10/2018
4 High output LEDS additive syntesis: RGBW-millions of colours, DW- from 2700°K to 6500°K
171
6 3/4"
Tel. +39.0376.779483
© Copyright Griven 2018 - Griven reserves the right to make
changes to this product and related instructions at any time
Fax +39.0376.779682
without prior notice and such changes shall be effective
E-mail: sales@griven.com
immediatly
Web: www.griven.com
AL4373
1 Kg ( 2.2 Lbs)
Alluminum, scratch resistant paint
IK07
IP66
-40°C to 50°C ( -40°F to122°F)
48VDC
10W
Electronic
1,5 m DMX+Power IN, 1,5 m DMX+Power OUT
USITT DMX-512
4-5-6 (RGBW), 2-3 (DW), 1 (Monochromatic)
Elliptical
.
551042
III
page 1 of 12

Advertisement

loading

Related Manuals for Griven Eklipse AL4373

Summary of Contents for Griven Eklipse AL4373

  • Page 1 6 3/4" page 1 of 12 Griven S.r.l. - Via Bulgaria, 16 Tel. +39.0376.779483 © Copyright Griven 2018 - Griven reserves the right to make changes to this product and related instructions at any time 46042 Castel Goffredo Fax +39.0376.779682...
  • Page 2 Important notices / Avvertimenti importanti - This product must be installed in accordance with applicable national and local electrical and construction codes by a person familiar withthe construction and operation of the product and the hazards involved. Failure to comply with the following installation instructions may result in death or serious injury.
  • Page 3 Fixing -The unit can be fixed on the base of frames and windows. Use the holes Ø 5.5 mm in the body of the fixture. -Utilizzare le asole Ø 5,5 mm sul corpo dell’apparecchio. INDOOR 1/4" 6 1/8" OUTDOOR page 3 of 12 AL4373 Eklipse- Rev.
  • Page 4 -Regulate the position of the unit and the light beam direction using 2 screws of the fixture. -Regolare l’inclinazione dell’apparecchio agendo sulle apposite viti. MAX 3° page 4 of 12 AL4373 Eklipse- Rev. 1.00 551042...
  • Page 5 CAUTION: The luminaire should be positioned so that prolonged staring into the luminaire is not expected. Connection to the main power / Collegamento e alimentazione del proiettore Eklipse RGBW BLUE BLUE BROWN BROWN +48V +48V BLACK BLACK DATA- DATA- DATA & POWER DATA &...
  • Page 6 Cable Length: 1,5 m. DATA & POWER DATA & POWER Corugated Pipe Minimum Ø20 mm EKLIPSE EKLIPSE PREVIOUS POWER+DMX IN POWER+DMX OUT FIXTURE NEXT FIXTURE page 6 of 12 AL4373 Eklipse- Rev. 1.00 551042...
  • Page 7 DATA & POWER DATA & POWER Cable Length Cable Length 1,5 m. 1,5 m. page 7 of 12 AL4373 Eklipse- Rev. 1.00 551042...

  • Page 8: Dmx Mode

    Use of the unit - Utilizzo del proiettore DMX address setting with the accessory Weezerd 1 - Impostazione dell’indirizzo DMX con l’accessorio Weezerd 1 The DMX address can be set only by using the accessory AL2660 Weezerd 1. Refer to the manual of the accessory. - Per impo- stare l’indirizzo DMX utilizzando l’...

  • Page 9: Channels Setting

    DMX Sellf-addressing function mode- Funzionamente nella modalità autoindirizzante The unit works with the selected Dmx table (4,5,6 channels) and is provided of a self-addressing system. By this system, connecting the Eklipse units in series, each unit automatically sets its own initial DMX address, starting from the channel following the one of the previous unit.
  • Page 10 · On/Off identification: questo comando è usato per rintracciare l’unità sulla quale si vuole operare ( il proiettore si metterà in evidenza accendendo tutti i LED a massima intensità). · Manufacturer: viene mostrato in nome del produttore ( Griven ). · Model description: viene mostrato il modello del proiettore.
  • Page 11 Configuration Scheme - Schema di configurazione page 11 of 12 AL4373 Eklipse- Rev. 1.00 551042...
  • Page 12 page 12 of 12 AL4373 Eklipse- Rev. 1.00 551042...
