Gea B
Code / Codice
Power consumption
Consumo di energia
Nominal current
Corrente nominale
Power supply
Alimentazione elettrica
Inrush current / Corrente di spunto
Power factor / Fattore di potenza
Electrical class / Classe elettrica
Weight / Peso
Operating temperature
Temperatura di funzionamento
IP rating / Grado IP
IK rating / Grado IK
Dimensions / Dimensioni
A
B
C
Griven S.r.l. - Via Bulgaria, 16
46042 Castel Goffredo
Mantova - Italy
User Manual
551236 Rev. 2.0
Date: 05/02/2025

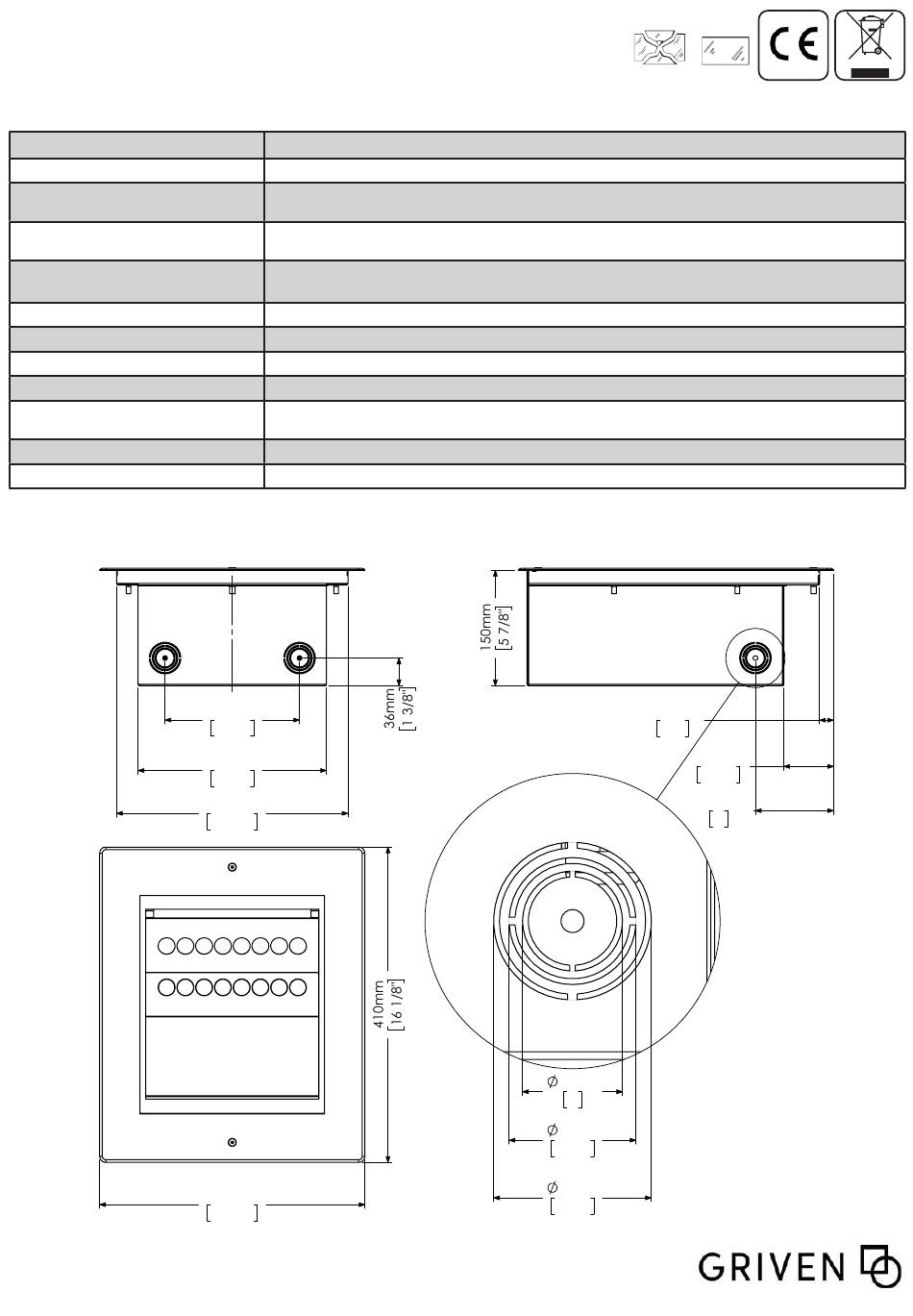

175mm
6 7/8"
245mm
9 5/8"
301mm
11 7/8"
345mm
13 5/8"
Tel. +39.0376.779483
E-mail: sales@griven.com
Web: www.griven.com
57 W Max
0,25 A Max
220-240VAC 50-60Hz
100- 277VAC 50-60Hz
From/Da 0,9 to/a 27.5 A@240VAC, cold start
cos.φ ≥0.95
11 Kg ( 24,2 Lb )
-40°C to +50°C ( -40°F to 122°F )
1 1/4"
1 5/8"
© Copyright Griven 2020 - GRIVEN S.r.l. is continuously
developing and improving all its products.
We reserve the right to change specifications without
prior notification
GEA B
AL8517
I or II
IP67
IK10
18,2mm
3/4"
64,7mm
2 1/2"
101,7mm
4"
26mm
1"
33mm
41mm
page 1 of 8
Advertisement
Related Manuals for Griven Gea B
Summary of Contents for Griven Gea B
- Page 1 1 1/4" 41mm 345mm 1 5/8" page 1 of 8 13 5/8" © Copyright Griven 2020 - GRIVEN S.r.l. is continuously Griven S.r.l. - Via Bulgaria, 16 Tel. +39.0376.779483 developing and improving all its products. E-mail: sales@griven.com 46042 Castel Goffredo We reserve the right to change specifications without...
- Page 2 Replaceable (LED only) light source by a professional professionista This product contains a light source of energy efficiency Questo prodotto contiene una sorgente luminosa di classe class: di efficienza energetica: 2200K 2700K 3000K 4000K page 2 of 8 GEA B...
- Page 3 Durante l’istallazione, assicurarsi che il fondo d’appoggio sia abbastanza solido da evitare sprofondamenti. >0 mm Never install the formwork below ground level ! Non installare la cassaforma al di sotto del livello del suolo ! page 3 of 8 GEA B...
-
Page 4: Installation - Installazione
Seguire le istruzioni fornite insieme al kit di connessione. EN: The connections of the cables type “S” and “M” must be made using the connection kit to be ordered separately. Follow the instructions provided with the connection kit. page 4 of 8 GEA B... - Page 5 BLU= N (Neutro) BLU= N (Neutro) BLUE= N (Neutral) BLUE= N (Neutral) GIALLO/VERDE=Terra GIALLO/VERDE=Terra YELLOW/GREEN=GND YELLOW/GREEN=GND MARRONE=L (Fase) MARRONE=L (Fase) BROWN=L (Live) BROWN=L (Live) BLU= N (Neutro) BLUE= N (Neutral) GIALLO/VERDE=Terra YELLOW/GREEN=GND MARRONE=L (Fase) BROWN=L (Live) page 5 of 8 GEA B...
- Page 6 Cavo tipo “P” ( Power In ) BLU= N (Neutro) BLU= N (Neutro) BLUE= N (Neutral) BLUE= N (Neutral) MARRONE=L (Fase) MARRONE=L (Fase) BROWN=L (Live) BROWN=L (Live) BLU= N (Neutro) BLUE= N (Neutral) MARRONE=L (Fase) BROWN=L (Live) page 6 of 8 GEA B...
- Page 7 Massimo 10A per linea piedi) utilizzando conduttori in rame di sezione 1,5mm2. Addresses and loads Dali / Indirizzi e carichi Dali Product type / Prodotti tipo Ottica Dali Carico/Load Monochromatic / Monocromatico Monochromatic / Monocromatico page 7 of 8 GEA B...
- Page 8 Nota: Accensione dell’apparecchio ammessa soltanto tra gli orari di tramonto e alba Note: Allowed operation only between sunset and sunrise page 8 of 8 GEA B...
