Sathurno
AL4320
Weight / Peso
Housing / Corpo proiettore
IK rating / classe IK
IP rating / grado IP
Ambient temp./ Temperatura ambientale
Power supply / Alimentazione
Inrush current / Corrente di spunto
Power / Potenza massima
Nominal current / Corrente nominale
Thermal protection / Protezione termica
Electrical class / Classe elettrica
Cable / Cavo
Control / Sistema di controllo
Channels / Canali
Color range / Colori
Optics/ Ottiche
Size AL4320
Griven S.r.l. - Via Bulgaria, 16
46042 Castel Goffredo
Mantova - Italy
Die Cast Alluminum, scratch resistant paint
-40°C to 50°C ( -40°F to122°F)
24VDC from external driver ( AL4322 )
USITT DMX-512-RDM
4-5-6 (RGBW), 2-3 (DW), 1 (Monochromatic)
12 High output LEDS additive syntesis: RGBW-millions of
colours, DW- from 2700°K to 6500°K
9 5/8"
244mm
Tel. +39.0376.779483
© Copyright Griven 2018 - Griven reserves the right to make
changes to this product and related instructions at any time
Fax +39.0376.779682
without prior notice and such changes shall be effective
E-mail: sales@griven.com
immediatly
Web: www.griven.com
User Manual
Rev. 1.00
Date: 25/10/2018
AL4320
1,2 Kg (2.64 Lbs)
IK07
IP67
-
21 W
-
III
10 m.
narrow, medium, wide
.
551038
AL4322 (electronic driver )
Die Cast Alluminum, scratch resistant paint
IP67
-40°C to 50°C ( -40°F to 122°F)
100-277 VAC 50/60Hz
cold start - 60A @230VAC
118W
0,63A@230VAC
Electronic
7/8"
22mm
/
I
-
-
-
-
-
page 1 of 8
Advertisement
Related Manuals for Griven Sathurno
Summary of Contents for Griven Sathurno

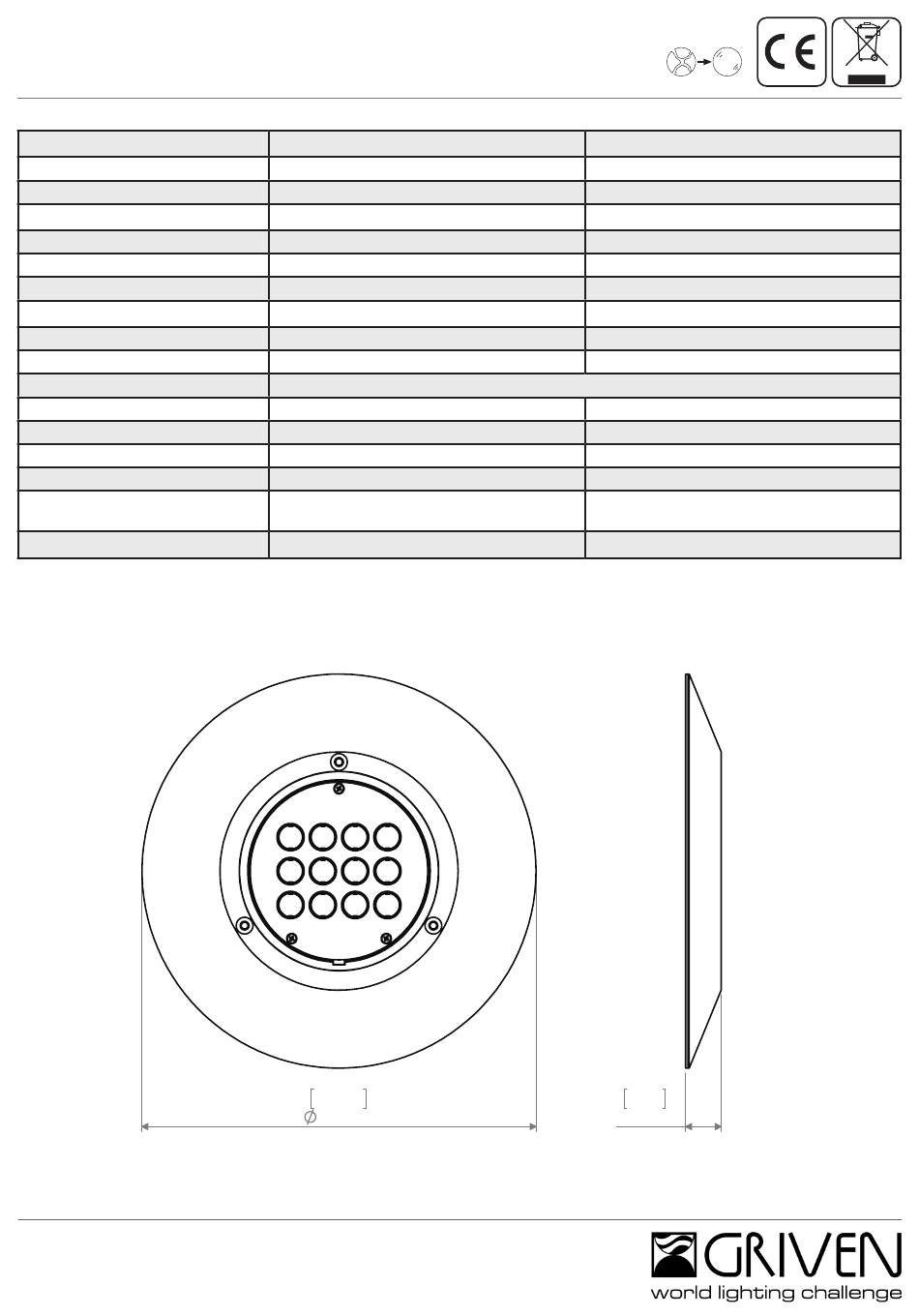

- Page 1 22mm page 1 of 8 Griven S.r.l. - Via Bulgaria, 16 Tel. +39.0376.779483 © Copyright Griven 2018 - Griven reserves the right to make changes to this product and related instructions at any time 46042 Castel Goffredo Fax +39.0376.779682 without prior notice and such changes shall be effective Mantova - Italy E-mail: sales@griven.com...
- Page 2 Size AL4322 9,1in 230mm 11,6in 293,80mm 9,8in 8,5in 8,5in 250mm 215mm 215mm 8,2in 8,2in 9,6in 209mm 209mm 244mm page 2 of 8 AL4320 Sathurno - Rev. 1.00 551038...
- Page 3 - Fix the projector by using screws, hooks or other adequate supports that can bear its weight. Fissare il proiettore con viti, ganci o altri supporti in grado di sostenerne il peso. page 3 of 8 AL4320 Sathurno - Rev. 1.00 551038...
- Page 4 Rimuovere utilizzando una pinza la parte incisa sul corpo in 9 5/8" alluminio per permettere il passaggio del cavo. 244mm CAUTION: prolonged staring at the LED source should be avoided by placing the fixture in a proper position. page 4 of 8 AL4320 Sathurno - Rev. 1.00 551038...
- Page 5 • Wiring and connection actions are to be performed by a qualified staff. • Prima di collegare l’apparecchio assicuratevi che la fornitura elettrica corrisponda a quelle ammesse. • Le operazioni di cablaggio e collegamento devono essere eseguite da personale qualificato. page 5 of 8 AL4320 Sathurno - Rev. 1.00 551038...
- Page 6 Fixing AL4326 Ø 5,5 0,2 “ 9” Fix the transformer box using n.4 holes Ø.5.5 mm Fissare la scatola dell’ alimentazione usando i n.4 fori diametro 5.5 mm. page 6 of 8 AL4320 Sathurno - Rev. 1.00 551038...
- Page 7 Nell’ultima apparecchiatura della linea DMX inserite una resistenza da 120 Ω collegata ai pin Data- e Data+. *DMX cable type: 2x0.34 mmq impedance 110Ω, capacity 43pF/m, resistance 50Ω/Km. Projector 1 Projector 2 Projector 3 Dimensioni cavo ø4 MIN ø8 MAX page 7 of 8 AL4320 Sathurno - Rev. 1.00 551038...
- Page 8 AL4320 + optics LED type option OPTICS LED TYPE OPTION Narrow RGBW Polar edition Medium Dynamic White Wide Warm White Extra Wide Cold White Elliptical Elliptical Wide WW Wall Wash page 8 of 8 AL4320 Sathurno - Rev. 1.00 551038...
