Ingersoll-Rand IR106B Operation And Maintenance Manual

OPERATION AND MAINTENANCE MANUAL

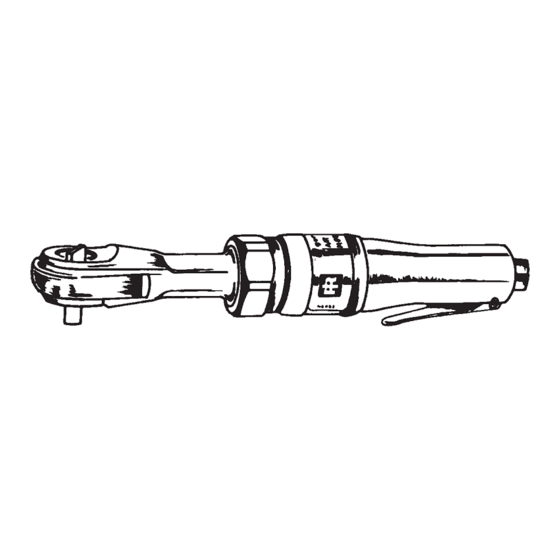

106 MODEL B SUPER DUTY RATCHET WRENCH
IMPORTANT SAFETY INFORMATION ENCLOSED.
READ THIS MANUAL BEFORE OPERATING TOOL.
FAILURE TO OBSERVE THE FOLLOWING WARNINGS COULD RESULT IN INJURY.
Always operate, inspect and maintain this tool in
accordance with American National Standards
Institute Safety Code for Portable Air Tools
(ANSI B186.1).
For safety, top performance and maximum dura-
bility of parts, operate this tool at 90 psig
(6.2 bar/620 kPa) maximum air pressure at the
inlet with 3/8" (10 mm) inside diameter air supply
hose.
Air powered tools can vibrate in use. Vibration,
repetitive motions or uncomfortable positions may
be harmful to your hands and arms. Stop using
any tool if discomfort, tingling feeling or pain oc-
curs. Seek medical advice before resuming use.
Always turn off the air supply and disconnect the
air supply hose before installing, removing or
The use of other than genuine Ingersoll–Rand replacement parts may result in safety hazards, decreased tool perfor-
mance and increased maintenance, and may invalidate all warranties.
Ingersoll–Rand is not responsible for customer modification of tools for applications on which Ingersoll–Rand was not
consulted.
Repairs should be made only by authorized trained personnel. Consult your nearest Ingersoll–Rand Authorized Servi-
center.
It is the responsibility of the employer to place the information in this manual into the hands of the operator.
Refer All Communications to the Nearest
Ingersoll–Rand Office or Distributor.
E Ingersoll–Rand Company 1994
Printed in U.S.A.
for
TPB1714
adjusting any accessory on this tool, or before per-
forming any maintenance on this tool.
Keep hands, loose clothing and long hair away
from rotating end of tool.
Anticipate and be alert for sudden changes in mo-
tion during start up and operation of any power
tool.
Tool accessory may continue to rotate briefly after
throttle is released.
Do not lubricate tools with flammable or volatile
liquids such as kerosene, diesel or jet fuel.
Do not remove any labels. Replace any damaged
label.
Use accessories recommended by Ingersoll–Rand.
Use only impact sockets and accessories. Do not
use hand (chrome) sockets or accessories.
03537016
Form P6878
Edition 4
February, 1994
