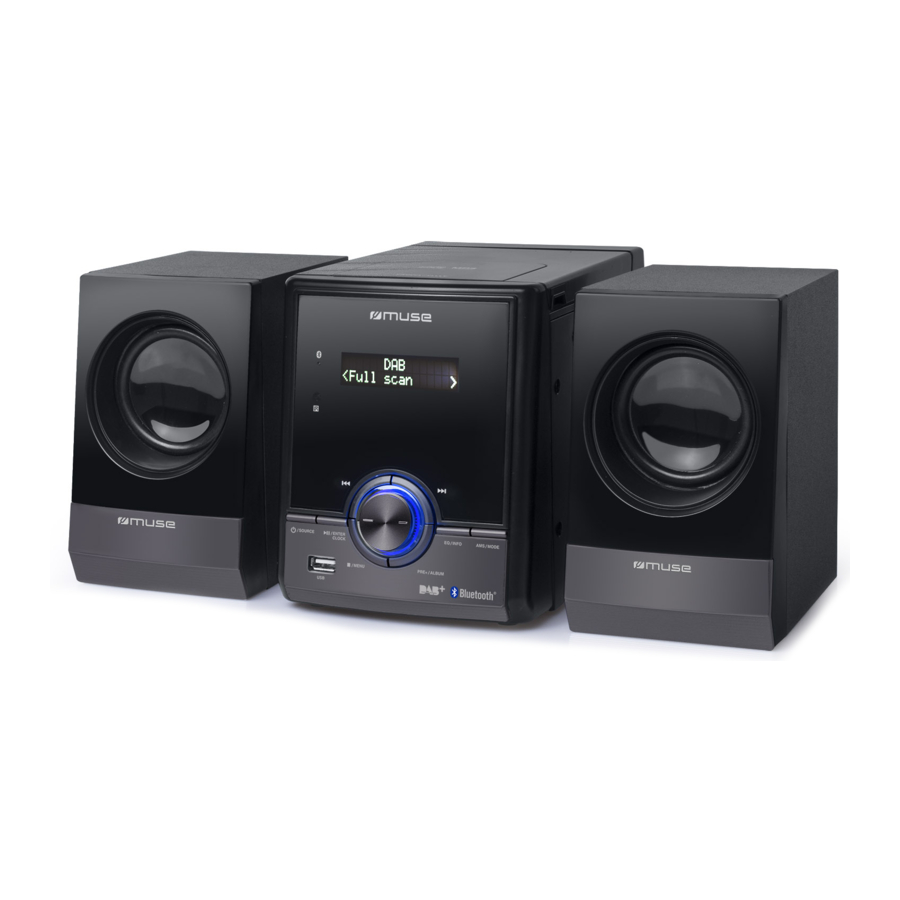

Muse M-39 DBT - Micro System CD/MP3 With Bluetooth Manual

LOCATION OF CONTROLS

Please read the instruction carefully before operating the unit.

FRONT VIEW

1. LCD dot matrix display
2. Bluetooth indicator
3. Remote sensor
4. / SOURCE button:
   To turn unit on/off; To select function mode: FM, DAB, CD, USB, Bluetooth and AUX IN.
5. USB port
6. / ENTER/ CLOCK:
   Play/Pause; confirm the selection; to set the date and time
7. / MENU:
   Stop playback; Enter into Menu mode
8. VOLUME control:
   volume up/ down
9. PRE+/ ALBUM:
   Radio preset up; to select the desired folder
10. EQ/ INFO:
    To select desired sound effects: STANDARD/ CLASSIC/ ROCK/ POP/ JAZZ/ BASS; To preview further information
11. AMS/ MODE:
    auto scan the station in radio mode; To program playback sequences/ to adjust the playback mode in CD/ USB mode; pairing in Bluetooth mode
12. buttons:
    Skip/ Search/ Tuning
13. Speaker box

BACK VIEW

14. Right speaker jack
15. FM/ DAB antenna
16. Left speaker jack
17. Phones jack
18. Aux in jack
19. AC cord
20. Speaker cord

TOP VIEW

21. SNOOZE/ SLEEP button
22. Disc compartment

REMOTE CONTROL

R1. button: To turn unit on/off
R2. SOURCE button: To select function mode: FM, DAB, CD, USB, Bluetooth and AUX IN
R3. EQ button: To select desired sound effects: STANDARD/ CLASSIC/ ROCK/ POP/ JAZZ/ BASS
R4. CLOCK button: to set the date and time
R5. TIMER button: To set timer function
R6. SLEEP button: To select sleep time
R7. ALARM 1 button: To set alarm 1 time
R8. ALARM 2 button: To set alarm 2 time
R9. SNOOZE button
R10. MENU button: To access the main menu
R11. INFO button: To preview further information
R12. ENTER button: confirm the selection/ settings
R13. button: Stop playback
R14. button: Play/ Pause
R15. VOL+/- buttons: To adjust volume
R16. buttons: Skip/ Search/ Tuning
R17. AMS/ MODE: auto scan the station in radio mode; To program playback sequences/ to adjust the playback mode in CD/ USB mode; pairing in Bluetooth mode
R18. MUTE button: To mute or restore sound
R19. PRE+/ ALBUM button: Radio preset up; to select the desired folder

The remote control operates on 1pc "CR2025" lithium battery (included). To power up the remote control, remove the insulation tab from the back of unit.

REPLACING BATTERY FOR THE REMOTE CONTROL

1. Push the button toward right.

2. Pull the battery loader out.
3. Insert one "CR2025" size battery with the positive side (+) facing up.
4. Replace the cover.

NOTES:

• Before throwing any batteries away, consult your distributor who may be able to take them back for specific recycling.
• If the remote control is not going to be used for a long time, remove the battery to avoid damage caused by battery leakage corrosion.
• Attention should be drawn to the environmental aspects of battery disposal.
• Do not throw batteries in fire!
• Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

Do not ingest the battery, Chemical Burn Hazard (The remote control supplied with).
This product contains a coin/ button cell battery. If the coin/ button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
Keep new and used batteries away from children.
If the battery compartment does not close securely, stop using the product and keep it away from children.
If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

SPEAKER CONNECTION

Plug the RIGHT / LEFT speakers' cord into the speaker input sockets at the rear of the unit.

POWER SUPPLY

This set operates on AC 230V 50Hz.
Connect the power cord to a convenient AC wall outlet.

SETTING DATE AND TIME

The first time you listen to DAB/DAB+ radio, the time and date of the unit will synchronize automatically to the broadcast by the DAB service in 24 hour mode, which is in line with daylight saving.

If you want to set the time and date manually, follow the steps as below:

1. In standby mode, press and hold CLOCK to enter into date and time setting mode. The time format (24 or 12 hours display) digits flash.
2. Press to set the hour format. Press CLOCK to confirm and hour digits flash.
3. Repeat step 2 to consecutively perform the settings for hour, minutes, year, month, date.
4. The correct time is shown on display when finish date and time setting.

NOTE:
In 12H clock format, be sure to observe the AM or PM indicator to set the hour correctly.

SETTING THE ALARM AND THE ALARM MODE

1. In standby mode, press and hold ALARM 1 button on remote control for a few seconds, the hour digits flash.
2. Press and / or to set the time of wake up.
3. Press ALARM 1 button then press or to select the source of wake up FM, DAB, CD, USB or Buzzer. Press ALARM 1 button to confirm.
   Noted:
   if you select the wake up source is FM or DAB, you have to select your desire preset station. Then press ALRAM 1 to confirm.
4. Press or to select your desired alarm volume.
5. Press ALARM 1 to confirm. The alarm 1 indicator lights up.

Note:

• Same procedure applies for alarm 2 with ALARM 2 button.
• Preset the station before you select the wake up source by FM or DAB. For the station preset, please refer to "RADIO".
• Make sure you have placed a CD disc in the CD compartment or insert a USB into the USB port when you select the wake up source by CD or USB. If the selected wake up source does not exist, the unit will wake up by buzzer when the alarm time reaches.

Stopping the Alarm

1. Alarm repetition
   Press SNOOZE. The alarm stops and will sound again 9 minutes later.

2. Alarm stop
   Press ALARM 1 / in remote control or hold on unit. The alarm1 will sound again the next day at the same time.

3. Alarm Cancellation
   In standby mode, press ALARM 1 button repeatedly until "ALARM OFF" to cancel the alarm1 permanently. The alarm1 indicator lights off.

Note:
Same procedure applies for Alarm2 with ALARM 2 button.

TIMER

1. In standby mode, press and hold TIMER button on remote control for a few seconds, the hour digits flash.
2. Press and / or to set the time of timer on.
3. Press TIMER button then press orto select the source of timer mode: FM, DAB, CD, USB.
4. Press TIMER button then press and / or to set the time of timer off.
5. Press TIMER button again to confirm. The unit will turn off. It will play automatically in the range you set.

SLEEP FUNCTION

When the unit is on, to fall asleep with the music, repeatedly press SLEEP to select 120-110-100-90-80-70-60-50-40-30-20-10-05 minutes of listening. The unit will automatically turn off after the specified time. To cancel the sleep function, repeatedly press SLEEP button until "OFF" display.

AUDIO CONTROLS

1. Press button on unit or remote control to turn on the unit.
2. Long press button on unit or short press button on remote control to turn off the unit.
3. The function (FM/ DAB/ CD/ USB/ BLUETOOTH/ AUX IN) is selected by pressing SOURCE button repeatedly.

In a concern of saving energy, when playback has reached to the end or listening volume is set at a very low level and no control is operated on the device for a period of 20 minutes, the unit will automatically switch to Standby mode.

VOLUME

Rotate Volume knob on unit or press VOL+/- buttons on remote control to adjust the sound to comfortable level. The volume level will be displayed for a few seconds.

MUTING THE SOUND

When the unit is on, press MUTE button to mute the sound. Press again to restore.

EQ

Press and hold EQ button on unit or press EQ button on remote control repeatedly to toggle among the different sound effects STANDARD, CLASSIC, ROCK, POP, JAZZ and BASS. The selection will show on display for few seconds.

DISC OPERATION

1. Press button on unit or remote control to turn on the unit.
2. Press SOURCE button repeatedly to select CD function.
3. Lift up the CD door.
4. Place the CD with label side up inside the CD compartment and close the CD compartment.
5. Playback starts automatically after a few seconds.

BASIC OPERATION

PLAY/PAUSE
To temporarily stop playing, press button.
To resume play, press this button again.

STOP
Press button to cease to play. Total number of tracks will show on display.

Select a track

1. Press to skip forward to the next track or repeatedly to skip several tracks.
2. Press return to the beginning of the track, or press repeatedly to skip backwards several tracks.

Fast search backward/forward
Press and hold the / button. The disc/ USB will search at high speed in the forward or backward direction. Normal play will continue when you release the button.

Select a folder (mp3 only)
Press ALBUM to select the first track of next folder of your current disc or USB.
Note:
The MP3 icon lights up during playback for mp3 files.

USB OPERATION

1. Press button on unit or remote control to turn on the unit.
2. Connect an USB device to the USB port on unit.
3. Press SOURCE button to select USB mode. After a few seconds, playback starts automatically.

Notes:

• The total number of MP3 files on the USB device should not exceed 999.
• The device may not contain more than 99 directories.
• The reading time takes about a few seconds or more depending on the amount of MP3 files and folders on USB device.
• Do not put anything other than a USB device to the port of this unit. Other objects may damage the USB mechanism.
• The USB socket must not be connected to the computer directly, for that may damage the unit.
• There are many USB devices in the market. We cannot guarantee to support all different models. Please try another USB device if your device is not supported.

PLAY MODES (CD/MP3 ONLY)

Press the MODE button repeatedly to select different kinds of play mode with the following sequence.

For Audio CDs: Repeat one Repeat All Random Normal

For MP3 Files: Repeat one Repeat Album Repeat All Random Normal

Repeat one – To repeat the track currently playing.
Repeat All – To repeat all tracks
Repeat Album – To repeat all tracks in the entire album/ folder.
Random – all the tracks will be played in random.
Normal – play the tracks in sequence.

Program playback (only CD/MP3 mode)

1. In stop mode, press AMS button. The display will show "P_01".
2. Press ALBUM button to select desired folder and press to select a desired track.
3. Press AMS button to confirm.
4. Repeat above steps to program up to 20 tracks for CD and 99 tracks for MP3.
5. Press to start program playback.
6. Press button once to stop the program playback.
7. To cancel program playback, press button twice. "MEM" indicator will turn off.

BLUETOOTH FUNCTION

The Bluetooth^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by New One S.A.S is under license. Other trademarks and trade names are those of their respective owners.

1. When the unit is ON, press SOURCE button repeatedly to select Bluetooth mode. The display will show "Bluetooth". The Bluetooth indicator will start to blink rapidly.
2. On the Bluetooth device, enable Bluetooth and select "M-39 DBT" from the Device List. (Refer to the user manual of the device to be connected for detailed operations.) If the Bluetooth device prompts for a passcode, use "0000". Some Bluetooth devices will ask you to accept the connection. Bluetooth indicator stop to blink when pairing is successful.

Tip: If you want to connect your Bluetooth speaker to another Bluetooth audio device, you need to disconnect current device first and make a new connection.
If the pairing fails, perform the following:
Press MODE button until the Bluetooth indicator blinks quickly to enter the Pairing mode. On the Bluetooth device, enable Bluetooth and select "M-39 DBT" from the Device List (see step 2 above).

• On some devices such as computers, once paired you must select the unit from the Bluetooth menu and choose "Use as Audio Device (stereo)" or similar.
• Pairing remains intact when the unit and/or your Bluetooth device is taken out of communication range. An active connection will be re-established when your Bluetooth device returns within range.
• When the unit is turned on again, it will automatically try to reconnect with the most recently paired Bluetooth device.

Using a Bluetooth Device

1. With a unit paired (see previous section), operate your Bluetooth device and its sound will be heard through the M-39 DBT's speakers.
2. Press button to pause playback. Press again to resume playback.
3. Select desired track with .
4. Adjust the volume using VOL+ / VOL- volume buttons. You can also adjust the volume on the device to which you are paired.

Hereby, NEW ONE S.A.S, declares that this MUSE M-39 DBT is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.
The declaration of conformity may be consulted at www.muse-europe.com

RADIO

LISTEN TO DAB/DAB+ RADIO

1. When selected DAB/DAB+ mode, the unit will start automatic scan for DAB/DAB+ stations if it's the first time to use. The display will change to "Scanning......". The DAB/DAB+ frequency will be showed and the number of stations found will be displayed.
2. When the scan is complete, the unit will select the first available station and start to play automatically. Stations will be listed in numerical and then alphabetical order by default.
   Note:
   When the DAB/DAB+ radio station list is stored, it will not search automatically again. Press AMS button to search and list station.
3. Press or to select the stations in the list.
4. When the desired station is displayed, press button to confirm. Or the desired station will be confirmed automatically after a few seconds if no further operation.
   There will be a short delay while your radio tunes to your selected station.

Note:

• If no broadcasts are found by DAB/DAB+ scan, "No DAB Station" appears in the display.
• For a better reception, extend the pigtail antenna.
• During the search operation, the sound level is automatically muted.

LISTEN TO FM RADIO

In FM radio mode, Press or button to manual tuning. Press and hold / button to automatic search.

Note:
For a better reception, extend the pigtail antenna.

PRESET STATION

In FM mode, press and hold AMS for few seconds and the unit will automatically save the first 30 FM stations. When you store on a channel already been preset, the previous station will automatically be cleared and replaced by the new station.
Note:
same procedure applies for DAB automatic storage when in DAB mode.

Listening to station presets
Press SOURCE button to select FM or DAB mode. Then press PRE+ and repeat the operation as many times as necessary to select your station. Press VOL+ or VOL- to adjust the sound level.
Note:
If you choose a station that hasn't been allocated, "Preset Empty" will be displayed. If the station has been allocated before, the frequency will be showed.

SETUP MENU

Navigating the setup menu.

1. In FM or DAB mode, press MENU button to enter into setup menu.
2. Press or button to scroll to one of the available options.
3. Press ENTER button to enter related setup.

FM Setting Menu

Scan setting
To select all stations or Strong stations only.
All stations: the automatic search locates at any available station.
Strong station only: the automatic search only locates at strong stations.

Audio setting
To select Stereo allowed or Forced mono.

System
To select the system setting options: Language, Time Update, Factory Reset, SW version.

• Language
  To select the desired language of the unit's menu: English, Deutsch, Français, Italiano, Nederlands, Norwegian and Danish.
• Time Update
  To select the time auto update mode: Auto update the time from the DAB signal, FM signal, ANY (DAB or FM signal) or no update.
• Factory Reset
  To clear all users defined settings.
• SW version (software version)
  To display the current software version.

DAB Setting Menu

Full Scan
This function allows you to automatically scan and create a list of receivable DAB/ DAB+ broadcasts.

Manual Tune
This function can be used to assist the positioning of the antenna or the unit to obtain the optimum reception for a specific channel or frequency.

DRC (Dynamic range compression)
DRC can make quieter sounds easier to hear when the unit is used in a noisy environment.
Press or button to select your desire DRC level: off, high, low.
Press ENTER button to confirm.
DRC off - no compression. This is the default setting.
DRC high - maximum compression.
DRC low - medium compression.

Note:
DRC is effective only in dynamic range compression broadcast.

Prune (remove stations that are listed but unavailable)
Press or to select "No" or "Yes", then press ENTER button to confirm or cancel removing all invalid stations.

System
Please refer to the system of FM Setting Menu.

REVIEWING MORE INFORMATION (FM/ DAB MODE)

Repeatedly press INFO button to review some unit settings (e. g. time, date) or available information (e. g. radio text, name) for the station you are listening.

CONNECTING AUXILIARY SOURCE

1. Connect your auxiliary source (e. g. mp3 player) to the Aux in jack. (Cable not included).
2. Press SOURCE repeatedly to select Aux in mode. The display will show "Aux".
3. Start playback from your auxiliary source.
4. Adjust the volume to desired level.
5. To stop playback, disconnect your auxiliary source from the Aux in jack.

USING HEADPHONES / EARPHONES

Maximum output voltage ≤150mV.
Wide Band Characteristic Voltage ≥ 75mV

HEADPHONE VOLUME WARNING

Connect earphones with the volume set low and increase it if required. Prolonged listening through some earphones at high volume settings can result in hearing damage. When headphones / earphones are connected, no sound will be emitted from the unit's speaker.

Avoid listening to sound at levels which may be harmful to your ears.

To prevent possible hearing damage, do not listen at high volume levels for long periods.

MAINTENANCE

Cleaning

Disconnect the unit from the mains supply before cleaning.

• Use a soft, dry, clean cloth. Regularly dust the vents at the back or sides.
• Using solvents, abrasive or alcohol-based products risks damaging the appliance.
• If an object or liquid enters inside the appliance, unplug it immediately and have it checked by an authorized engineer.

Notes on disc

• Do not use irregular shape CDs (example: heart-shaped, octagonal ones). It may result in malfunctions.
• Do not place more than one disc in the disc compartment.
• Do not try to open the disc compartment during playing.
• Do not touch the lens. Doing so may cause malfunction.
• If there is a scratch, dirt or fingerprints on the disc, it may cause tracking error. Before playing, clean the disc with a cleaning cloth. Wipe the disc from the center out. Don't store discs in places with high temperatures or high humidity, they can become warped. After playing, store the disc in its case.
• CD-Rs or CD-RWs playback capability at this player may vary depending on quality of media, CD-Burner, speed of burning and application software.

Important Note

• Before transporting the unit, remove the disc from the disc compartment.

SPECIFICATION

Power supply: AC 230V 50Hz
Power consumption: 10W
Speaker: 4 ohms

RADIO
FM: 87.5-108MHz
DAB/DAB+: 174.928-239.200 MHz

BLUETOOTH
Bluetooth Version: V2.1+EDR
Bluetooth: 2.402-2.48GHz
RF Output Power: 3.69 dBm
Working Distance: Up to 10 meters measured in open space (wall and structures may affect range of device)

Specifications are subject to change without notice.

NEW ONE S.A.S 10, Rue de la Mission, 25480 Ecole Valentin, France

Documents / Resources

References

• MUSE Electroménager - Découvrez la collection ! - MUSE

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Muse M-39 DBT - Micro System CD/MP3 With Bluetooth Manual
