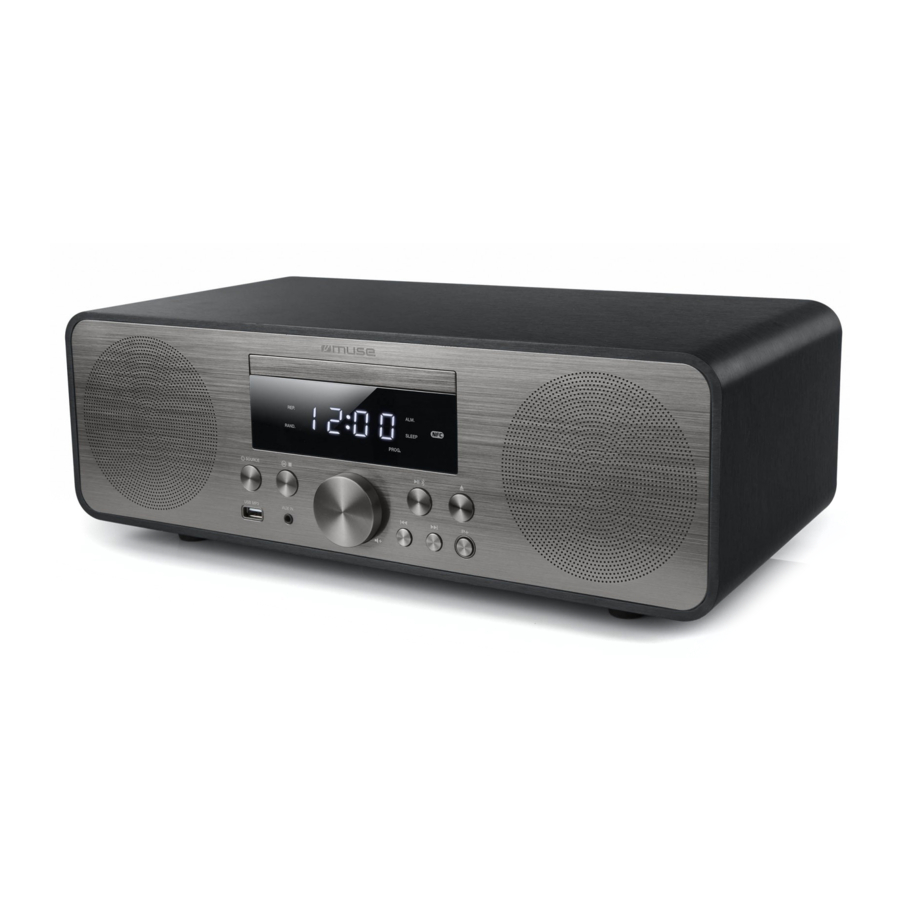

Muse M-880 BTC - Bluetooth Micro System With Radio, CD, USB Manual

Please read the instruction carefully before operating the unit.

LOCATION OF CONTROLS

1. LED display
2. CD compartment
3. Bluetooth indicator
4. Remote sensor
5. Main speakers
6. NFC Tag
7. / SOURCE: To turn unit on/off; To select function mode: Bluetooth, CD, FM, USB, AUX IN
8. USB port for MP3 playback
9. AUX IN jack (3.5mm)
10. : Memorization/ Stop playback
11. / : To adjust volume
12. : Play/ Pause, Bluetooth pairing function
13. , : Skip/ search/ Tuning
14. P+ : Preset up
15. : To open/ close the disc tray
16. FM wire antenna
17. DC IN jack
18. Repeat indicator
19. Radom indicator
20. Program indicator
21. Alarm indicator
22. Sleep indicator

REMOTE CONTROL

R1. To turn unit on/off

R2. : To mute or restore sound

R3. SOURCE: To select Bluetooth, CD, FM, USB, AUX IN mode.

R4. / : To adjust volume

R5. EQ button: To select desired sound effects: DEFAULT/ CLASSIC/ ROCK/ JAZZ/ POP

R6. LD button: Loudness On/ Off

R7. DIM. button: To adjust display brightness

R8. AUDIO button: To adjust Bass/ Treble

R9. ALM. / SLEEP button: To set alarm time; To select sleep time.

R10. CLOCK / / : To set clock time; Stop playback; Memorization

R11. button: To open/ close the disc tray.

R12. / : Select up/ down; Folder up/ down.

R13. , : Skip/search /Tuning

R14. / PAIRING: Play/Pause; Bluetooth pairing function

R15. REP. button: To repeat playback

R16. RAND. button: To turn on/off random play function;

R17. ATS / PROG.: Auto scan and preset radio stations; To program playback sequences

R18. 0-9, +10 buttons: Number entry

INSTALLING BATTERY

Insert 2 "AAA/ UM4" batteries to the remote control prior to use. Make sure to match their polarities (+/-) to the markings inside the compartment.

Before throwing any batteries away, consult your distributor who may be able to take them back for specific recycling.

NOTES:

• Never recharge the batteries, apply heat to them or take them apart.
• If the remote control is not going to be used for a long time, remove the battery to avoid damage caused by battery leakage corrosion.
• Attention should be drawn to the environmental aspects of battery disposal.
• Do not throw batteries in fire!
• Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

POWER SUPPLY

AC ADAPTOR

The supplied AC adaptor is suitable for use on AC main supplies of 100-240V ~ 50/60Hz and should only be connected to a mains supply within these parameters.

In a concern of saving energy, when playback has reached to the end or listening volume is set at a very low level and no control is operated on the device for a period of 2 hours, the unit will automatically switch to Standby mode.

• The AC adaptor included with this unit is for its use only. Do not use it with other equipment.
• Turn off the unit before unplugging the AC adaptor from the unit so as to avoid the unit being damaged.
• When the unit is not going to be used for long time, disconnect the AC adaptor from the AC outlet.
• Be sure to use it near the wall outlet and easily accessible. If a malfunction occurs, disconnect the plug from the wall outlet at once.
• AC adaptor is used as the disconnect device. It shall remain readily operable and should not be obstructed during intended use. To be completely disconnected the apparatus from supply mains, the AC adaptor of the apparatus shall be disconnected from the mains socket outlet completely.
• Never use an AC adaptor that is damaged, route power lead in a safe manner and make sure it is not subjected to trapping or pinching. If the power lead is damaged refer to a qualified service agent.

SETTING TIME

1. In standby mode, press once to enter time setting mode and the hour digits flash.
2. Press / on unit or / on remote control to set the hour value. Press to confirm and minute digits flash.
3. Press / on unit or / on remote control to set the minute value and press again to confirm.

AUDIO CONTROLS

LOUDNESS

Press LD button on remote control to turn on / off loudness.

Loudness on: the display shows ""

Loudness off: the display shows ""

BASS / TREBLE

Press AUDIO button on remote control to select Bass or Treble function, the corresponding icon will appear on display, then press or to set bass or treble level. Release the button to confirm the setting.

EQ

Press EQ button on remote control to toggle among the different sound effects (DEFAULT/ CLASSIC/ ROCK/ JAZZ/ POP). The selection will show on display for few seconds.

TURNING UNIT ON/OFF

1. Press button to turn on the unit.
2. Long press button on unit or short press button on remote control to turn off the unit.

SELECTING FUNCTION

When the unit is ON, press SOURCE button repeatedly to select the desired function in cycle: Bluetooth, CD, FM, USB, AUX IN.

BLUETOOTH FUNCTION

The Bluetooth^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by New One S.A.S is under license. Other trademarks and trade names are those of their respective owners.

Pairing a Bluetooth Device

1. When the unit is ON, press SOURCE button on unit repeatedly to select Bluetooth mode. The display will show "". The Bluetooth indicator will start to blink rapidly.
2. On the Bluetooth device, enable Bluetooth and select "M-880BTC" from the Device List. (Refer to the user manual of the device to be connected for detailed operations.) If the Bluetooth device prompts for a pass code, use "0000". Some Bluetooth devices will ask you to accept the connection. You will hear an indication voice when pairing is successful. The Bluetooth indicator remains ON.

Tip: If you want to connect your Bluetooth speaker to another Bluetooth audio device, you need to disconnect current device first and follow the steps above to make a new connection.

If the pairing fails, perform the following:

Press and hold the / PAIRING button until the Bluetooth indicator blinks quickly to enter the Pairing mode. On the Bluetooth device, enable Bluetooth and select "M-880BTC" from the Device List (see step 2 above).

• On some devices such as computers, once paired you must select the unit from the Bluetooth menu and choose "Use as Audio Device (stereo)" or similar.
• Pairing remains intact when the unit and/or your Bluetooth device is taken out of communication range. An active connection will be re-established when your Bluetooth device returns within range.
• When the unit is turned on again, it will automatically try to reconnect with the most recently paired Bluetooth device.

Using a Bluetooth Device

1. With a unit paired (see previous section), operate your Bluetooth device and its sound will be heard through the M-880BTC's speakers.
2. Press the button to pause playback. Press again to resume playback.
3. Select desired track with / .
4. Adjust the volume using the / Volume buttons. You can also adjust the volume on the device to which you are paired.

Using a NFC Device

NFC (Near Field Communication) is a technology that enables short-range wireless communication between NFC-enabled devices, such as mobile phones.

1. When the unit is ON, press SOURCE button repeatedly to select Bluetooth mode. The display will show "". The Bluetooth indicator will start to blink rapidly.
2. Enable NFC and Bluetooth on your Bluetooth device (see the user manual of your device for details), tap the NFC device on the NFC tag on unit until you hear an indication voice. The NFC device is connected to this unit via Bluetooth.
3. Select and play audio files or music on your NFC device.
4. To break the connection, tap the NFC device with the NFC tag on this unit again.

Note:
The operational range between the main unit and a NFC device is approximately 10 meters.

STEREO PAIRING

This function makes it possible for you to get stereo surround sound quality. It requires two Bluetooth speakers M-880 BTC to realize the real Bluetooth radio channel wireless separation, therefore, you've got to purchase two M-880 BTC.

Tips: it is suggested that the distance between the main speaker and secondary speaker is within 4 meters.

1. Turn on two Bluetooth speakers M-880 BTC.
2. When both speakers are in pairing mode, press button on one Bluetooth speaker which will become the main speaker (Left channel), then it will search and connect to the secondary speaker. They will recognize the left and right channel automatically.
3. Connect your main speaker to Bluetooth enabled device (e.g. smart phone).
4. Play your song and listen to the sound in stereo.
5. Press button on either speaker to pause playback. Press again to resume playback.
6. Press and hold button on the main speaker to disconnect the stereo pairing.

LISTENING TO DISC

1. When the unit is ON, press SOURCE button to select CD mode. The display will show "" for a few seconds. Press to open the disc tray. Insert a disc with label side facing up. Press again to close the disc tray. (Note: If there is no disc inserted, the display will show "").
2. After a few seconds, the total number of track will appear on display for a few seconds and playback starts automatically.

RADIO

Listening to the radio

When the unit is ON, press SOURCE button to select Radio mode. The display will show "" for a few seconds and change to current frequency and then change to clock time.

Manual search

1. Choose your radio station with or .
2. Adjust the volume by or to the desired level.

Automatic search

Press and hold or for few seconds. The automatic search locates strong stations. A station with a weak signal can be set manually by repeatedly pressing or .

Note: For a better reception in FM, extend the antenna.

Preset stations

The unit can store 30 FM stations.

Manual storage

1. Select a radio station manually or in automatic search.
2. Press . "" appears on the screen.
3. Press P+ on unit or / on remote control to select a preset channel.
4. Press to save it.
5. Repeat steps 1-4 to store other stations.

Automatic storage

Press ATS on remote control and the unit will automatically save the first 30 FM stations. When you store on a channel already been preset, the previous station will automatically be cleared and replaced by the new station.

Listen to the station presets

1. Press P+ on unit or / on remote control to select your preset station.
2. Adjust the volume by or to the desired level.

USB PLAYBACK

1. Connect an USB device to the USB MP3 port on unit.
2. Press SOURCE button on unit repeatedly or press USB button on remote control to select USB mode. The display will show "" for a few seconds and playback will start automatically.
3. Select desired track with / .

Notes:

• The total number of MP3 files on the USB device should not exceed 999.
• The device may not contain more than 99 directories.
• The reading time takes about a few seconds or more depending on the amount of MP3 files and folders on USB device.
• Do not put anything other than a USB device to the port of this unit. Other objects may damage the USB mechanism.
• The USB socket must not be connected to the computer directly, for that may damage the unit.
• There are many USB devices in the market. We cannot guarantee to support all different models. Please try another USB device if your device is not supported.

PLAY MODES (CD/MP3)

Repeat playback

Press REP. button on remote control repeatedly to select a play mode, Repeat indicator will lights up

• Repeat One: display shows ""
• Repeat folder: display shows "". (MP3 only)
• Repeat All: display shows ""

To cancel repeat playback, press REP. button repeatedly until display shows "" and repeat indicator disappears.

Random playback

Press RAND. button on remote control. Random indicator lights up. It will play all tracks in random order. Press RAND. button again to cancel this function. Random indicator lights off.

Program playback

1. In stop mode, press PROG. button on remote control. The display will show "" for a few seconds and change to "". Program indicator lights up.
2. Select the desired track with / , then press PROG. button to conform.
3. Repeat above steps to program up to 32 tracks for CD and 99 tracks for MP3.
4. Press to start program playback.
5. Press button on remote control once to stop the program playback. Press twice to cancel this function.

Select a folder (mp3 only)

• Press on remote control to select the first track of next folder of your current disc or USB.
• Press on remote control to select the first track of previous folder of your current disc or USB.

By number buttons +10, 0-9

Use the number buttons to input the track number, and it will start playback from the selected track automatically.

If you want to input the track number bigger than 9, use the +10, 0-9 button.

Example 1, to select the 10th track, firstly press 1 then press 0

Example 2, to select the 14th track, firstly press 4 then press +10 (4+10=14)

Example 3, to select the 25th track, firstly press 5 then press twice +10 (5+10+10=25)

CONNECTING AUXILIARY SOURCE

1. Connect your auxiliary source (e.g. mp3 player) to the AUX IN jack on the top of unit (cable included).
2. Press SOURCE button repeatedly to select AUX mode. The display will show "" for a few seconds and change to clock time.
3. Start playback from your auxiliary source.
4. Adjust the volume to desired level.
5. To stop playback, disconnect your auxiliary source from the AUX IN jack.

SETTING THE ALARM

Setting the alarm

In standby mode, press ALM. on remote control to enter alarm setting mode. The display will show "".

1. Press / on unit or / on remote control to enter alarm setting mode. "" appears on display. Press ALM. to confirm and the hour digits flash.
2. Press / on unit or / on remote control to set the hour value. Press ALM. to confirm and minute digits flash.
3. Press / on unit or / on remote control to set the minute value and press ALM. again to confirm. The alarm indicator remains on.

Note: The alarm indicator will blink when the alarm time is reached.

NOTES:

• The alarm will wake up to the previous mode (Bluetooth, CD, FM, USB, AUX IN) when the alarm time is reached. Select your desired wake-up mode before the unit is turned off.
• If there is no audio input from your selected wake-up source when the alarm time is reached, it will switch to FM mode automatically after approximate one minute.
• If the wake-up source is FM mode, select your desired radio station before the unit is turned off.

Stopping the Alarm

Alarm stop
Press . The alarm will sound again the next day at the same time. Alarm indicator remains on.

Alarm Cancellation

1. In Standby mode, press ALM. on remote control to enter alarm setting mode.
2. Press / on unit or / on remote control to select "" and press ALM. again to cancel the alarm permanently. The alarm indicator lights off.

SLEEP FUNCTION

In sleep mode, the unit will turn off automatically after a specified time.

You can select duration in minutes before the unit turns off automatically.

1. Press SLEEP on remote control repeatedly to select 90-60-45-30-15-10 or 5 minutes of listening. The SLEEP Indicator lights up.
2. To cancel the sleep function, repeatedly press SLEEP button until "00" is displayed. The SLEEP indicator lights off.

Note:

1. Sleep time can only be set when the unit is turned ON.
2. Press SLEEP button to check the remaining sleep time.

DIMMER

Press DIM. button on remote control to select the brightness of the screen: high, low or off.

MAINTENANCE

Cleaning

Disconnect the unit from the mains supply before cleaning.

• Use a soft, dry, clean cloth. Regularly dust the vents at the back or sides.
• Using solvents, abrasive or alcohol-based products risks damaging the appliance.
• If an object or liquid enters inside the appliance, unplug it immediately and have it checked by an authorized engineer.

Notes on disc

• Do not use irregular shape CDs (example: heart-shaped, octagonal ones). It may result in malfunctions.
• Do not place more than one disc in the disc compartment.
• Do not try to open the disc compartment during playing.
• Do not touch the lens. Doing so may cause malfunction.
• If there is a scratch, dirt or finger prints on the disc, it may cause tracking error. Before playing, clean the disc with a cleaning cloth. Wipe the disc from the center out. Don't store discs in places with high temperatures or high humidity, they can become warped. After playing, store the disc in its case.

Important Note

• Before transporting the unit, remove the disc from the disc compartment.

TECHNICAL SPECIFICATION

GENERAL
POWER SUPPLY: DC 12V
Consumption: 24W

BLUETOOTH
Bluetooth Version: V4.2
Bluetooth: 2.402-2.48GHz
RF Output Power: -2.889 dBm
Working Distance: Up to 10 meters measured in open space (wall and structures may affect range of device)

RADIO
FM 87.5-108MHz

Specifications are subject to change without notice.

TROUBLESHOOTING GUIDE

Should this unit exhibit a problem, check the following before seeking service:

No Power

• Make sure unit is connected to AC power.

No Sound – General

• External device's volume is set to minimum; raise volume.
• The M-880BTC's volume is set to minimum; raise volume.

The Bluetooth device cannot pair or connect with the unit

• You have not activated the Bluetooth function of your device. Refer to the user manual of your device to activate Bluetooth function.
• The unit is not in pairing mode. Press and hold the / PAIRING button until the Bluetooth indicator blinks fast.
• The unit is already connected with another Bluetooth device; disconnect that device and then try again.

MORE INFORMATION

To reduce the risk of electric shock, do not open the device, there is no party inside for the user. Refer all servicing to qualified personnel.

The lightning with the arrow symbol in the triangle is a warning sign alerting the user to "dangerous voltage" inside the unit.

The exclamation point in the triangle is a warning sign alerting the user of important instructions accompanying the product.

The Caution mark is located at the back of the device.

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

Invisible laser radiation when open and interlocks defeated. Avoid exposure to beam.

This compact disc player is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT marking is located at the back of the device.

• The use of apparatus in moderate climates.
• The Marking plate is located at the back of the device.
• Make sure to have a minimum distance of 5 cm around the unit for sufficient ventilation.
• Ensure that the ventilation openings is not covered with items such as newspapers, tablecloths, curtains, etc.
• Do not place naked flame sources, such as lighted candles on he apparatus.
• Do not expose this appliance to dripping or splashing water.
• Do not place objects filled with liquids, such as glass, vase on the device.
• Do not throw batteries into fire! Respect the environment when disposing of used batteries.
• Batteries should not be exposed to excessive heat such as sunshine, fire or other similar heat source.
• The power plug is used as a disconnect device and must be easily accessible. To be completely disconnected from the power, the plug of the appliance should be disconnected completely. The socket must not be obstructed and should be easily accessible during intended use.
• Under the influence of fast transient and / or electrostatic electric phenomenon, the product may malfunction and the user must perform a power reset of the device.

If in the future, you need to get rid of this product, please note that Waste electrical products should not be disposed of with household waste. Recycling facilities exist. Check with your municipality or ask your dealer for advice. (Directive for Waste Electrical and Electronic Equipment)

Hereby, NEW ONE S.A.S, declares that this MUSE M-880 BTC is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be consulted at http://www.muse-europe.com

NEW ONE S.A.S
10, Rue de la Mission, 25480 Ecole Valentin, France
