Description
C5‐MDS is used to connect multi‐door
stations.
C5‐MDS is used to switch audio and
video of multi‐door stations
Up to 4 door station can be connected to
a C5‐MDS
Multi-Door Station Switcher for C5 System

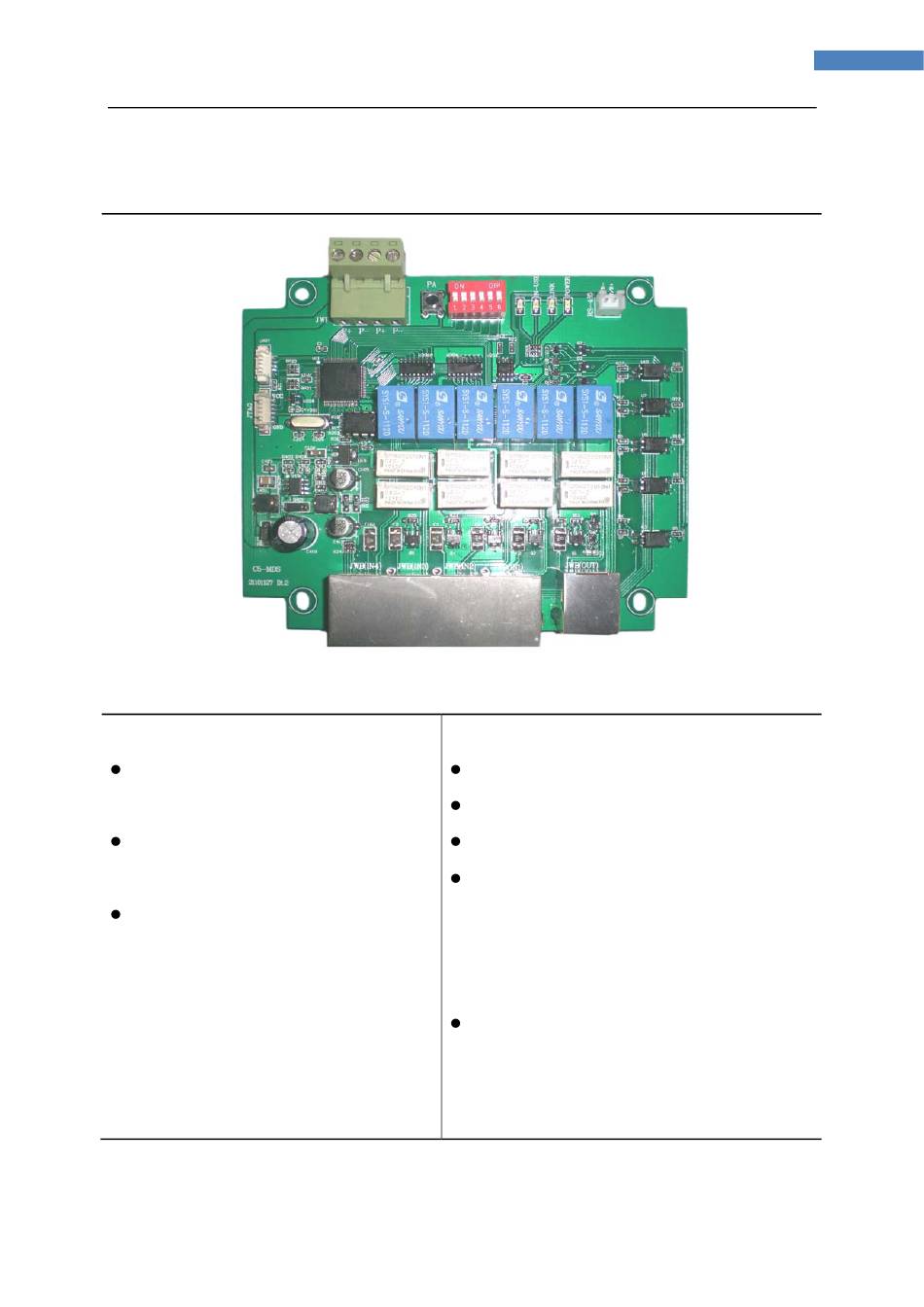

Product Picture
Switch audio of multi‐door stations
Switch video of multi‐door stations
Up to 4 C5‐MDS can be connected in one block
Input signal of door stations connected to
C5‐MDS is protected by signal isolation
technology. The failure door station won't
effect signal of others
Error Indicator
TECHNICAL MANUAL
C5-MDS
Feature
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Dahua C5-MDS
Summary of Contents for Dahua C5-MDS
- Page 1 TECHNICAL MANUAL C5-MDS Multi-Door Station Switcher for C5 System Product Picture Description Feature C5‐MDS is used to connect multi‐door Switch audio of multi‐door stations stations. Switch video of multi‐door stations C5‐MDS is used to switch audio and Up to 4 C5‐MDS can be connected in one block ...
- Page 2 2 Technical Guide of C5 SYSTEM Ports and Function 1.1Ports： ERROR LINK RS-485 RS-485 INUSE POWER UART UART All bits on S1 be set to OFF position 1. When use C5‐F4, set to 1V 2 position(bottom) JTAG 2. When use C5‐F4DV, set to 2V 2A position(middle) 3. When use C5‐F4Q, set to 1V 4A position(top) 1V 4A ...
- Page 3 TECHNICAL MANUAL Continuous： Item Silk‐screen Description P+：positive ，18V； Power Input JWP P ‐：negative； Two couple of Power input ports First Door Station JWB(IN1) Connected to first door station( Video, audio, data included) Connected to second door station(Video, audio, data Second Door Station JWB(IN2) included) Third Door Station JWB(IN3) Connected to third door station(Video, audio, data included) Connected to fourth door station(Video, audio, data Fourth Door Station JWB(IN4) included) Press PA button and IN‐USE Indicator will light, then start to Test Button PA ...
- Page 4 4 Technical Guide of C5 SYSTEM Parameter Setting 3.1 DIP Switch Setting DIP Switch Status： S1 Setting（Defaults are OFF） DIP1 DIP2 C5‐MDS Address OFF OFF The first C5‐MDS ON OFF The second C5‐MDS OFF ON The third C5‐MDS ON ON The fourth C5‐MDS DIP3 DIP4 Ports used OFF OFF CH1 used ON OFF CH1 & CH2 used ...
- Page 5 TECHNICAL MANUAL Specification： Working Voltage： DC 18V， Power Supply model：PS2 or PS5-18V Standby Current： 30mA Working Current： 100mA Video Signal： CCIR, 1Vp-p , 75Ω Audio Signal： 300~3,400 KHz, 0~240 mV, 120Ω Transmission Mode： Bus mode Dimension： 206*167*45mm Working Temperature： ‐10°C ‐ 40°C Expanded number： ...
