Emergency Locator Transmitters
Orolia S.A.S - A Company of the Orolia Group
REMOTE CONTROL PANELS
P/N : S1820513-11 / S1820513-14
Revision 04
First issue: MAR 04/2003
INSTALLATION MANUAL
USER MANUAL
RC200 / RC200 NVG
DMA00514E
Ref: 0122145
Date of rev. OCT 03/2013
Advertisement
Table of Contents
Related Manuals for Kannad RC200
Summary of Contents for Kannad RC200

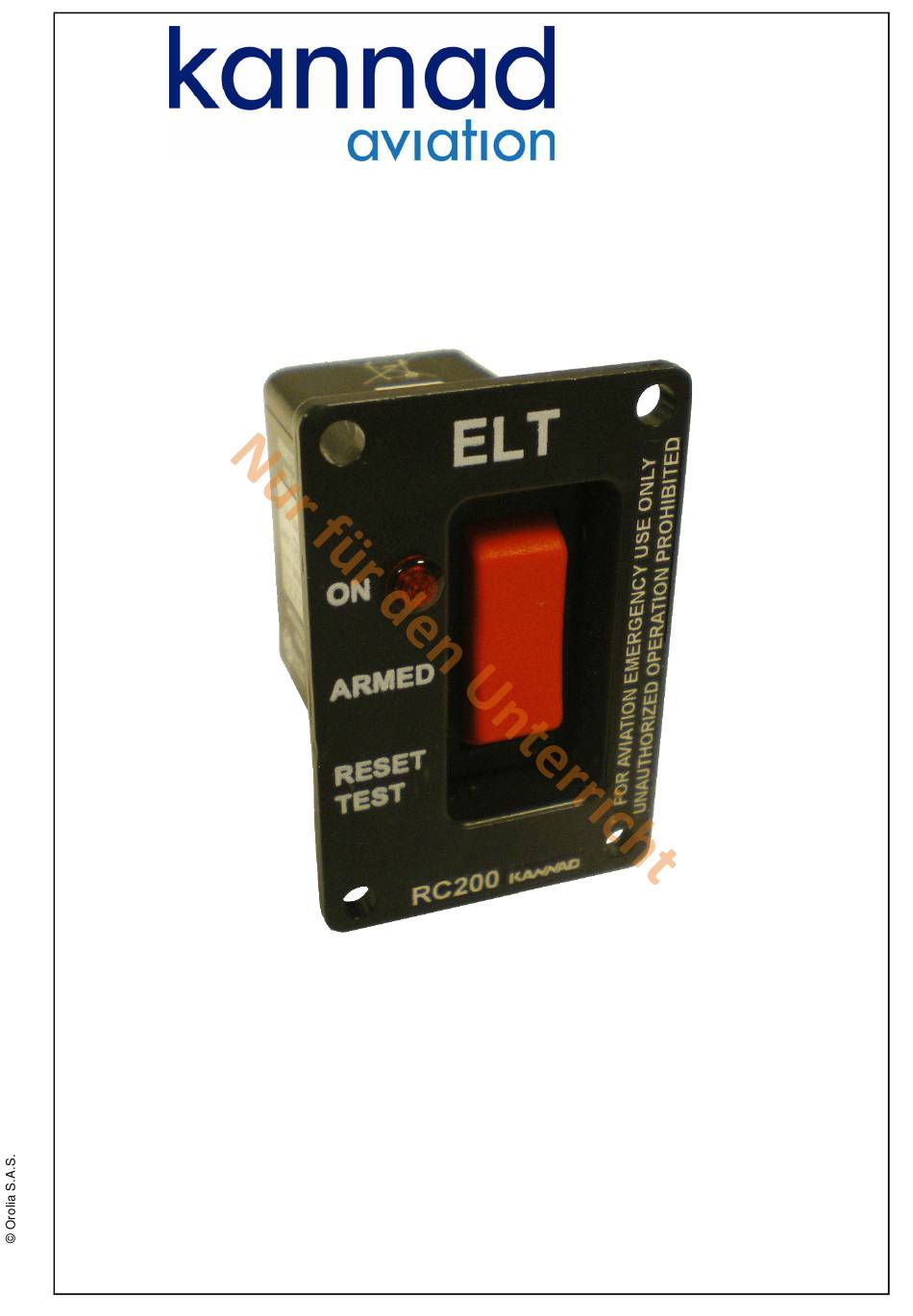

- Page 1 Ref: 0122145 Emergency Locator Transmitters Orolia S.A.S - A Company of the Orolia Group INSTALLATION MANUAL USER MANUAL REMOTE CONTROL PANELS RC200 / RC200 NVG P/N : S1820513-11 / S1820513-14 Revision 04 Date of rev. OCT 03/2013 First issue: MAR 04/2003...

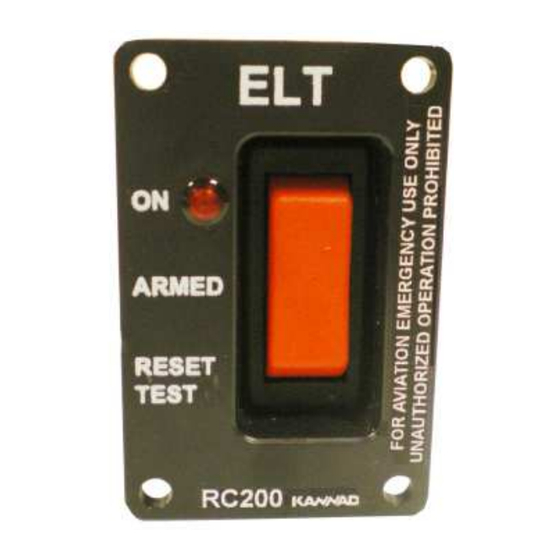

- Page 2 (Refer to D. RCP operational tests, page 15). 5. Working mode A. Controls The following elements are to be found on the RC200 remote control panels: 1. a 3-position switch (ON, ARMED, RESET & TEST); 2. a red visual indicator.
- Page 3 INSTALLATION MANUAL / USER MANUAL REMOTE CONTROL PANELS RC200 / RC200 NVG 3. RESET & TEST is used either to stop the ELT transmission if activated or to perform a self-test. Figure 9: 3-position switch As required by regulations, the OFF mode is not available on the remote control panel (RTCA DO 204 §...
- Page 4 INSTALLATION MANUAL / USER MANUAL REMOTE CONTROL PANELS RC200 / RC200 NVG 6. Operation Figure 10: Operating modes A. Stand by mode The stand by mode is the ARMED position (idle position). The switch is in the middle position. This mode is used to enable automatic activation by the shock sensor of the ELT provided that the ELT switch is in armed position.
- Page 5 INSTALLATION MANUAL / USER MANUAL REMOTE CONTROL PANELS RC200 / RC200 NVG Press the switch downwards for at least 1 second then release it (the switch comes back in ARMED position): The visual indicator is flashing as follows: • one short flash at the beginning of the self-test sequence...
- Page 6 INSTALLATION MANUAL / USER MANUAL REMOTE CONTROL PANELS RC200 / RC200 NVG D. RCP operational tests Check correct operation of RCP visual indicator by switching ELT and RCP as described in the following sequential procedure, Figure 11: RCP visual indicator operation (with ELT switch in the «ARM»...
- Page 7 Distributed by Manufactured by Orolia S.A.S Z.I. des Cinq Chemins CS10028 56520 GUIDEL - FRANCE Tél. / Phone : +33 (0) 2 97 02 49 49 Fax : +33 (0) 2 97 65 00 20 Web: http://www.kannadaviation.com A Company of the Orolia Group DMA00514E Ref.: 0122145...
