Installation
Before installing your camera, you have to read the following cautions.
1. You have to check whether the location can bear ÿve times of the weight of your camera.
2. Don't let the cable to be caught in improper place or the electric line cover to be damaged. Otherwise
it may cause a breakdown or ÿre.
3. When installing your camera, don't allow any person to approach the installation site. If you have any
valuable things under the place, move them away.
NOTE: Based on the installation environment, remove the rubber
plug on the side of the camera's bracket and use the gap as a
cable guide to prevent cables from getting caught between
the camera and the mounting surface, which can cause
damage to the cables or prevent a proper mounting.
Reset Button
T-W Jog Button
Test Video Output
Reset to the Factory Default
Press the reset button for 5 seconds to return the setup
to the factory default.
Warning
If you press the 'Reset' button, you will lose all setting
data. If needed, please, make a note for further
installation.

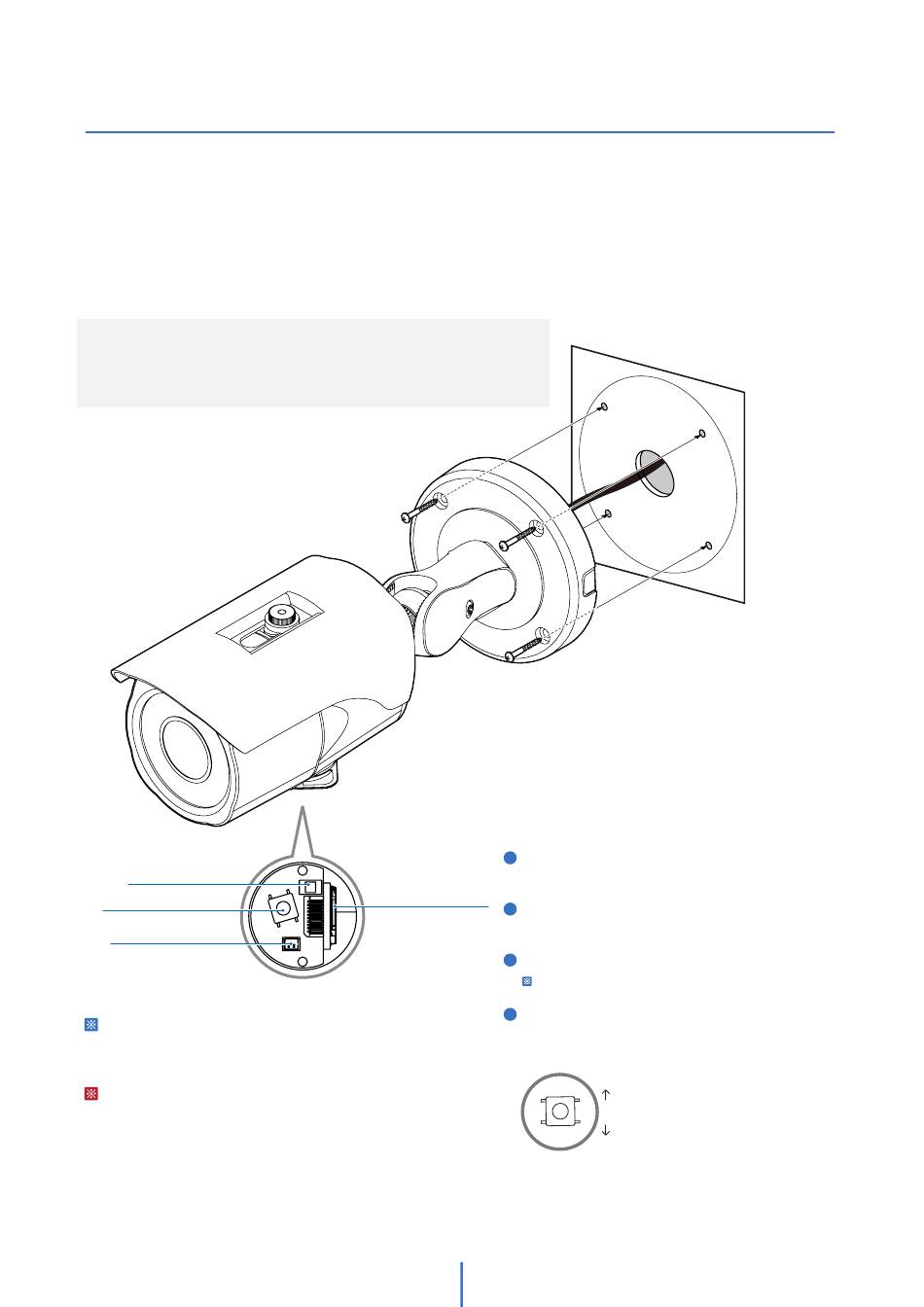

Using the Template sheet, make the cabling hole on
1
the wall/ceiling.
SD Card Slot
Connect the network cable, power cable respectively.
2
See the section 'Installation - Cabling' for details.
Fix the camera on the wall/ceiling by screw provided.
3
Loosen the Pan/Tilt stoper screw a litte before ÿxing the camera.
By using the test video cable, check the screen during
4
installation. You can adjust the zoom ratio using the
T-W jog button.
WIDE
TELE
8
Zoom Out
Zoom In
