NETWORK CONNECTION*

Two Options
Use a PoE-enabled switch to connect data and power through a single cable
and begin viewing and recording images instantly. A non-PoE switch will
require an adaptor for power transmission.
1.
Using a PoE-Enabled Switch

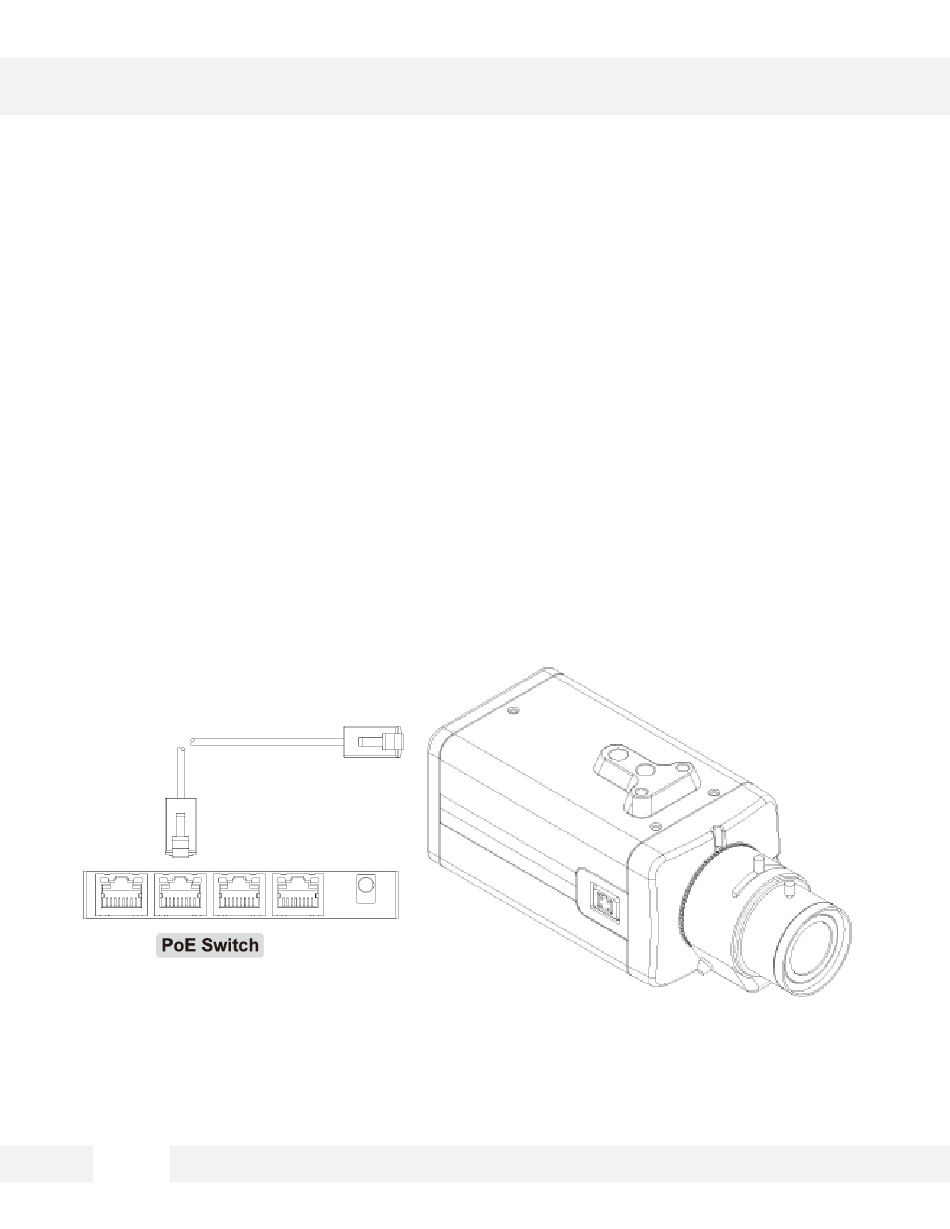

The MEGAPIX Camera is PoE-Compliant, allowing transmission of power and data via a single Ethernet cable. PoE
eliminates the need for the different cables used to power, record, or control the camera. Follow the illustration below to
connect the camera to a PoE-enabled switch using an Ethernet cable.
8
