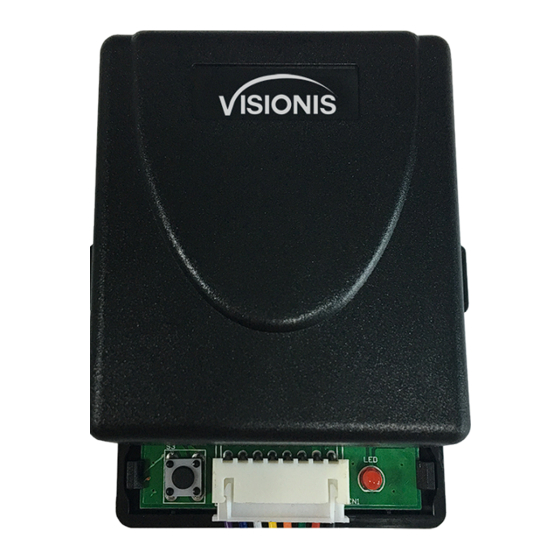

- Page 1 Two Channels Receiver 433mhz VIS-8007-433 USER MANUAL For support: sales@visionistech.com...
-
Page 2: Specifications
The VIS-8007-433 RF receiver can be used to control all sorts of Electrical devices such as Garage Door Openers, Lights, Motorized Gates, Mag Locks, Electric Strikes, Lifts and many more devices. -
Page 3: Important Notes
INSTRUCTIONS TO PROGRAM A NEW TRANSMITTER ( REMOTE CONTROL) Each VIS-8007-433 Visionis receiver can program up to 50 transmitters (remotes) (VIS-8008 -433). Before you program this function make sure you have one of your remotes on hand. Now press the “Learning Button” once and release it right away. Then immediately press the button on the remote one time and release it. -
Page 4: Wiring Diagram
ON/ Off Toggle Function (L): This function works exactly like an on/off switch. When the Transmitter (remote) button is pressed once, the receiver turns on. When the transmitter (remote) is pressed again the relay turns off. Latch: Press transmitter button A, the receiver relay A is on, Press transmitter button B, the receiver relay A will stop work. - Page 5 DIFFERENT TYPE OF APPLICATION Positive Output Negative Output Positive Power Sources Negative Power Sources Positive Power Output Negative Power Output Power Power Typical N.C. Application Typical N.O. Application Magnetic locks Magnetic locks 12VDC 12VDC N.O. Application with independent N.C. Application with independent Power Sources Power Sources Magnetic locks...
